USED LUWA LN-0012 B

Manufacturer Info
Luwa is a globally recognized manufacturer of thin film evaporators, wiped film evaporators, and thermal separation systems used in chemical, pharmaceutical, food, and specialty processing industries. Luwa evaporators are engineered for efficient evaporation, concentration, distillation, and solvent recovery under vacuum and controlled thermal conditions.
Description

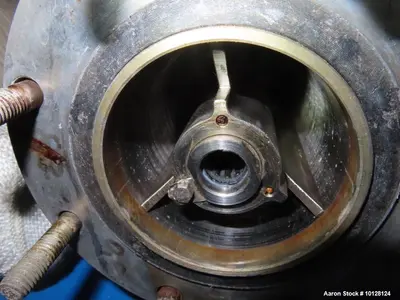

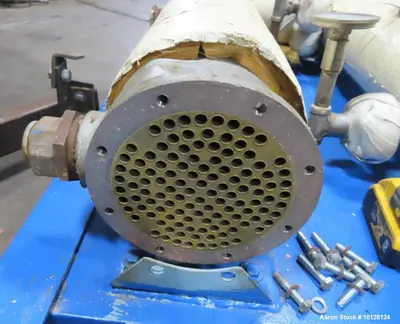

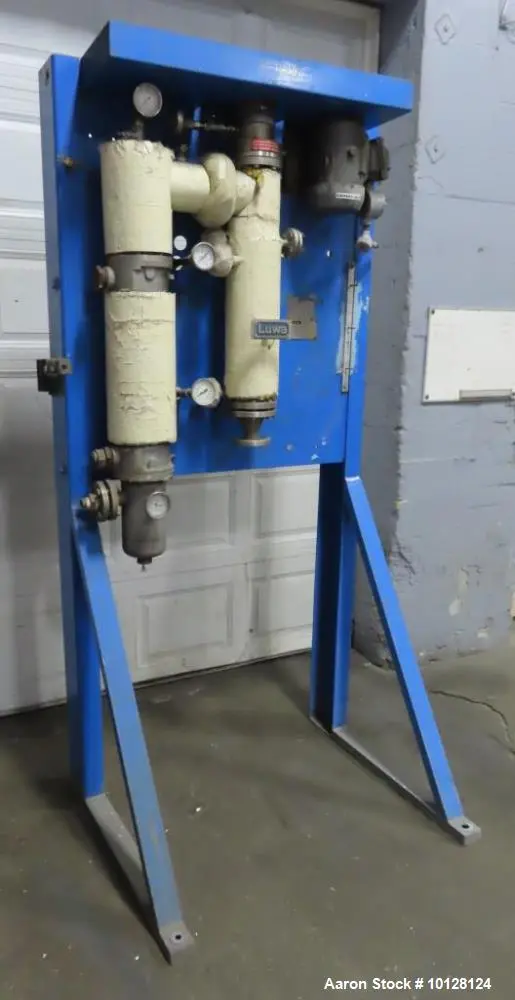

Used Luwa type LN-0012 B vertical thin film evaporator package with approximately 1.4 sq. ft. heat transfer surface area. The evaporator is internally rated from atmospheric pressure to full vacuum, with a jacket rated for 245 PSIG at 350°C. Total evaporator volume is approximately 0.166 cu. ft. Unit is equipped with a 1.5 HP motor and mounted on a painted carbon steel frame. Requires 230/460 VAC, 3 phase electrical supply. Serial number 0012/83.
Specifications

Manufacturer: Luwa
Model: LN-0012 B
Type: Vertical Thin Film Evaporator
Heat Transfer Area: 1.4 Sq. Ft.
Internal Pressure Rating:

Atmospheric Pressure to Full Vacuum

Jacket Rating:

245 PSIG
350°C

Total Evaporator Volume: 0.166 Cu. Ft.
Motor Size: 1.5 HP
Mounting Frame: Painted Carbon Steel
Electrical Requirement: 230/460 VAC
Phase: 3 Phase

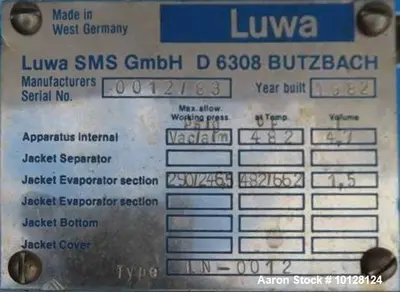

Serial Number: 0012/83
Condition: Used

Applications

Solvent recovery
Product concentration
Vacuum evaporation
Heat-sensitive product processing
Distillation processes
Chemical processing
Pharmaceutical processing
Food ingredient concentration
Specialty chemical production
Pilot plant operations

Products This Would Be Used For

Solvents
Resins
Polymers
Pharmaceutical intermediates
Heat-sensitive chemicals
Food extracts
Oils
Specialty coatings
Adhesives
Fine chemicals
