USED CHICAGO BLOWER SIZE 365

Manufacturer Info
Chicago Blower Corporation manufactures industrial centrifugal fans and blowers for demanding air movement and ventilation applications. Their heavy-duty centrifugal blowers are commonly used in manufacturing plants, dust collection systems, pollution control equipment, and industrial process air systems.
Description

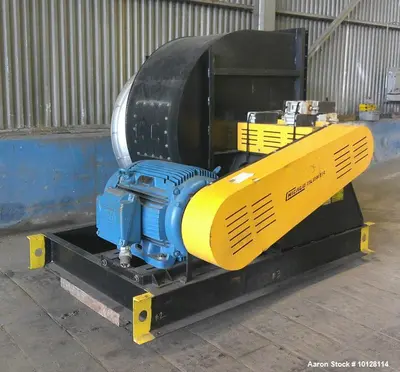

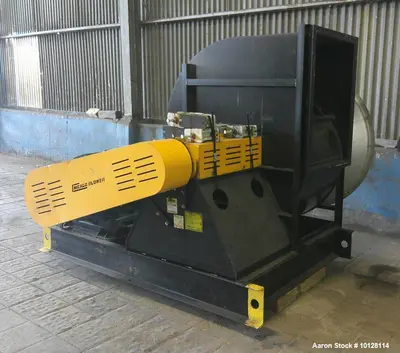

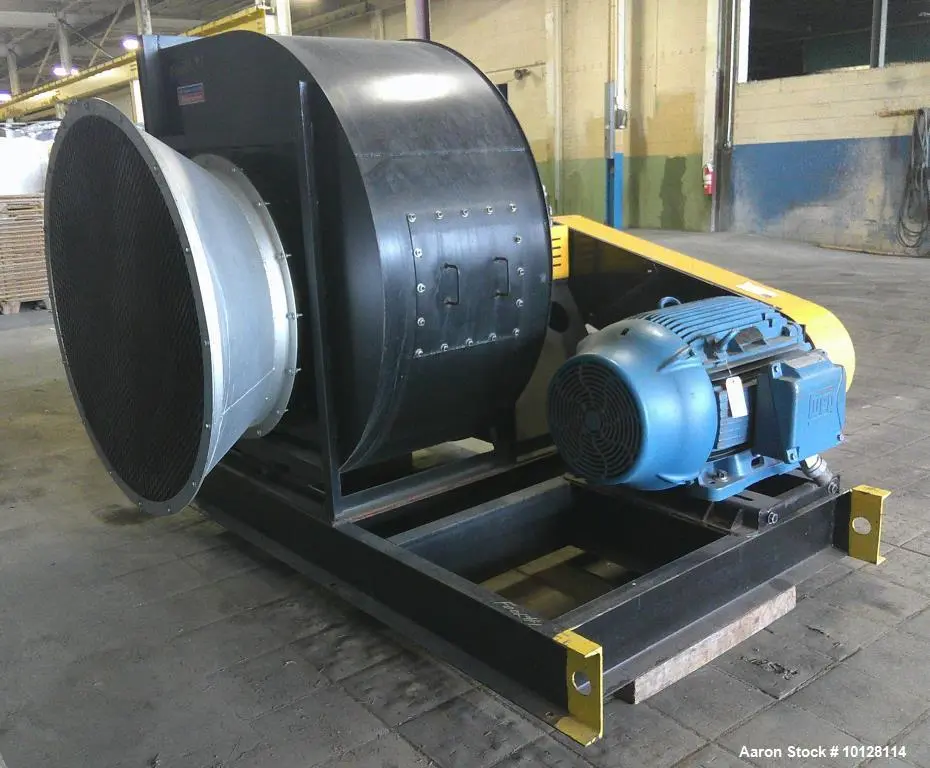

Used Chicago Blower centrifugal fan blower, Size 365, rated for up to 36,000 ACFM at 15.5" WG static pressure. Unit features a 40" diameter inlet with cone transition to 54" diameter and a 40" x 28" outlet. Driven by a 125 HP motor requiring 460 VAC, 3 phase electrical service. Serial number 308228. Designed for high-capacity industrial airflow and process ventilation applications.
Specifications

Manufacturer: Chicago Blower
Type: Centrifugal Fan / Blower
Size: 365

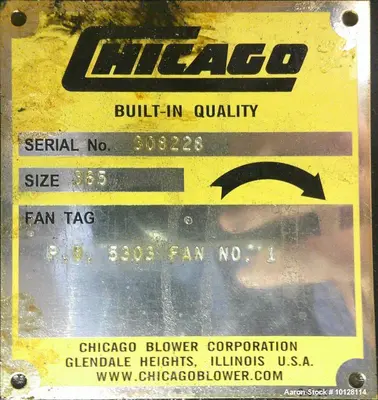

Serial Number: 308228
Airflow Capacity: Up to 36,000 ACFM
Static Pressure: 15.5" WG
Inlet Size: 40" Diameter
Inlet Cone Transition: 54" Diameter
Outlet Size: 40" x 28"

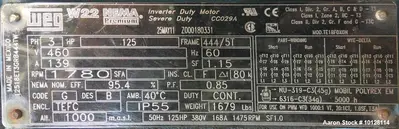

Motor: 125 HP
Electrical: 460 VAC
Phase: 3 Phase
Overall Dimensions:

68" Wide
100" Tall
122" Long

Condition: Used

Applications

Industrial ventilation
Dust collection systems
Process air handling
Air pollution control
Combustion air supply
Drying systems
Pneumatic conveying
Industrial exhaust systems
Manufacturing facilities
High-volume HVAC applications

Products This Would Be Used For

Baghouse dust collectors
Cyclone separators
Industrial scrubbers
Paint booth exhaust systems
Industrial dryers
Furnace combustion systems
Material conveying systems
Process ventilation systems
Air filtration systems
Industrial oven exhaust
