USED 1996 Harrison M390

15" Swing 50" Centers Harrison M390 ENGINE LATHE, Inch/Metric, Acu-Rite DRO, 3&4 Jaw, Steady,7.5 HP

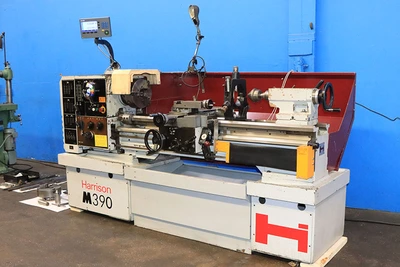

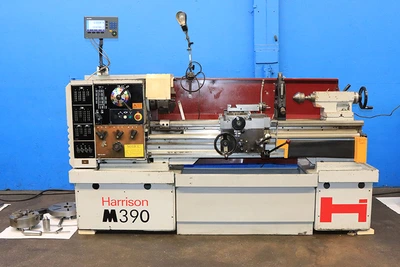

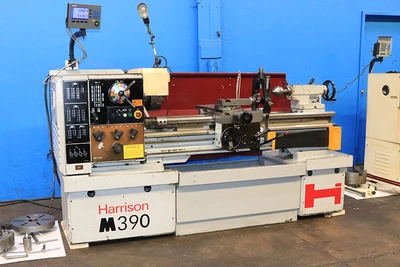

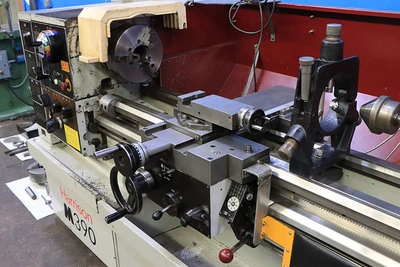

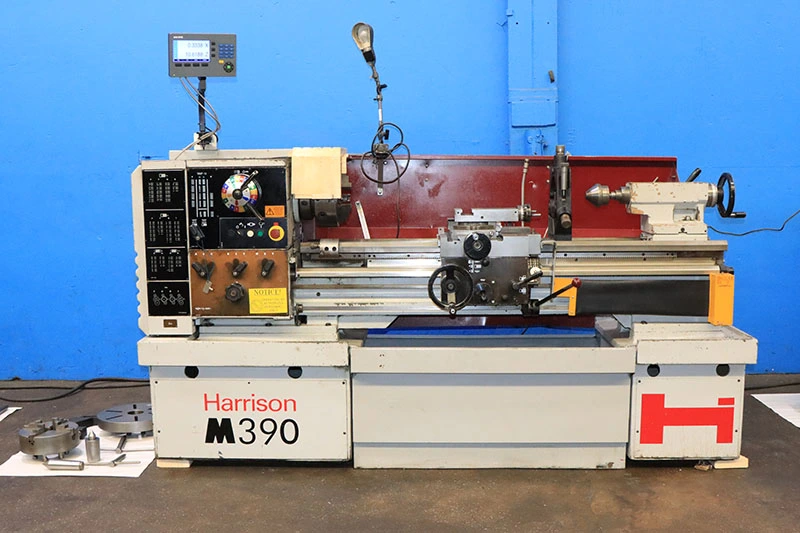

15"/23" x 50" HARRISON GAP BED ENGINE LATHE

MODEL: M390,  S/N: G70118, MFG: 1996

SPECIFICATIONS:

SWING OVER BED .......................... 15.7"

SWING IN REMOVEABLE GAP ................. 23"

SWING OVER CROSS SLIDE .................. 9.7"

DISTANCE BETWEEN CENTERS ................ 50"

HOLE THROUGH SPINDLE .................... 2.125"

SPINDLE NOSE ............................ D1-6 CAMLOCK

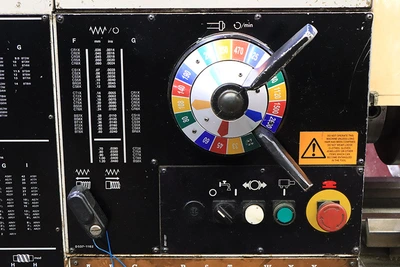

SPINDLE SPEED RANGE (16) ................ 25 - 2000 RPM

ENGLISH THREADING RANGE (56) ............ 2 - 56 TPI

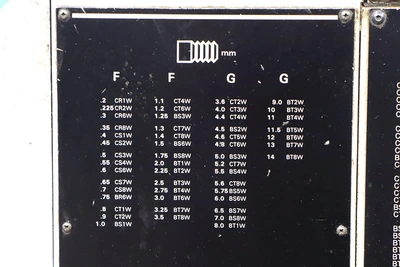

METRIC THREADING (51) ................... .2 - 14 mm

FEED RANGE LONGITUDINAL (42) ............ .0014 - .096 IPR

CROSS FEED 1/2 OF LONGITUDINAL SETTING

WIDTH OF BED ............................ 12.5"

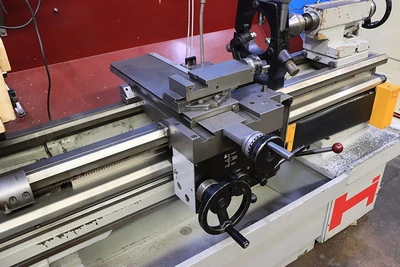

CROSS SLIDE TRAVEL ...................... 9.8"

TOP SLIDE TRAVEL ........................ 5.1"

TAILSTOCK SPINDLE TRAVEL ................ 5.5"

TAILSTOCK SPINDLE TAPE .................. #5MT

APPROX DIMENSIONS ....................... 99"L x 49"W x 51"H

APPROX WEIGHT ........................... 3500 LBS

EQUIPPED WITH:

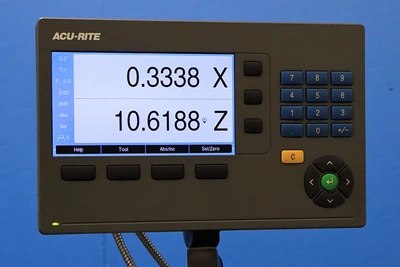

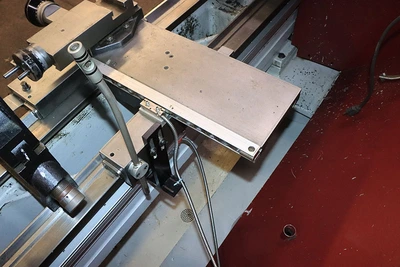

ACU-RITE DIGITAL READOUT

10" 3-JAW BUCK CHUCK

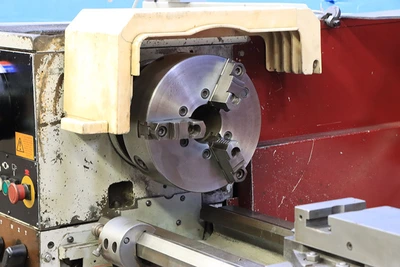

10" 4-JAW CHUCK

FACEPLATE

ROLLER TYPE STEADY REST

FOLLOW REST

HEADSTOCK CENTER SLEEVE & CENTER

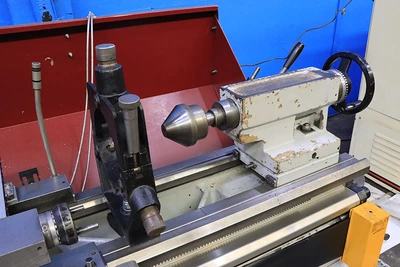

DEAD CENTER FOR TAILSTOCK

LIVE CENTER FOR TAILSTOCK

MICROMETER CARRIAGE STOP

THREAD DIAL INDICATOR

COOLANT SYSTEM WITH REMOVABLE CHIP PAN

7.5 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
