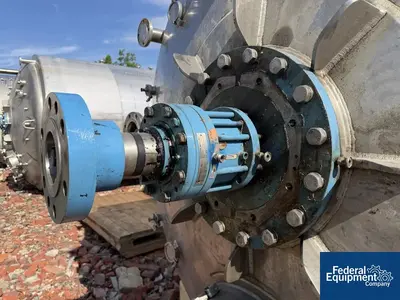

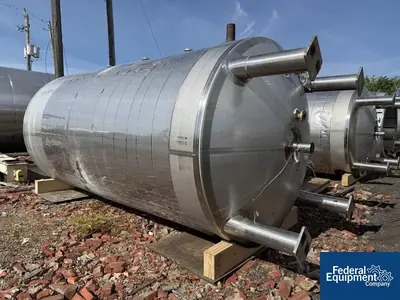

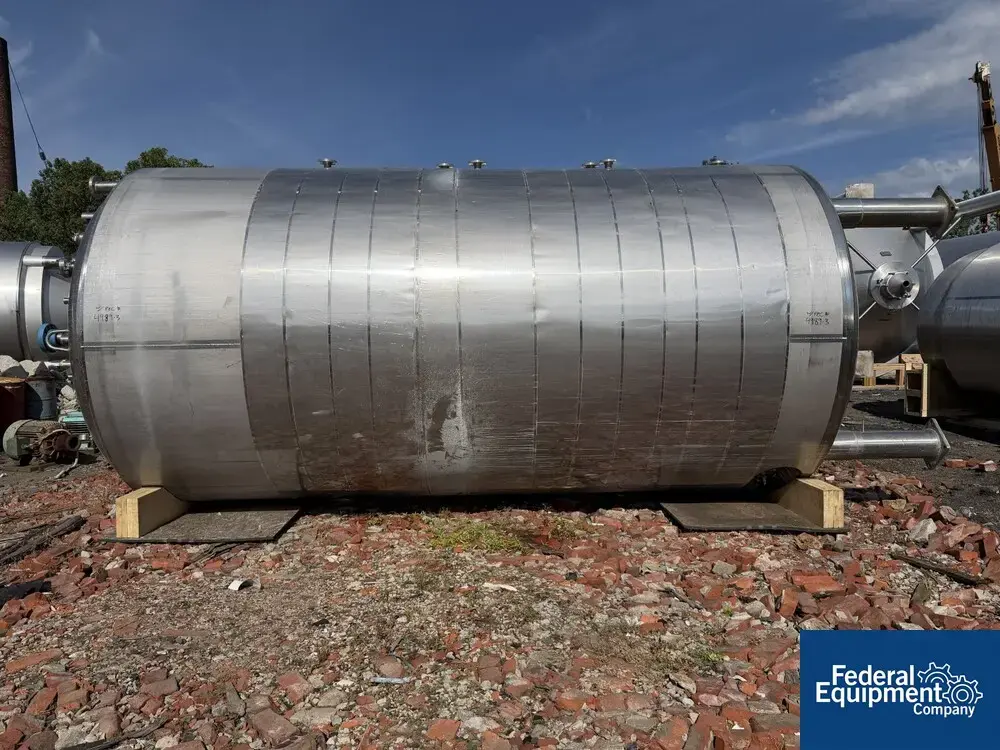

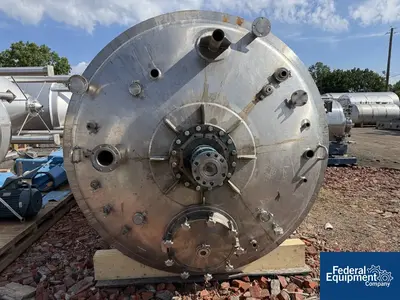

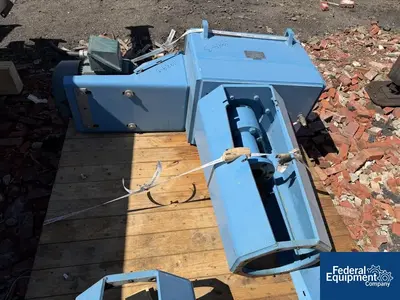

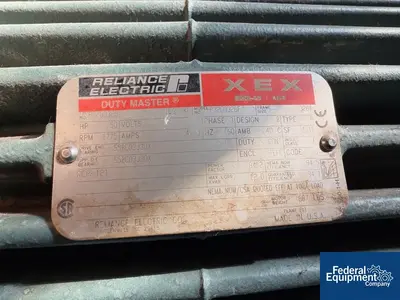

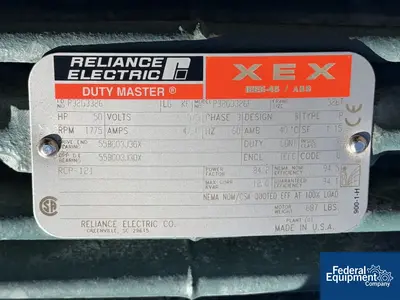

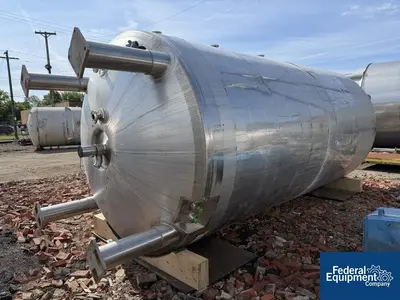

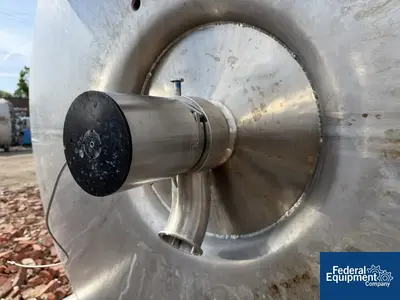

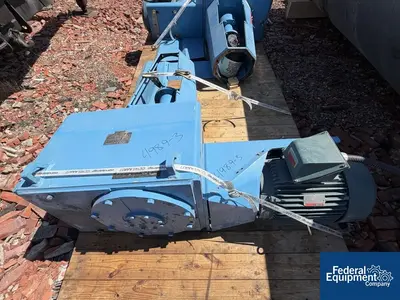

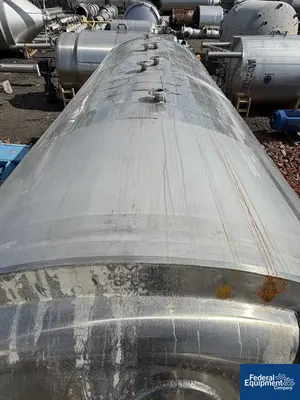

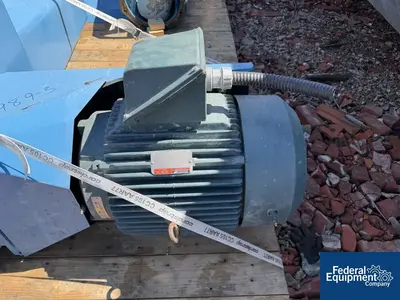

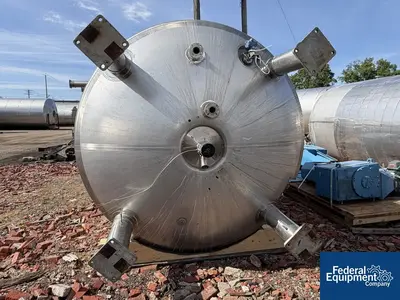

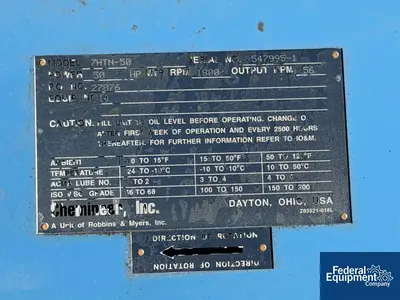

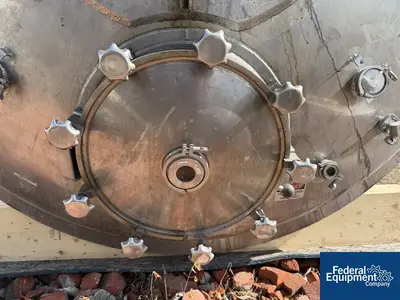

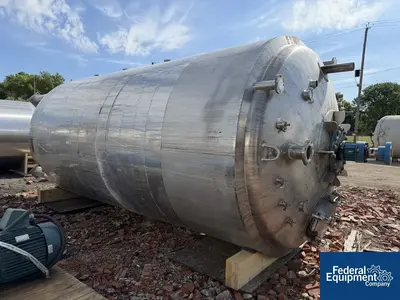

Used 30,000 Liter Feldmeier Reactor, 316L stainless steel construction, approximately 102" inner diameter x 207" straight side, dish top and bottom, rated for 50 PSI and full vacuum at 302 f, jacketed on bottom and 134" up straight side rated for 100 PSI and full vacuum at 302 f, 50 hp Chemineer agitator drive with mechanical seal, model 7HTN-50, (3) tier agitator, side baffles, on legs, serial# S40203, national board# 2990, built 2004.
Capacity (Gallons): 7926
Jacketed: True
Serial Number: S40203
Year of Construction: 2004
Vacuum Rated: True
Agitated: True
Jacket Pressure: 100

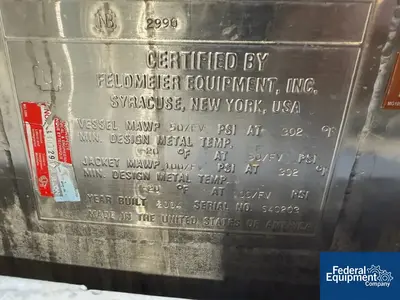

National Board Number: 2990
Stainless Steel Grades: 316L
Drawings: True
National Board: True
Internal Pressure (PSI): 50
Material of Construction: Stainless Steel
