USED 2018 TAKISAWA LA-250YS
Overview
Description

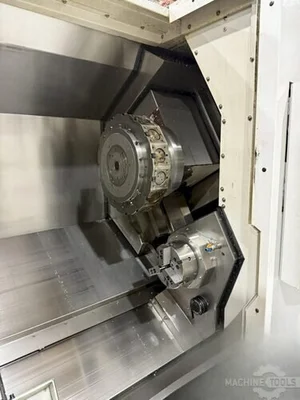

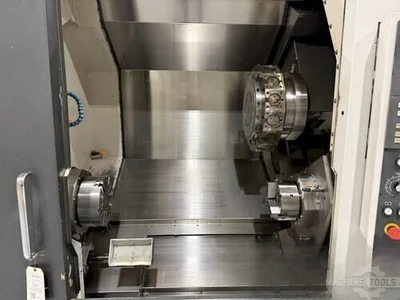

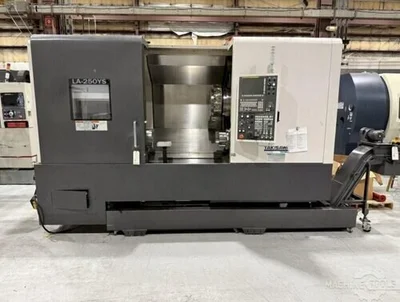

Takisawa LA-250YS CNC Lathe (2018)
Specifications
| Swing | 23.6" | 599.44 mm |
|---|---|---|
| Machining Length | 29.5" | 749.3 mm |
| # Axis | 4 | 4 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 15.75" | 400.05 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
General Info
Stock #: 173260005
Location: MI
Brand: Takisawa
Model: LA-250YS
Year: 2018
Approx. Shipping Weight: 17800 pounds
Approx. Shipping Dimensions: 149" x 73" x 98"
Specifications
Type: Lathes (3-Axis or More)
CNC Control: Yes

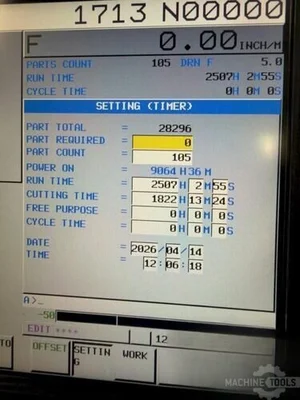

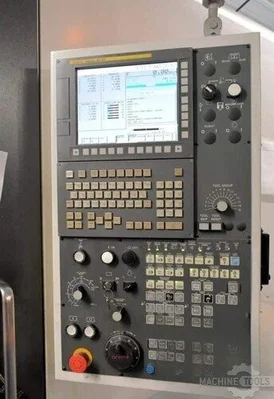

Control Type: Fanuc 0i-TF
# Axis: 6
Swing: 23.6"
Turning Diameter: 14.6"
Center Distance: 43.11"

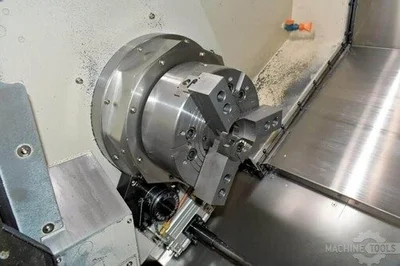

Chuck Size: 10"
Bar Capacity: 3.05"
X Axis Travel: 10.6"
Y Axis Travel: 3.92"
Z Axis Travel: 31.49"
B Axis Travel (Sub Spindle): 28.93"
C1/C2 Axis Index: 0.001°
Rapid Traverse (X/Y/Z): 787/393/797 ipm
Spindle Nose: A2-8
Spindle Speed: 3500 rpm
Main Motor: 30 hp
Tailstock: No
Y Axis: Yes
Live Tooling: Yes
Live Tooling Speed: 5000 rpm
Live Tooling Motor: 5 hp

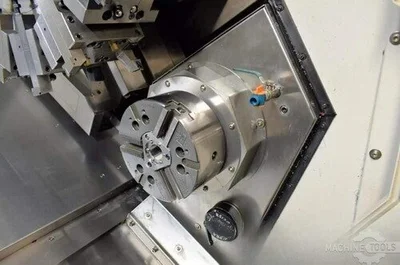

Sub Spindle: Yes
Sub Spindle Chuck: 8"
Sub Spindle Bar Capacity: 2"
Sub Spindle Nose: A2-6
Sub Spindle Speed: 3500 rpm
Sub Spindle Motor: 15 hp

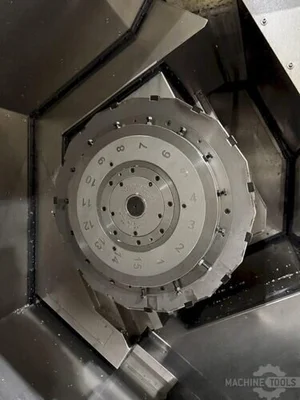

Turret Capacity: 15 Stations
Heavy Duty Box Way Machine: Yes
Equipped With

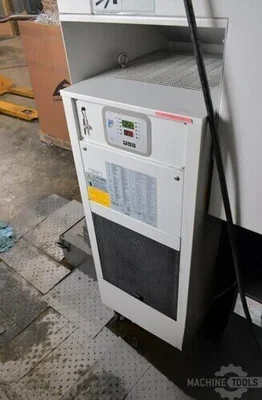

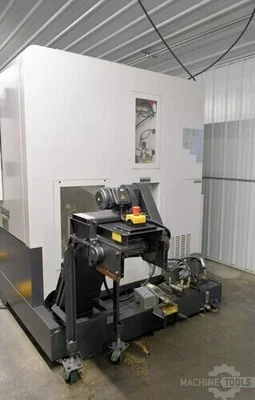

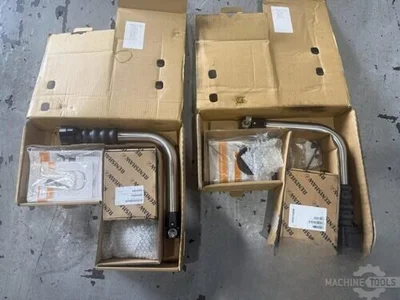

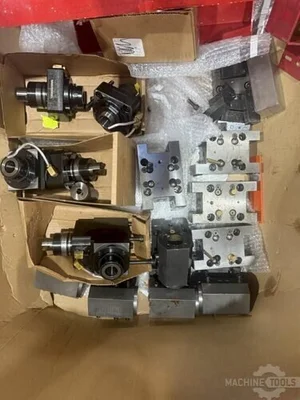

Chip Conveyor, Coolant Tank & Pump, Parts Conveyor, Tool Presetter, Spindle Chiller, Manual Guide i (Conversational Programming), Misc. Static Tooling Available, (2) Straight Live Tool Holders, (2) Right Angled Live Tool Holders
