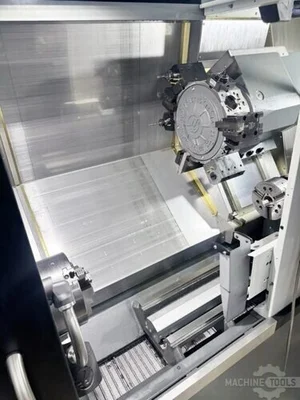

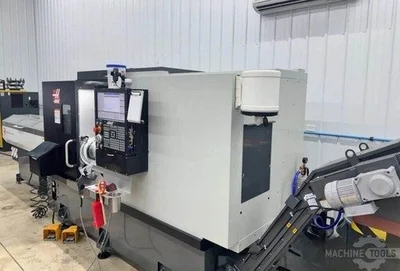

USED 2025 HAAS DS-30Y

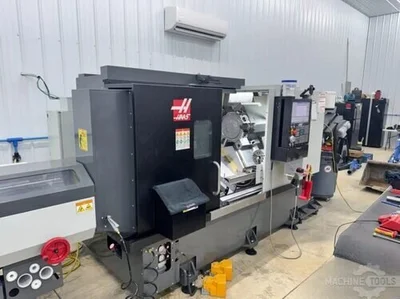

Haas DS-30Y CNC Lathe Multi-axis (2025) w/ Haas Bar Feeder

General Info

Stock #: 173260006
Location: IN
Brand: HAAS
Model: DS-30Y
Year: 2025

Specifications

Max Cutting Diameter: 13.75"
Max Cutting Length: 32.5"
X-Axis Travel: 9.4"
Y-Axis: Yes
Y-Axis Travel: +/- 2"
Z-Axis Travel: 32.5"
Chuck Size: 10"
Bar Capacity: 3"
Spindle Bore: 3.5"
Spindle Nose: A2-6
Spindle Motor: 30 hp
Spindle Speed: 4500 RPM
Sub Spindle: Yes

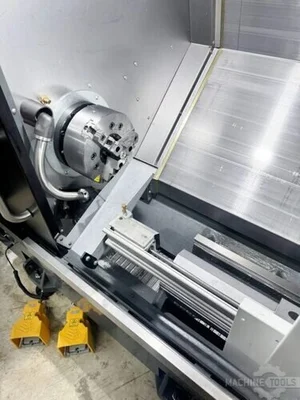

Sub Spindle Chuck Size: 8"
Sub Spindle Nose: A2-5
Sub Spindle Motor: 15 hp
Sub Spindle Speed: 4000 RPM

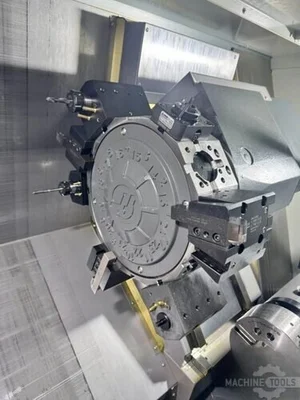

Turret Capacity: 24 Stations
Turret Type: BMT65
Live Milling: Yes
Live Milling Speed: 6000 RPM

Equipped With

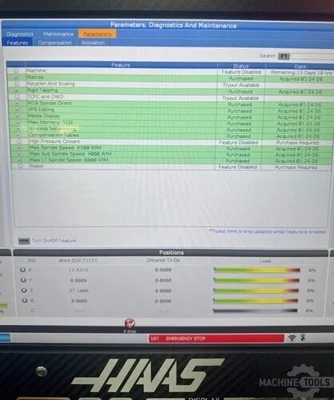

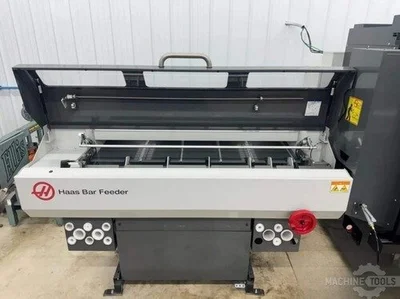

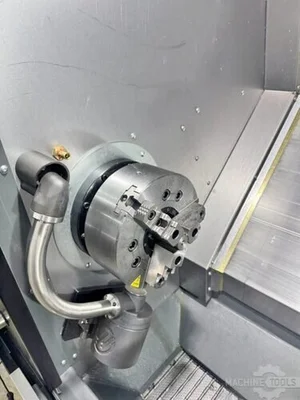

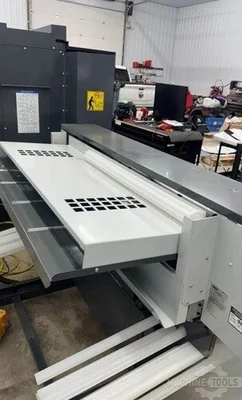

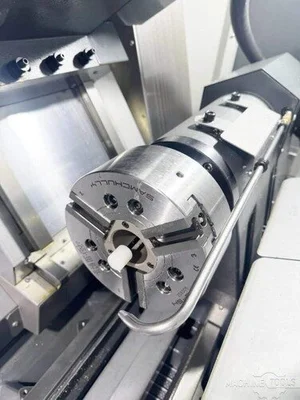

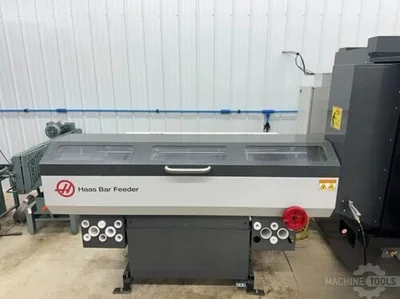

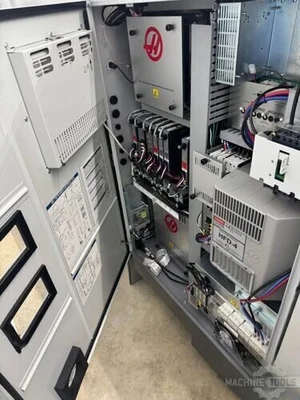

HAAS NEXTGEN CONTROL, HAAS BAR FEEDER (V2), 10” 3-Jaw Autogrip (3H-H10) Hydraulic Chuck (Main), 8” 3-Jaw Samchully (HS-08) Hydraulic Chuck (Sub), Tool Presetter, Parts Catcher, Chip Conveyor, Jet Air-Blast (Main & Sub), CNC Control Cabinet Cooler, Chip Tray Filter Kit, Coolant Sanitizer, Visual Part Programming System (VPS Editing), Media Display M-Code (M130), Spindle Orientation, Rigid Tapping, Macros, Ethernet, USB Port, 1GB Memory, Haas Connect, Wifi Connectivity, Phone Charging Stand, (2) Straight Live Tool Holders, (1) Right Angle Live Tool Holder, An Assortment of Spindle Liners

Additional Info

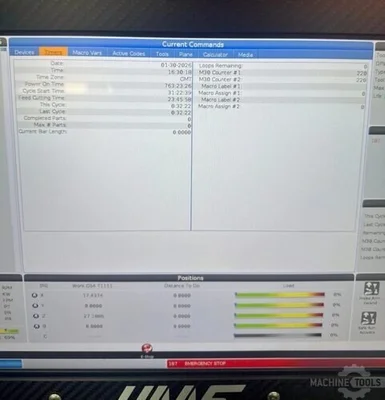

Like-New, only 23 Cutting Hours as of March 2026, In plant, under power, available for immediate inspection & purchase
