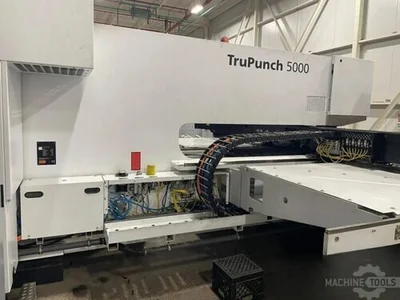

USED 2016 TRUMPF TRUPUNCH 5000 LARGE FORMAT

Trumpf Trupunch 5000 Large Format Punching Machine (S12), New (2016)

General Info

Stock #: 113260017
Brand: TRUMPF
Model: TRUPUNCH 5000 LARGE FORMAT
Year: 2016

Specifications

Max. Punching Force: 25 Tons
Construction: C-Frame
Working Range X-Axis: 120"
Working Range Y-Axis: 61"
Max. Sheet Thickness: 0.31"
Max. Workpiece Weight: 617 lbs
Number of Tools: 21
Speed X-Axis: 3937 IPM
Speed Y-Axis: 2362 IPM
Speed Simultaneous: 4567 IPM
Speed C-Axis: 500 RPM
Max. Stroke Rate Punching: 1350 SPM
Max. Stroke Rate Marking: 3000 SPM
Multitool Tool Changing Time: 0.3 sec
Part Removal Max. Part Size (Flap, Punching): 19.69" x 19.69"
Part Removal Max. Part Size (Fixed Chute, Punching): 3.1" x 1.97"
Approx. Dimensions: 321"(L) x 322"(W) x 82"(H)

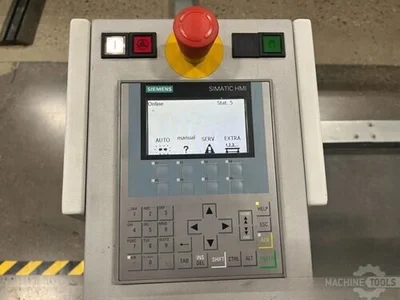

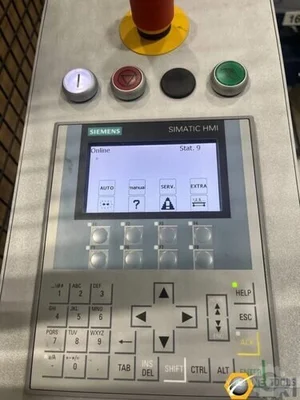

Control: Siemens Sinumerik 840D

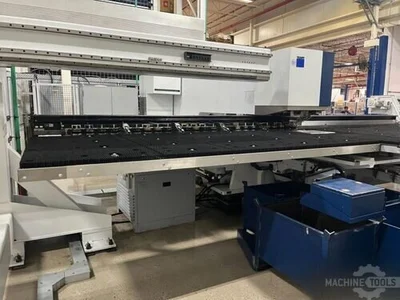

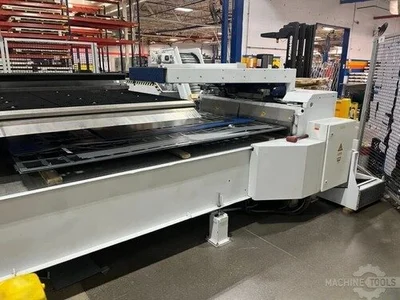

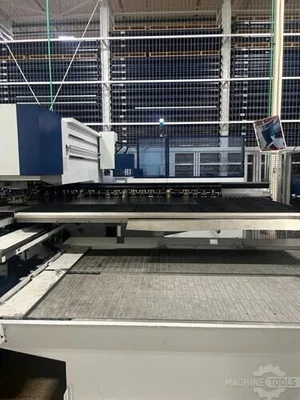

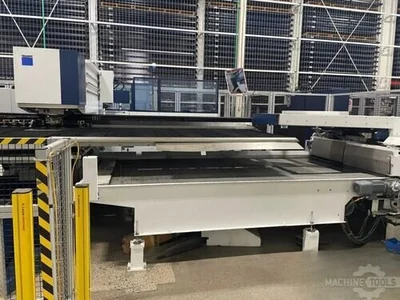

Table Size: 60" x 120" Brush Tables

Equipped With

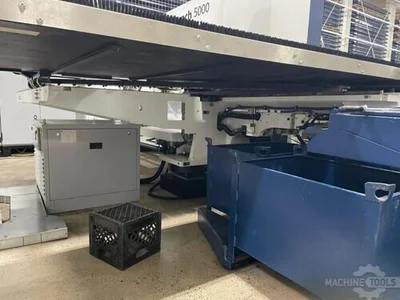

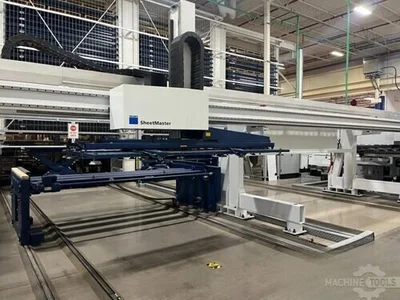

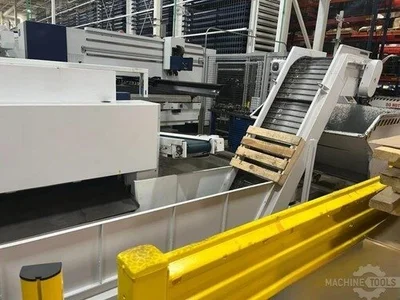

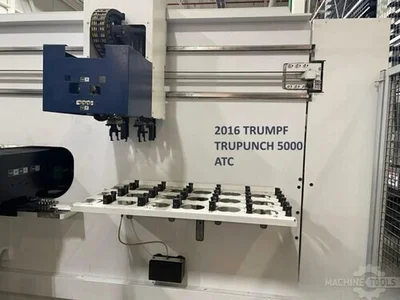

Siemens Sinumerik 840d Control, Large Format 60" X 120" Brush Tables, Active Die, 18 Station Tool Toolmaster Linear Atc, Shearmaster, Sheetmaster, Intergrated Flattening, Multi Shear, Multi Bend, Tapping Drive, High Speed Marking, Engraving, Wheel Technology Function - Forming & Cutting, Adaptive Stroke Calibration, Die Spray Lubrication, Smart Punch Monitoring (Breakage Control For Punch), Softpunch, Stripline, Independent Automatic Clamp Closing, Anti-vibration Islolations Pads, Pneumatic Reposition Cylinders, Chip/Slug Conveyor With Box, Variable Vacuum Slug Removal, Loading/Unloading Aids, Small Parts Blow-out Device, Wireless Operation Point And Mobile-contorl App, Rci Remote Contorl Interface, Sheet Collision Detection, Part Sorting

Additional Info

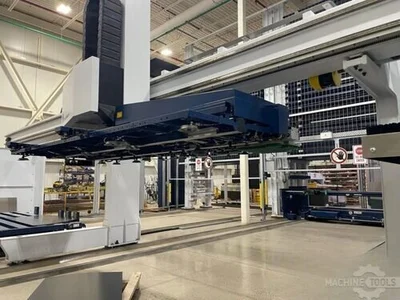

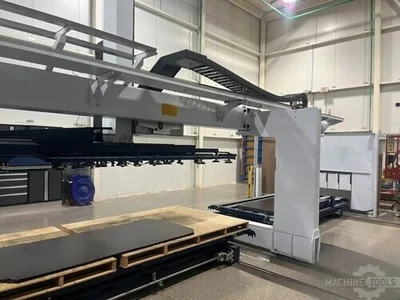

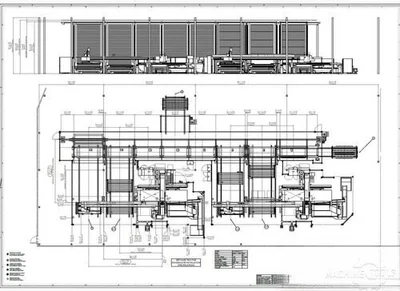

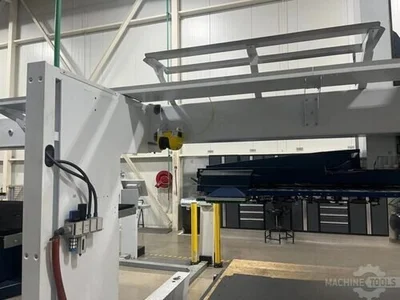

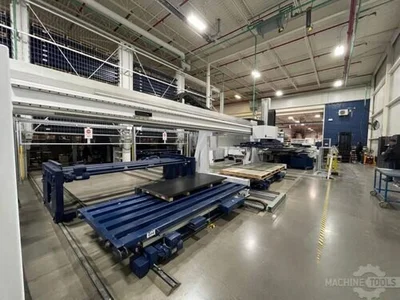

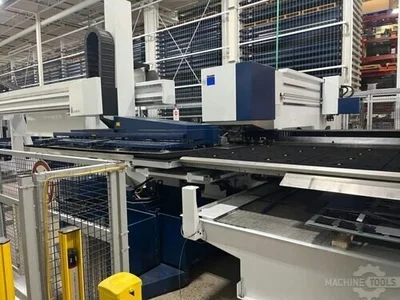

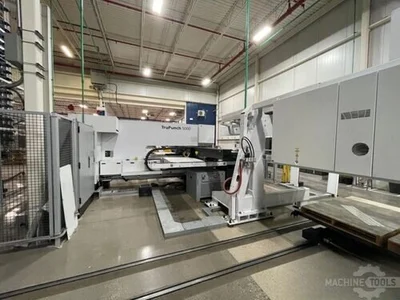

Price includes decommissioning by TRUMPF and loading. Machine being offered as stand-alone unit or as complete system, as seen in photos, consisting of two TRUMPF TruPunch 5000s and 8-tower, 229 pallet, STOPA system. Offers considered for partial STOPA as well.
