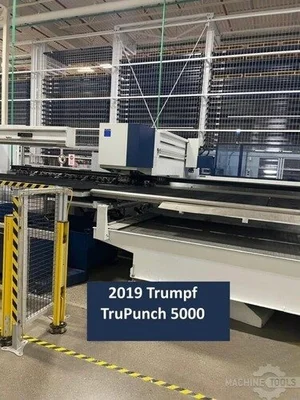

USED 2019 TRUMPF TRUPUNCH 5000 LARGE FORMAT

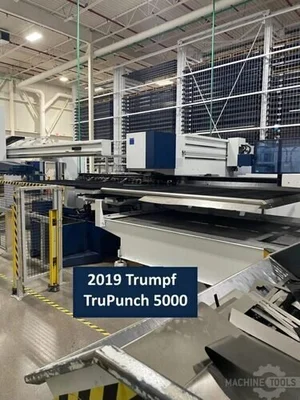

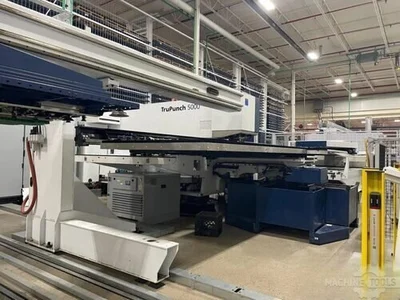

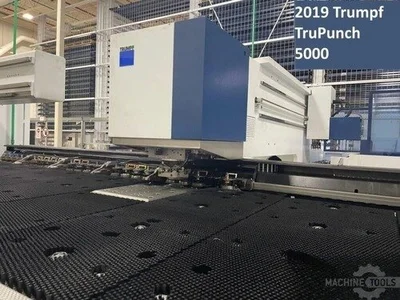

Trumpf Trupunch 5000 Large Format Punching Machine (S12), New: (2019)

General Info

Stock #: 113260018
Brand: TRUMPF
Model: TRUPUNCH 5000 LARGE FORMAT
Year: 2019

Specifications

Tonnage: 25 T
# Turret Stations: 21
Max. Punching Force: 25 Tons
Construction: C-Frame
Working Range X-Axis: 120 in
Working Range Y-Axis: 61 in
Max. Sheet Thickness: 0.31 in
Max. Workpiece Weight: 617 lbs
Number of Tools: 21
Speed X-Axis: 3937 IPM
Speed Y-Axis: 2362 IPM
Speed Simultaneous: 4567 IPM
Speed C-Axis: 500 RPM
Max. Stroke Rate Punching: 1350 SPM
Max. Stroke Rate Marking: 3000 SPM
Multitool Tool Changing Time: 0.3 sec
Max. Part Size (Removal Flap, Punching): 19.69 in x 19.69 in
Max. Part Size (Fixed Chute, Punching): 3.1 in x 1.97 in
Approx. Dimensions: 321 in (L) x 322 in (W) x 82 in (H)

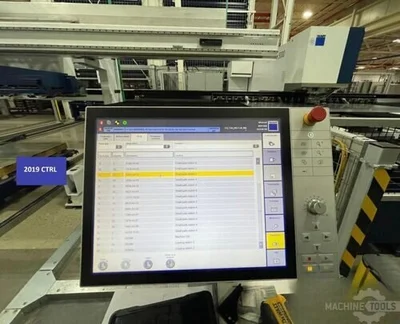

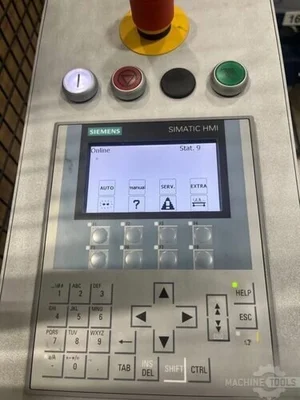

Control: Siemens Sinumerik 840D

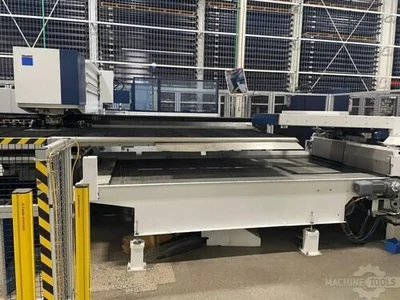

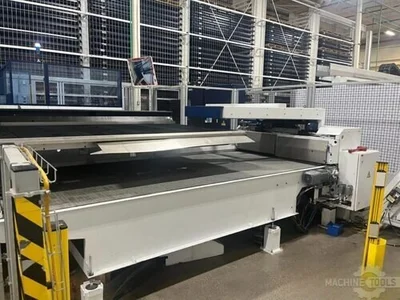

Table Size: 60 in x 120 in Brush Tables

Equipped With

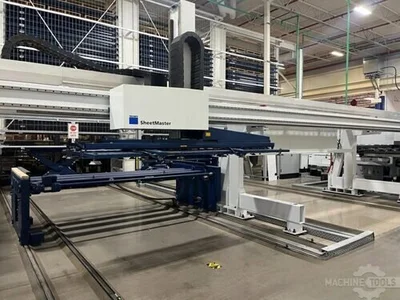

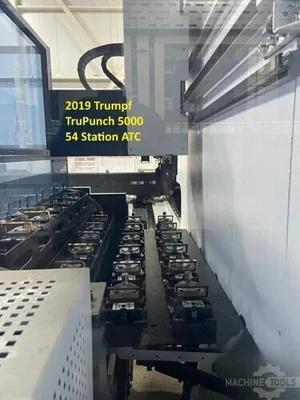

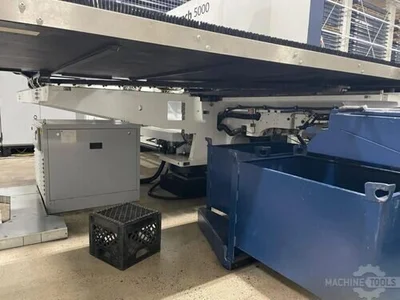

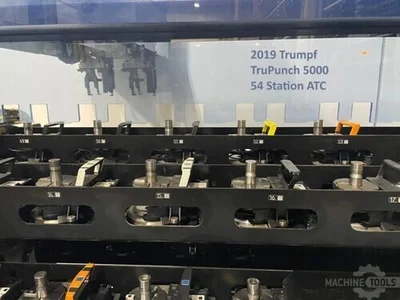

Siemens Sinumerik 840d Control, Large Format 60" X 120" Brush Tables, Active Die, 54 Station Tool Toolmaster Linear Atc, Shearmaster, Sheetmaster, Parallel To Production, Intergrated Flattening, Multi Shear, Multi Bend, Tapping Drive, High Speed Marking, Engraving, Wheel Technology Function - Forming & Cutting, Adaptive Stroke Calibration, Die Spray Lubrication, Smart Punch Monitoring (Breakage Control For Punch), Softpunch, Stripline, Independent And Automatic Clamp Closing, Anti-vibration Islolations Pads, Pneumatic Reposition Cylinders, Chip/Slug Conveyor With Box, Variable Vacuum Slug Removal, Loading/Unloading Aids, Small Parts Blow-out Device, Wireless Operation Point And Mobile-contorl App, Rci Remote Contorl Interface, Sheet Collision Detection, Part Sorting

Additional Info

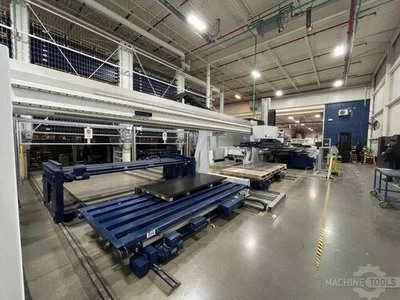

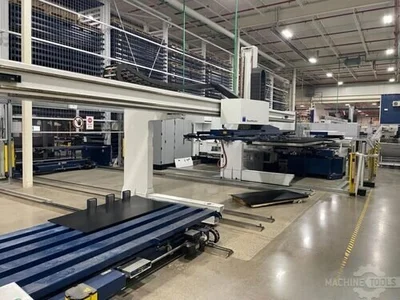

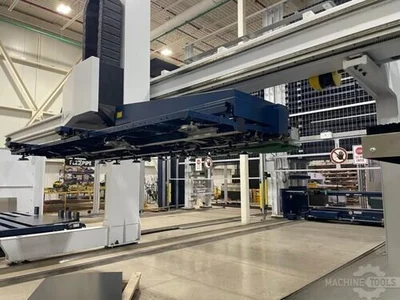

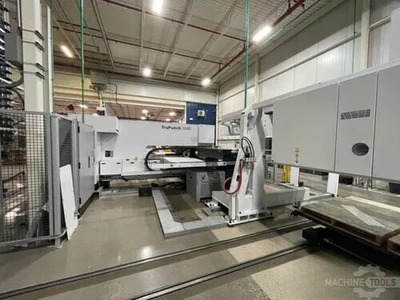

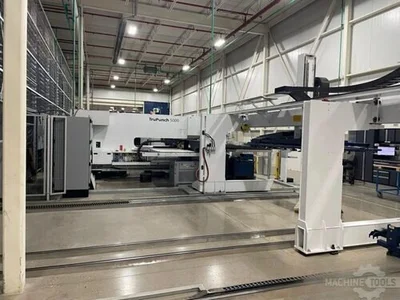

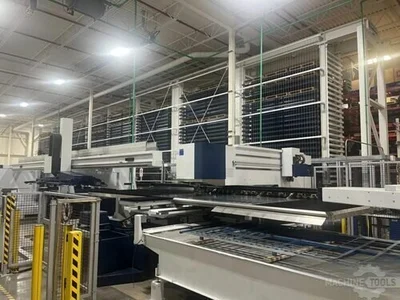

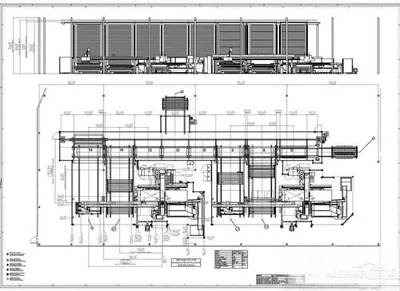

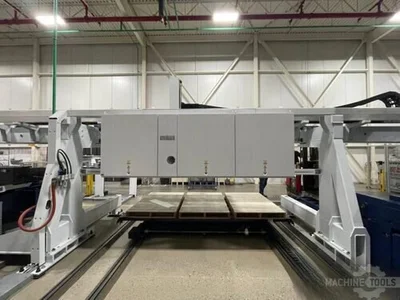

Price includes decommissioning by TRUMPF and loading. Machine being offered as stand-alone unit or as complete system, as seen in photos, consisting of two TRUMPF TRUPUNCH 5000s and 8-tower, 229 pallet, STOPA system. Offers considered for partial STOPA as well.
