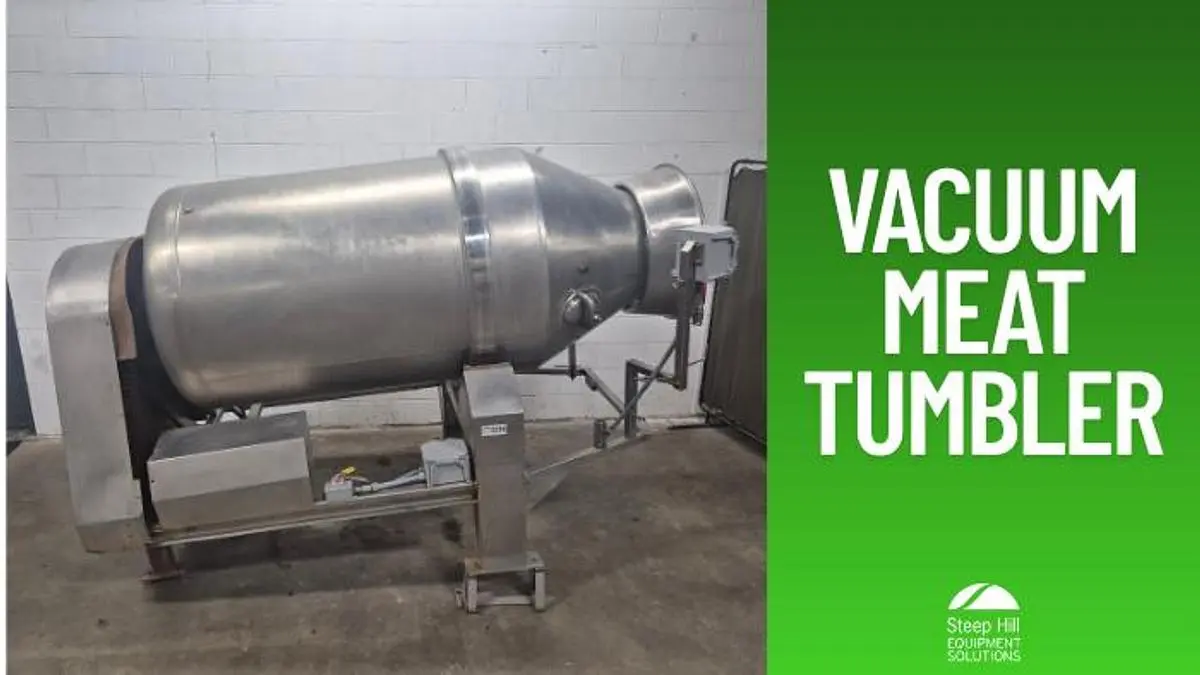

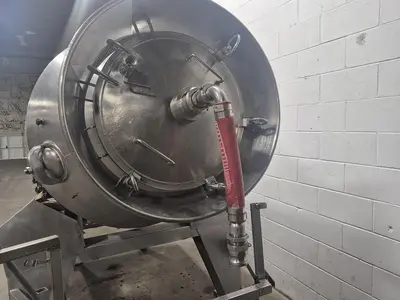

1800L Vacuum Meat Tumbler
Overview
Description
Vacuum Meat Tumbler
An 1800L Vacuum Meat Tumbler is a heavy-duty, industrial-capacity food processing machine designed for large-scale meat processing facilities, central kitchens, and commercial food plants. It uses mechanical tumbling inside a controlled vacuum environment to rapidly infuse marinades, tenderize muscle tissue, and optimize product yield.
Specs:
Capacity: 1800L
Tumbler Length: 64 inches
Tumbler Length Near Opening: 26.5 inches
Length Of Opening: 20 inches
Inside Depth of Tumbler: 42 inches

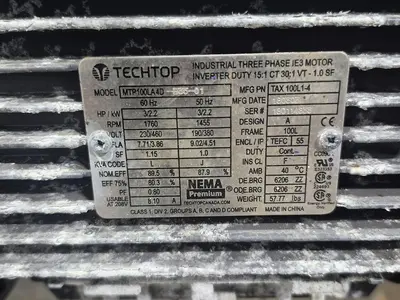

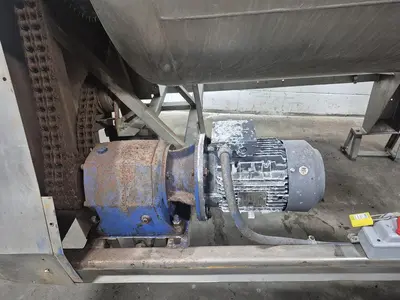

Powered by 3 HP(2.2 kW) Techtop Motor
3-Phase
60 Hz
1760 RPM
7.71/3.86 A

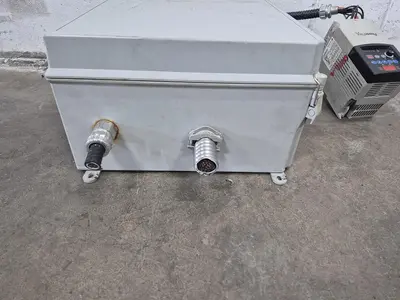

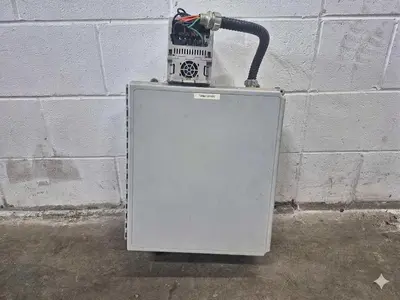

Control Panel Box with Variable Frequency Drive
Specs:

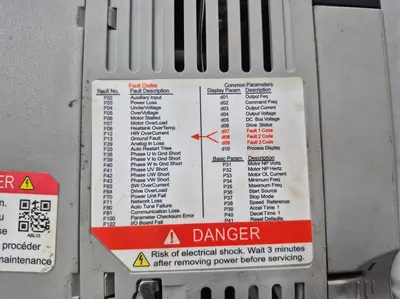

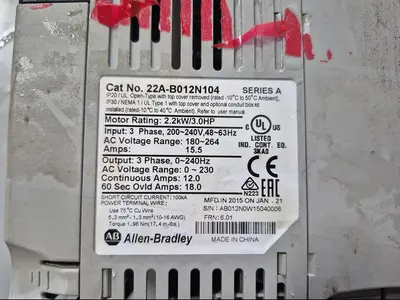

Allen-Bradley PowerFlex 4 Variable Frequency Drive (VFD)
Catalog Number: 22A-B012N104
Series: Series A
Motor Rating: 2.2 kW / 3.0 HP
Input Power: 3-Phase, 200–240V AC, 48–63Hz
Input Voltage: 180–264V AC
Input Amps: 15.5 A
Output Power: 3-Phase, 0–240Hz
Output Voltage Range: 0–230V AC
Continuous Amps: 12.0 A
60-Second Overload Amps: 18.0 A
Short Circuit Rating: 100 kA
Specifications
Location Code: PL/B8 - control box
* Capacity: 1800L
