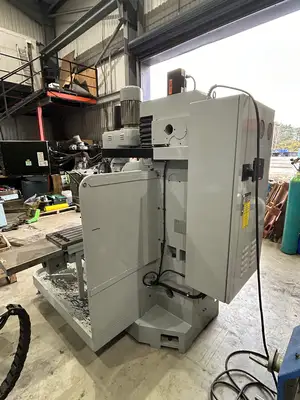

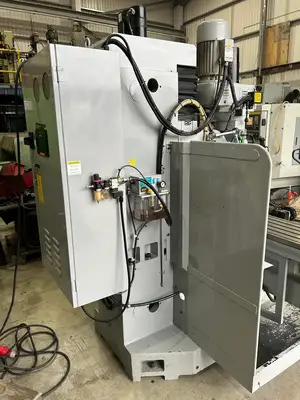

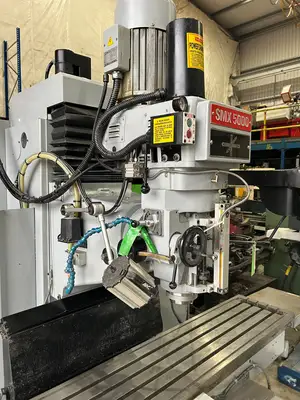

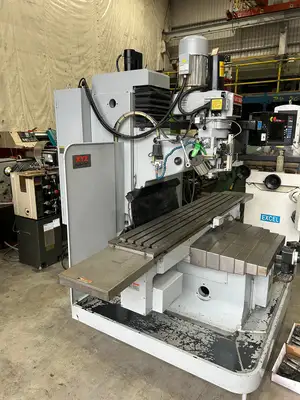

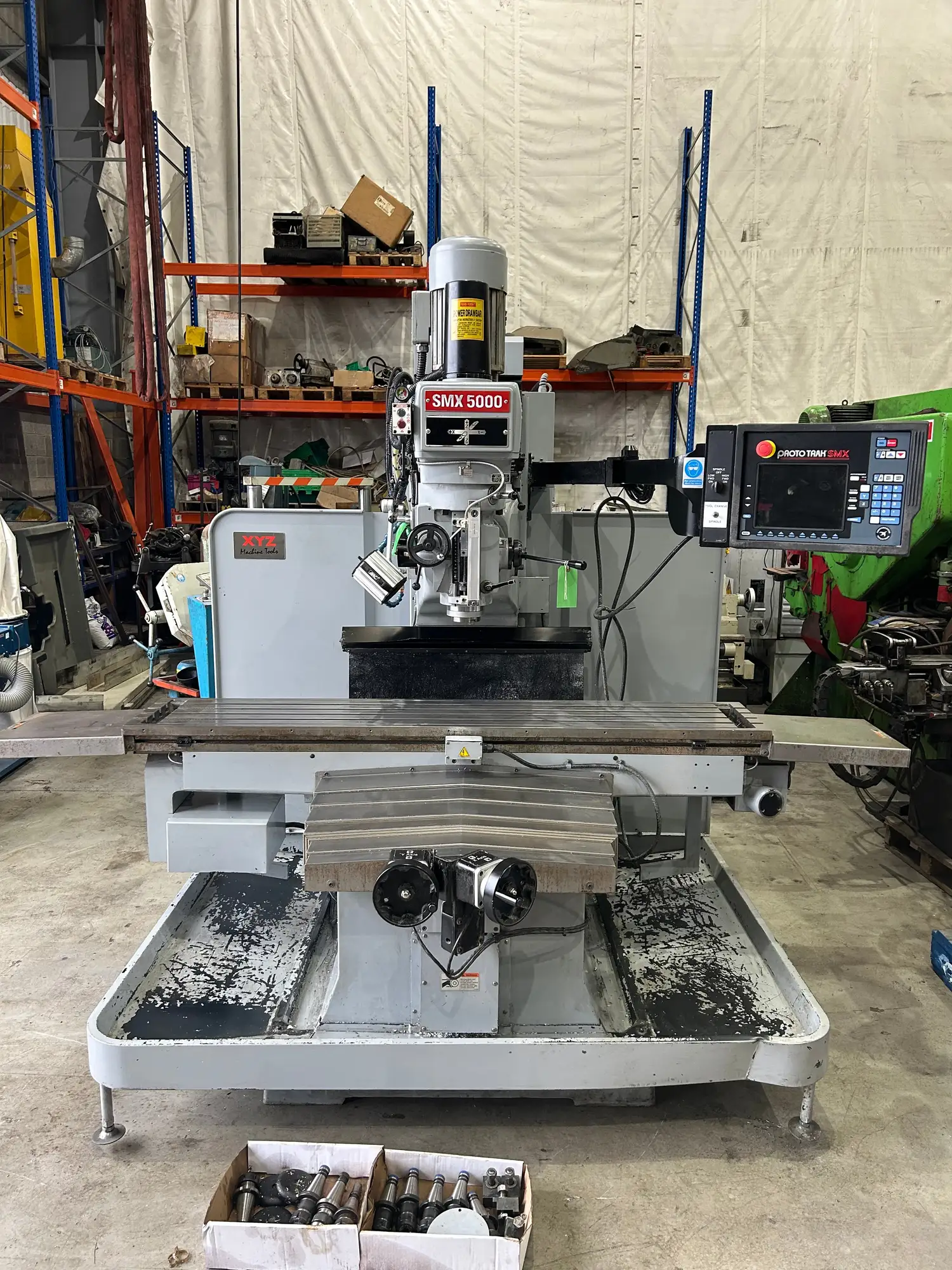

USED XYZ SMX 5000 CNC BED MILL
Overview
Specifications
- Table size 1930mm x 356mm.
- T slots 3 x 15.9mm.
- Travels X/Y/X 1524/596/584mm.
- Quill Diameter 116mm.
- Maximum Quill Travel 140mm.
- Spindle Taper 40 ISO.
- Spindle Speed Range 40 – 5000rpm.
- Spindle Centre to Column Face 610mm.
- Spindle Power Motor 5.75 kW.
- Maximum weight of workpiece 850Kg.
- Machine Dimensions L x W x H 4360mm x 3105mm x 2650mm.
- Approximate weight 3570 kg.
