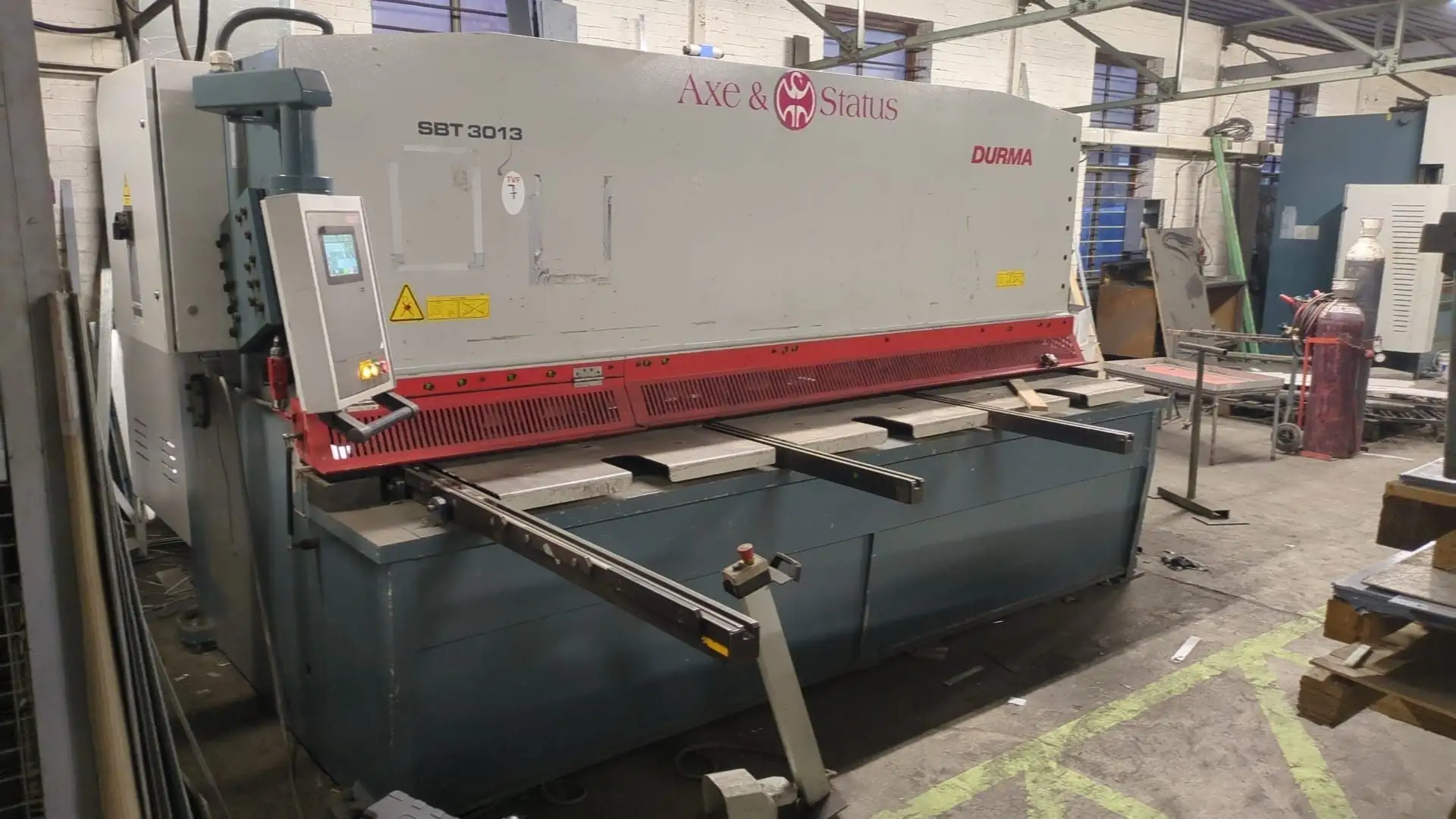

2017 Durma SBT 3013 3m x 13mm Guillotine

Cutting length 3100 mm
Max. thickness - mild steel 13 mm
Max. thickness - stainless steel 8 mm
Gap in side frame 50 mm
Strokes 13 1/min
Cutting angle 1.75 °
Number of downholders 16 pcs.
Pressure of downholder 37 to
Back gauge 1000 mm
Back gauge speed 200 mm/s
Motor power 30 kW
Oiltank 330 l
Support arms 2 pcs.
Table height 840 mm
Table width 600 mm
Table length 3550 mm
Di­men­sions and weight
Length 4280 mm
Width 2300 mm
Total width with support arm und protection fence 3600 mm
Height 2350 mm
Weight 12500 kg
 CE Norm
• D-Touch 7 Touchscreen NC Control Unit- User Friendly
• Throat depth 50 mm
• Ball screw back gauge 1000 mm
• 1 Squaring arm L= 1500 mm, with scale & T-Slot & Tilting stop
• 2 Support arms L=1000 mm, with T-Slot & Tilting stop
• Ball Transfer Tables
• Cutting length – quantity control
• Single Point Blade Clearance Adjustment
• Automatic swing-up backgauge
• Shadow line
• Rubber pads for hold downs
• Top 2 side & Bottom blades with 4 side
