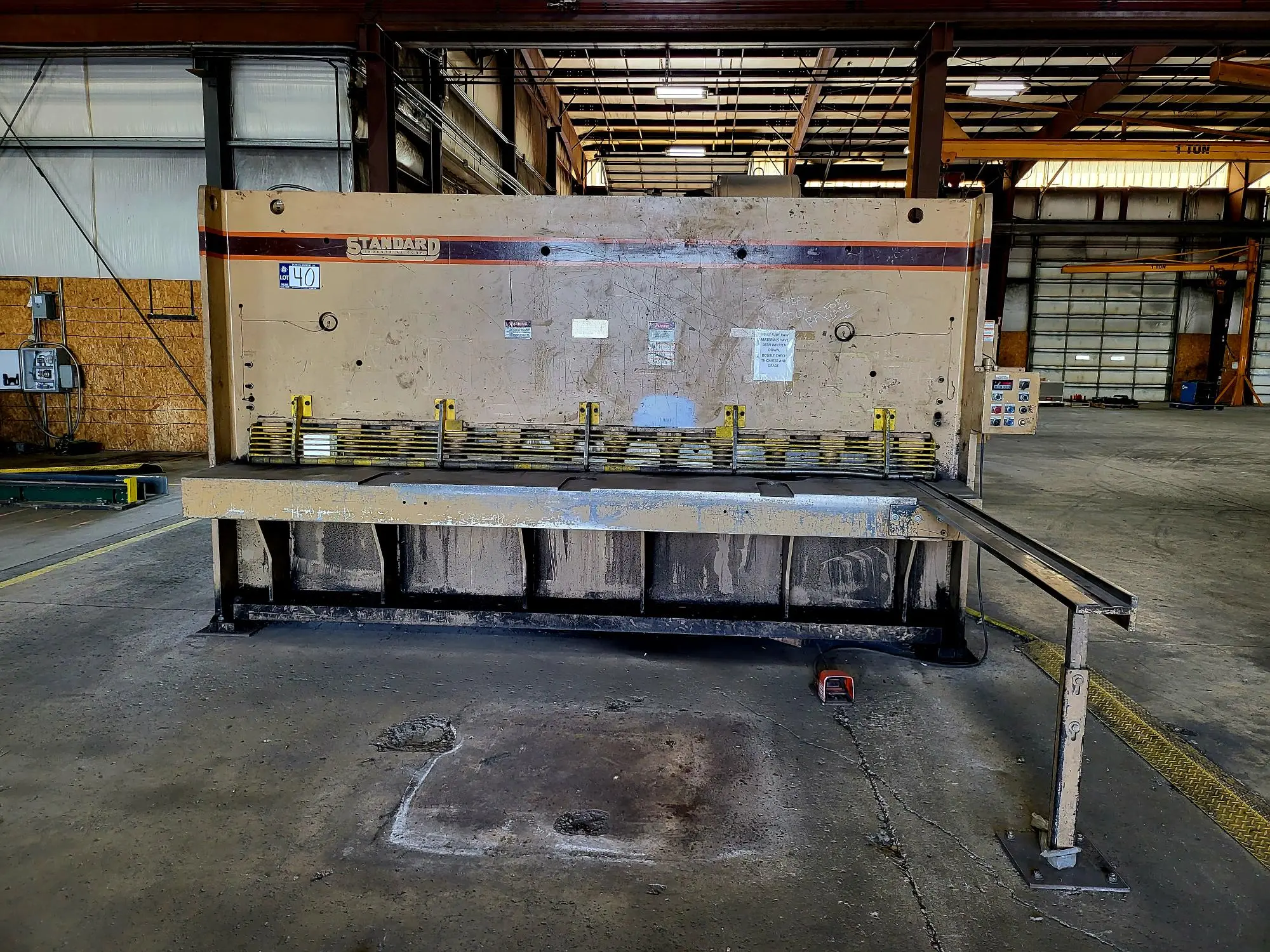

Standard Shear Model AS500-12 12’ X ½”

Standard AS500-12
12’ X ½” Shear
MFG:2000



Standard Industrial Shears
The model AS shear is a 100% U. S. Made hydraulic, true guillotine drive shear with many standard features and an extremely wide variety of options to choose from. The hydraulics and electrics are complete including oil filter, disconnect switch, magnetic starter and control voltage transformer. A set of premium, four edge blades with shock resistant, chrome alloy are standard on all new shears. There is not a more heavy duty, versatile shear manufactured in the U.S.A. or any other country.


Specifications:



Features Include
All Components Readily Available From Your Local Suppliers
Precision Guillotine Drive Providing the Best Shearing System Available
Infinitely Variable, POWER, Quick-Change Blade Gap Adjustment

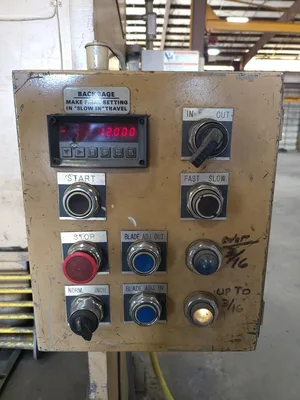

36″ travel PLC backgauge
Manual swingaway backgauge
80,000 PSI Capacity rated
Heavy duty ball transfers mounted in table

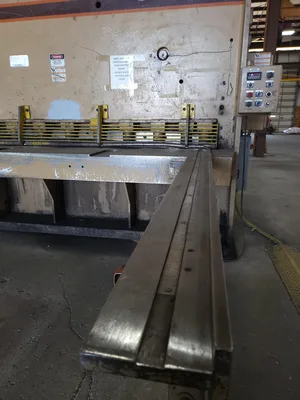

4′ squaring arm with scale on right hand side
(3) Hand slots in the table
(2) T-slots in shear table

The Bellcrank Linkage System
The model AS is a hydraulic shear with the advantage of full tonnage throughout the stroke, and full tonnage throughout the length of the table during the entire shearing process from start to finish. Our system features a single hydraulic cylinder, this one large bore cylinder powers the bellcrank linkage system. This system has the advantage of a positive, precision mechanical drive coupled with the ease and safety of a hydraulic power plant. There are not multiple cylinders or pivoting swing-beam drives causing distortion. This drive system is how we provide full tonnage along the table and there is no balancing required, just straight tonnage.
