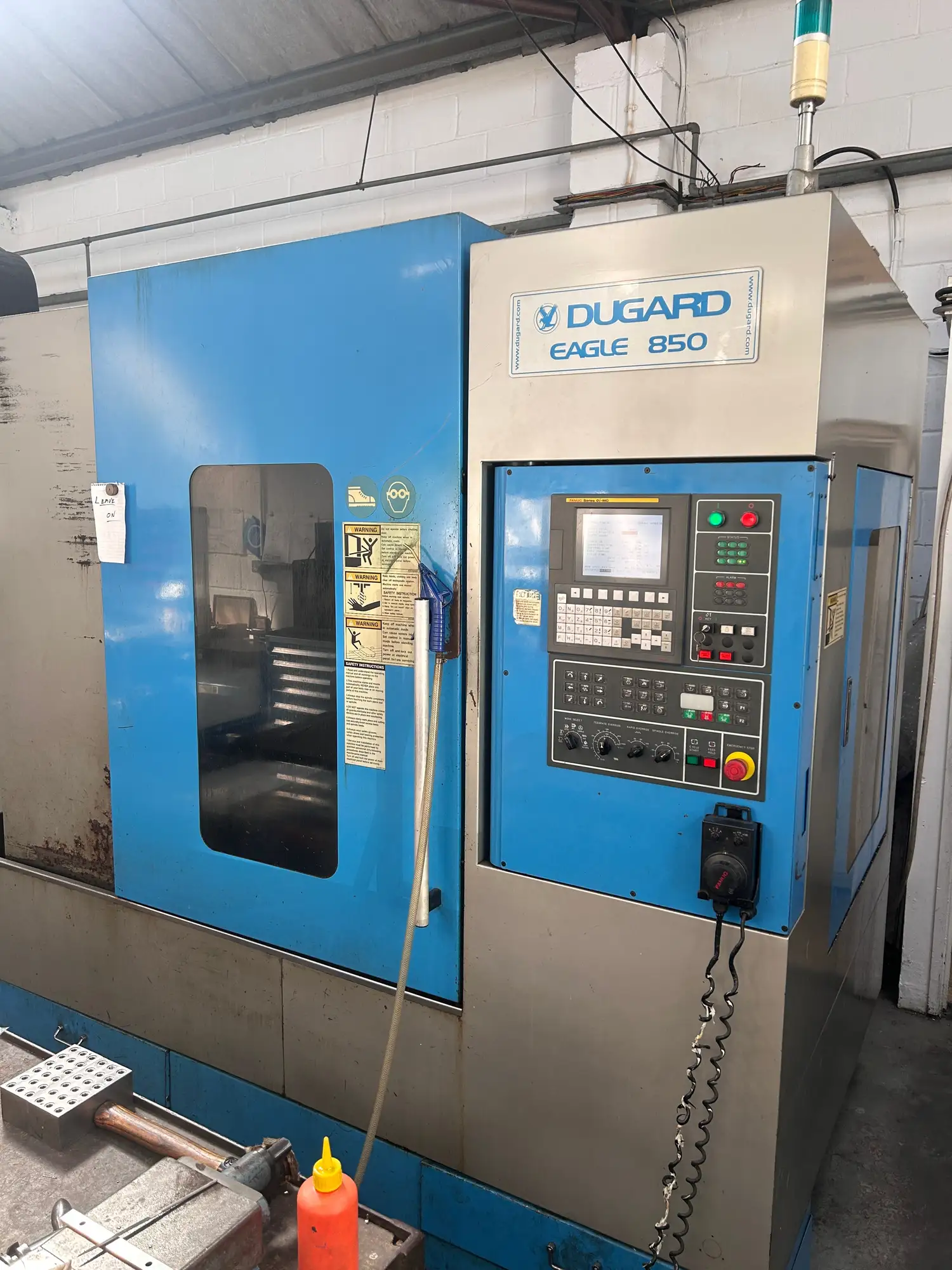

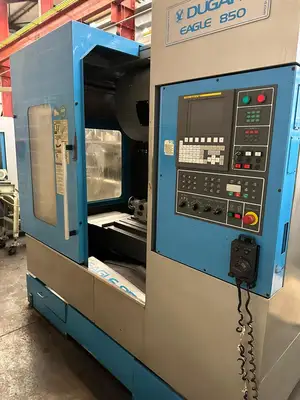

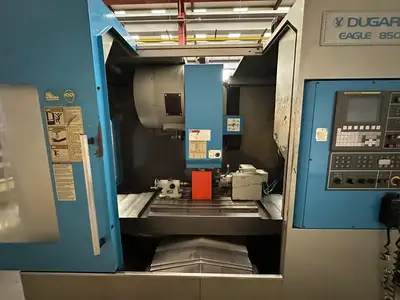

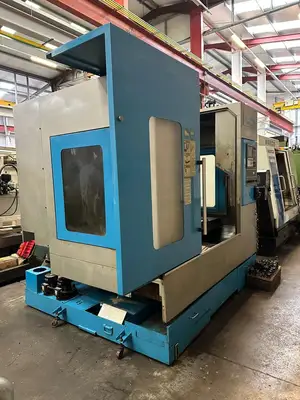

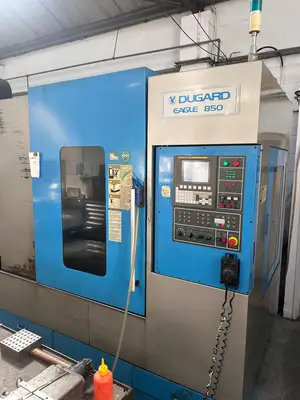

2011 Dugard 850 CNC Machining Centre

X / Y / Z travel: 850 × 520(–530) × 510 mm
Table size: 1,000 × 510 mm with 5×18 mm T-slots at 100 mm spacing
Max table load: 500 kg
Spindle taper: BT40
Spindle speed: 80–8,000 rpm
Spindle power: 11 kW continuous, 15 kW peak
Rapid traverse: X 30 m/min, Y 30 m/min, Z 24 m/min; cutting feedrates up to 10 000 mm/min

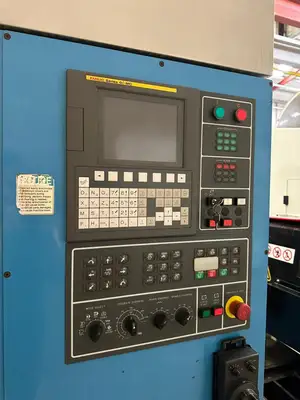

CNC control: Fanuc 0i‑MD
Tool magazine: 24-tool carousel (bidirectional, 6–7 kg/tool, Ø80 mm max, T-T/C-C 2–6 sec)
Machine footprint/weight: approx. 2.30 × 2.12 × 2.58 m; 5.5 tonnes
