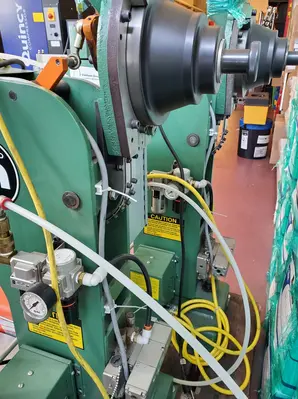

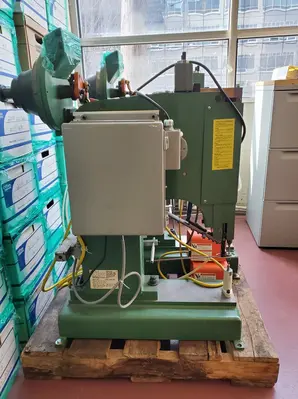

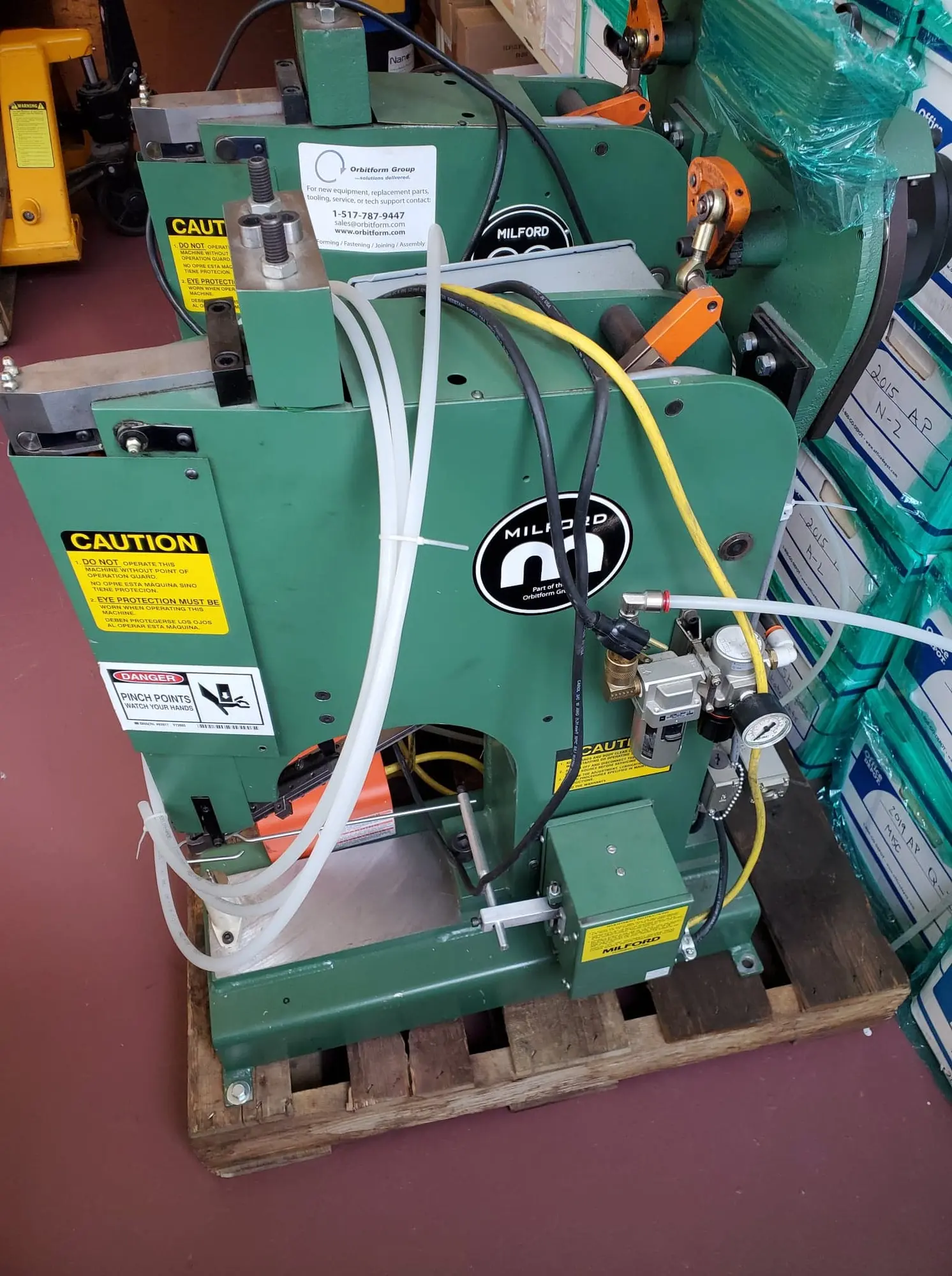

Used Millford #57 Pneumatic Impact Riveting Machine (2 Machines Available)

Millford #57 Impact Riveting Machine

The impact riveting machine is available with many standard features and the impact assembly machine can be customized with options to help monitor, control, and improve the assembly process. Orbitform’s application engineers listen and seek the appropriate answer for each specific assembly process being considered. Orbitform’s team can outline the required upper and lower tooling to conduct the riveting application and, if the customer desires, Orbitform can design and build turnkey assembly machines complete with machine actuation, safety system, fixturing method, error proofing process, and/or other expert assembly features associated with impact riveting machines and automatic assembly equipment.


Specifications:
Power                                      Pneumatic
Max Rivet Diameter               .187″ (4.8 mm)
Max Rivet Length                   .75″ (19 mm)
Throat Depth                          12.0″ (304.8 mm)
Stroke                                      3.0″ (76.2 mm)
Weight                                    230 lbs (104.3 kg)
Width                                      5.0″ (127 mm)
Depth                                      23.25″ (591 mm)
Throat Depth                          12.0″ (305 mm)
Height                                     33.625″ (854 mm)
Machine Set Up
Tooled for Rivet #511
Roll Set #616-1G-4
Driver #57-D-125
Jaw #57-J-223-A
Optimum Use
Semi-Tubular mild steel rivets of ≤.187″
