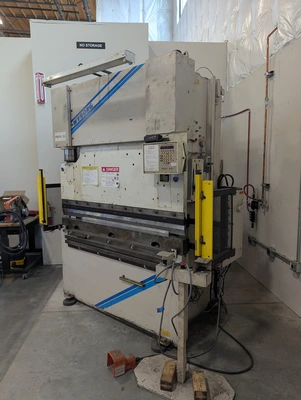

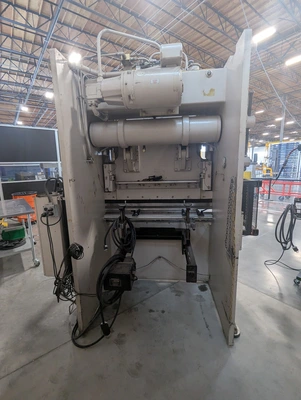

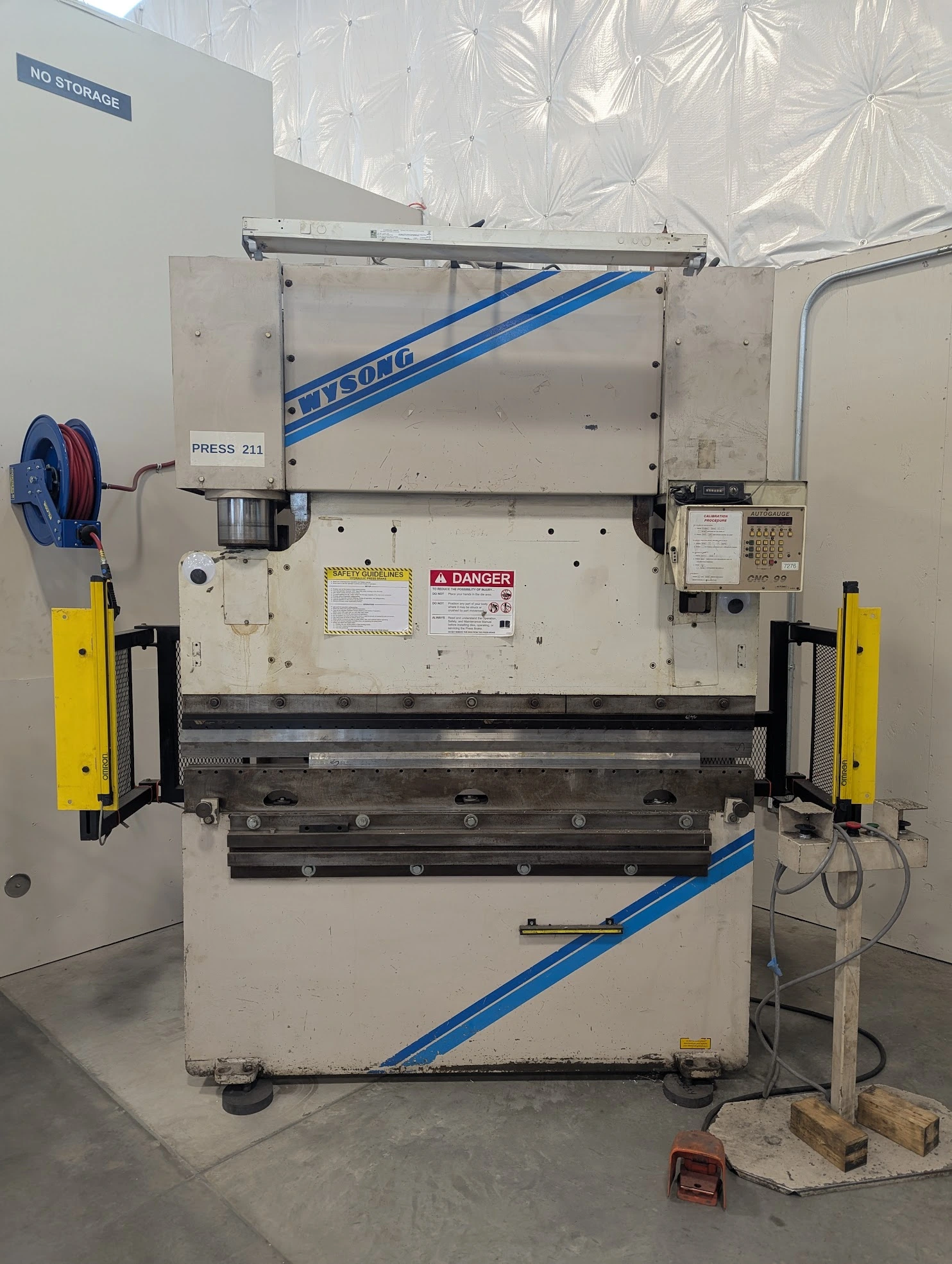

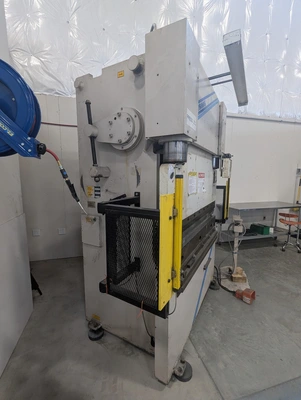

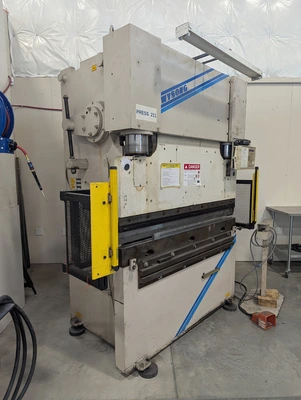

Wysong CNC Press Brake Model THS 100-72

Wysong Model THS 100-72 CNC Press Brake


GENERAL SPECIFICATIONS
Capacity                                                                      100 TONS
Overall length of Bed & Ram                                     72”
Distance Between Housings   `                                   4’6”
Stroke                                                                          8”
Open Height                                                               17”
Closed Height                                                             9”
Throat Clearance                                                         7”
Speeds
Approach                                                                    400 IPM
Form                                                                            8-40 IPM
Return                                                                         400 IPM
Distance, Floor to Top of Bed                                                36”
Width at Top of Bed                                                   3.5”
Main Motor Horsepower                                            25 460/3/60 64/32a














EQUIPPED WITH

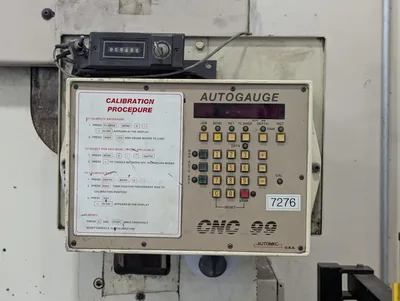

Automec CNC 99   Backgauge (X & Manual Y)
Full Tonnage Throughout Stroke
Omron Light Curtains
Electric Foot Switch
3 Back Gauge Fingers
Wilson Tool 515L Upper Tool Bar
One Shot Lube System
Pedestal Palm Button Station


Approximate Overall Weight                                     12,500 lbs.
Approximate Overall Dimensions                             140” X 57” X 107” H
