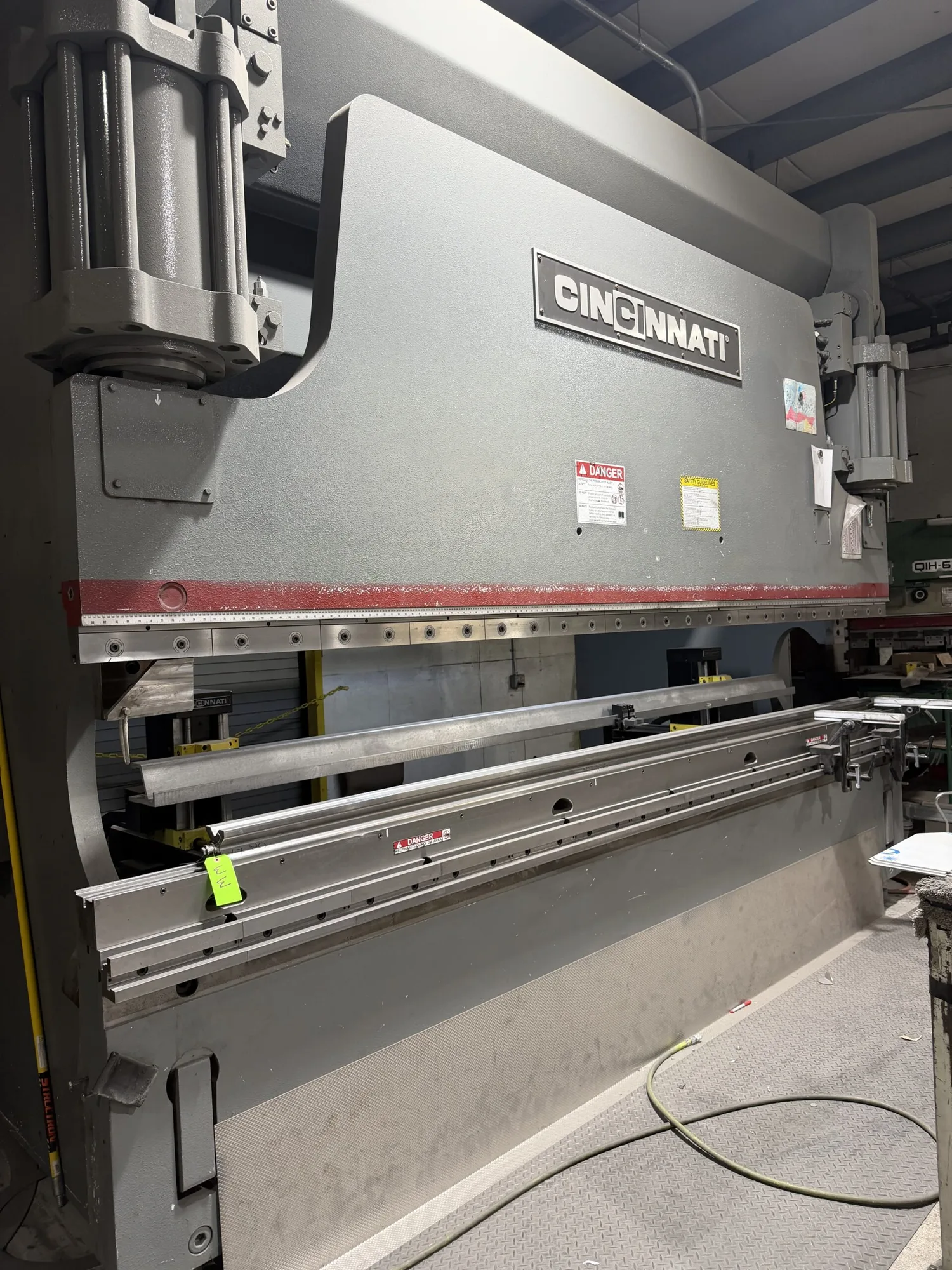

USED 2021 CINCINNATI 350PF12

Cincinnati ProForm Press Brake
Model: 350PF12

Specifications:
Distance Between Housings                                       12’-6”
Total Overall Die Space                                             14’
Tonnage Capacity                                                       350
Thickness X Length                                                    ¾” Plate X 8’-6”
Over V Die Opening                                                   8”
Throat of Machine                                                      18”
Stroke Length                                                             16”
Bed To Ram Height                Closed                         8”
Open                           24”
Approximate Ram Speed       High Approach           105 IPM
Variable Forming        1 to 20 IPM
Variable Return          1 to 95 IPM
Distance From Floor to Bed Top                                36”
Width at Bed Top                                                       5-1/2”
Motor                                                                          15 HP
Weight                                                                        44,000 Lbs

Additional Information
Pit Required
2 Axis Back Gauge
4-Way Die Holder
