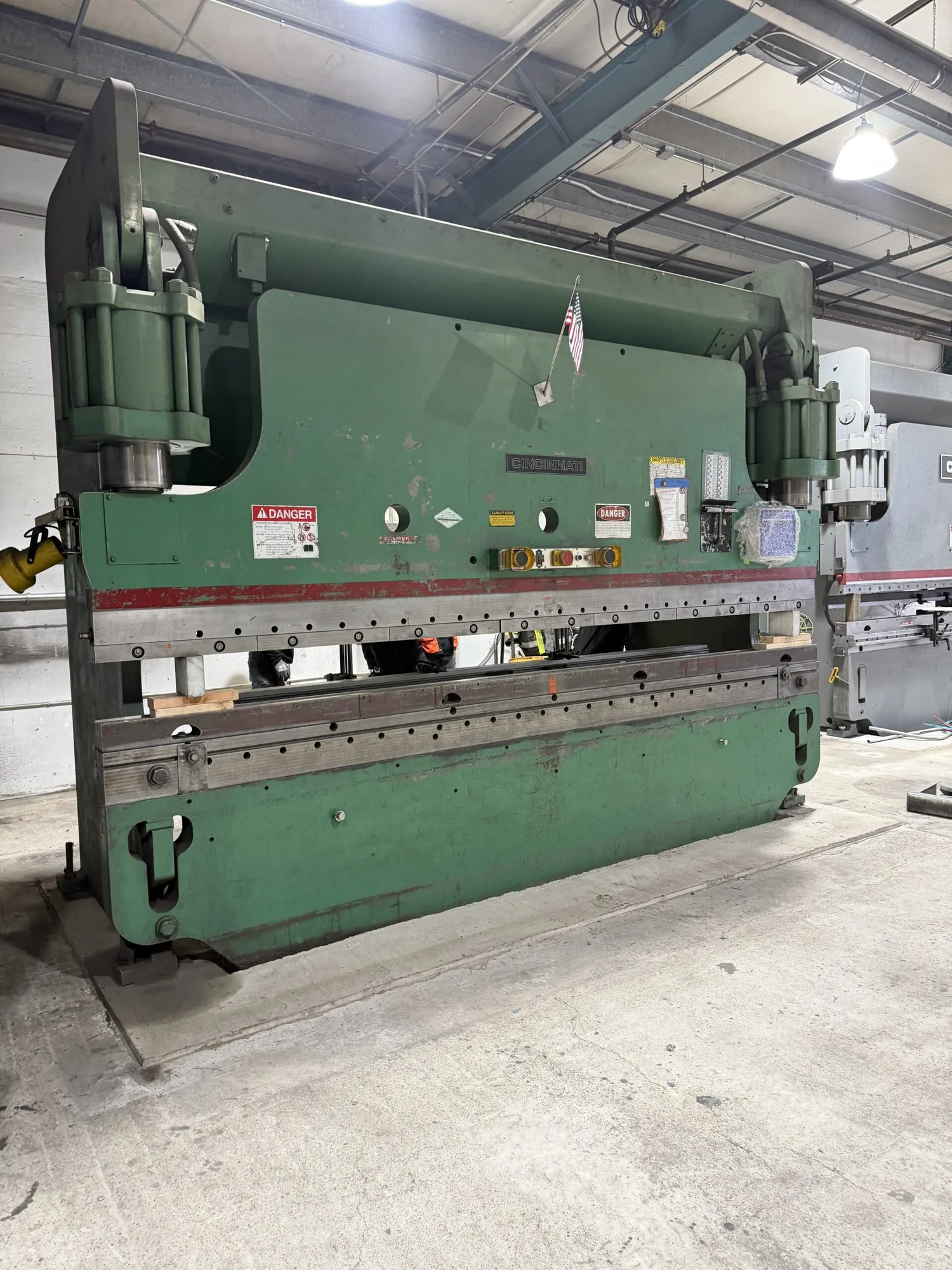

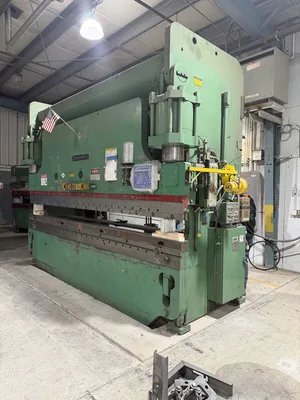

Cincinnati 350CB-12 Press Brake 14′ X 350 Ton W/ Automec 150HD CNC 2 Axis

Cincinnati 350CB-12 Press Brake
14’ X 350 Ton


Specifications:
Distance Between Housings                           12’-6”
Overall Die Surface                                        14’
Length                                                             12’
Tonnage (Low-Med Speed)                            350
Tonnage (High Speed)                                    140
Standard Stroke Length                                  10”
Ram Speed      High                                        65 IPM
Medium                                   33 IPM
Low                                         9 IPM
Speed Return                          67 IPM
Motor                                                              35 HP
Shipping Weight                                             44,000 Lbs

Additional Information

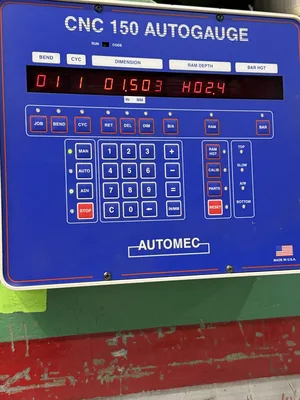

Control:           Automec 150HD 2 Axis
Pit:                   Required
