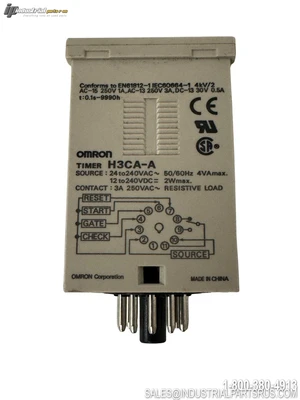

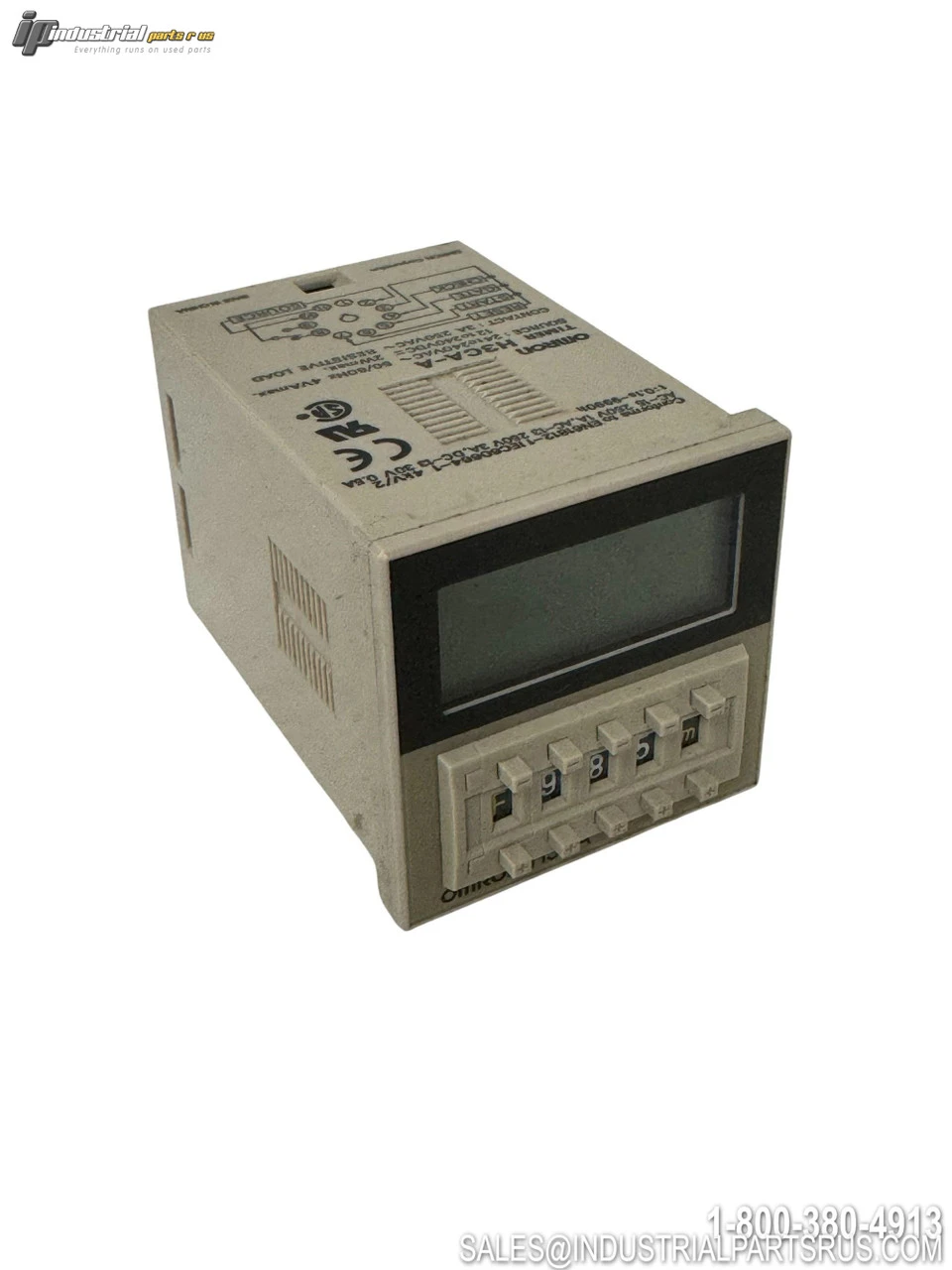

USED OMRON H3CA-A

The Omron H3CA-A is a solid-state multifunction digital timer relay featuring 8 selectable operation modes and universal AC/DC power compatibility. This 1/16 DIN plug-in timer offers wide timing ranges from 0.1 seconds to 9990 hours with an easy-to-read LCD bargraph display and output status indicators.
Specification
Value
Brand
Omron
Model/Part Number
H3CA-A
Product Type
Time Delay Relay
Series
H3CA
Supply Voltage (AC)
24-240VAC, 50/60Hz
Supply Voltage (DC)
12-240VDC
Time Range
0.1 seconds to 9990 hours
Number of Timer Modes
8
Output Contacts
SPDT
Contact Rating
3A @ 250VAC
Connection Type
11-pin round socket
Mounting Type
Plug-in
Panel Cutout
1/16 DIN (45x45mm)
Dimensions
48 x 48 x 75.4mm
Display
LCD bargraph with 3-digit display
Input Method
No-voltage input
Operating Temperature
-10°C to +55°C
Timing Accuracy
±0.3% ±0.05 seconds
Power Consumption
3VA (AC) / 3W (DC)
Certifications
UL, CSA, CE
We warranty all items for 30 days from date of purchase.

SKU: AI1583
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Plug-In
Current Rating: 3A
Output Type: Relay SPDT
Manufacturer: Omron
Part Number: H3CA-A
Series: H3CA
Shelf: F-11 Tub 10
Model: H3CA-A
Coil Voltage: 24-240VAC/12-240VDC
MPN: H3CA-A
Type: Time Delay Relay
