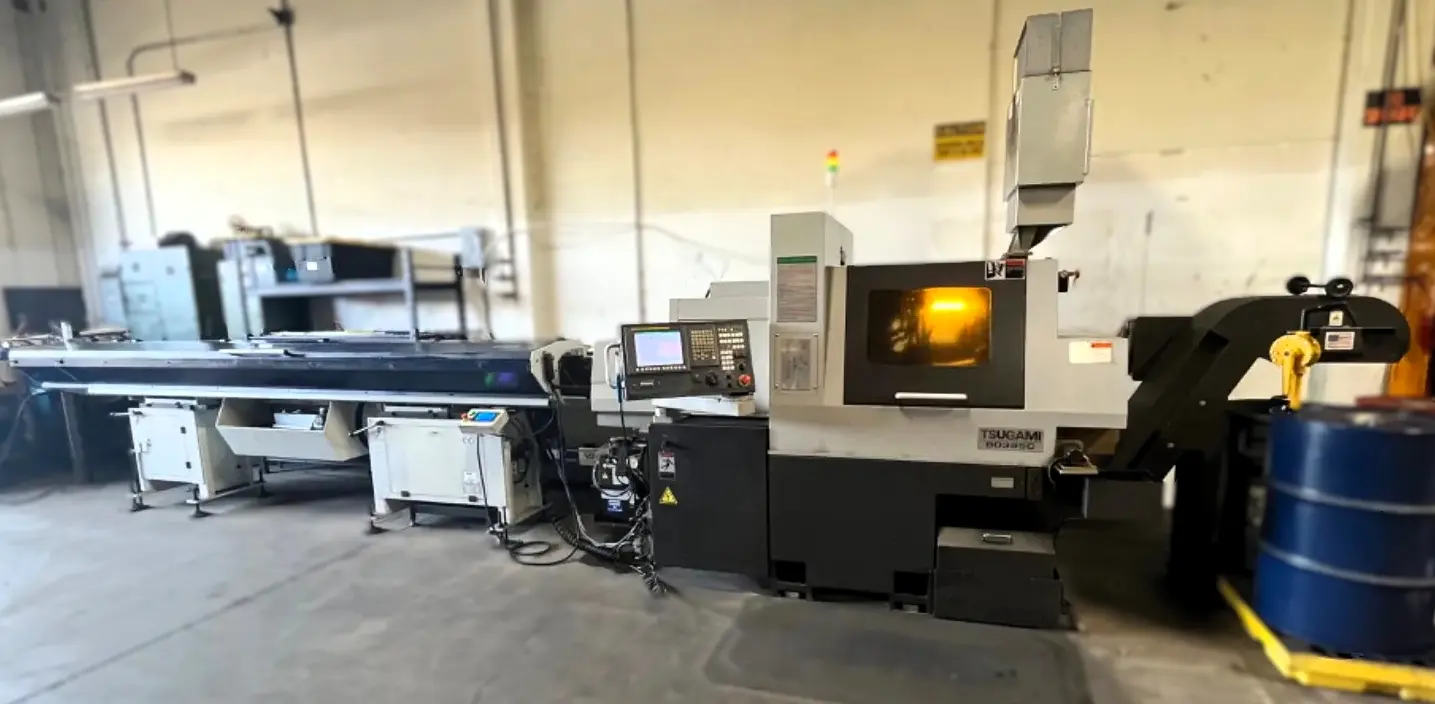

TSUGAMI B0385C CNC Swiss Lathe, New in 2018.
Patriot 338 12ft Barfeed
| Capacity | 38 mm | 1.4961" |
| Power | 3.7 kW | 5 hp |
| RPM | 4,500 RPM | 4,500 RPM |
| # Axis | 5 | 5 |
| Swiss, Chucker or Convertible? | Chucker | Chucker |
| Control | CNC (Fanuc Oi-TD) | CNC (Fanuc Oi-TD) |
| Dimensions | 107" x 50" x 76" | 107" x 50" x 76" |
| Weight | 8,400 | 8,400 |
General Specifications:
Spindle Hole Dia 0.0587"
Max Machining Length 2.362"
Max Drilling Dia (Main) 0.472"
Max Tapping Dia (Main) M12
Max Chucking Dia (Sub) 1.49"
Max Drilling Dia (Sub) 0.472"
Max Tapping Dia (Sub) M12
Max Cross Drilling Dia 0.314"
Max Cross Tapping Dia M6
Tool Spindle Slot Cutter Dia 1.771"
Power (Main) 7.4 hp
Power (Sub) 5 hp
# Axis 5
RPM (Main) 4,500 RPM
RPM (Sub) 7,000 RPM
RPM (Rotary Tool) 6,000 RPM
Control CNC (FANUC OI-TD)
Dimensions 107.08" X 50.39" X 75.98"
Weight 8,377 lb
5-Axis
Tool spindle (6000 rpm)
Sub-spindle
Bar feeder
Fire system
High-pressure coolant pump (2000 psi)
Used only oil for coolant
HEPA filter mist collection
Spindle cooling unit
Chip conveyor
Liners & tooling included
