Used

USED 2019 ERMAKSAN EPL 6.5 X 19.5

Ontario, Canada
299Listings|148Followers
Overview
Plasma Cutters

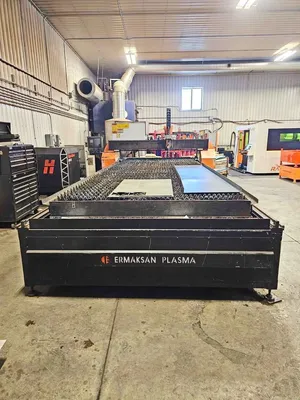

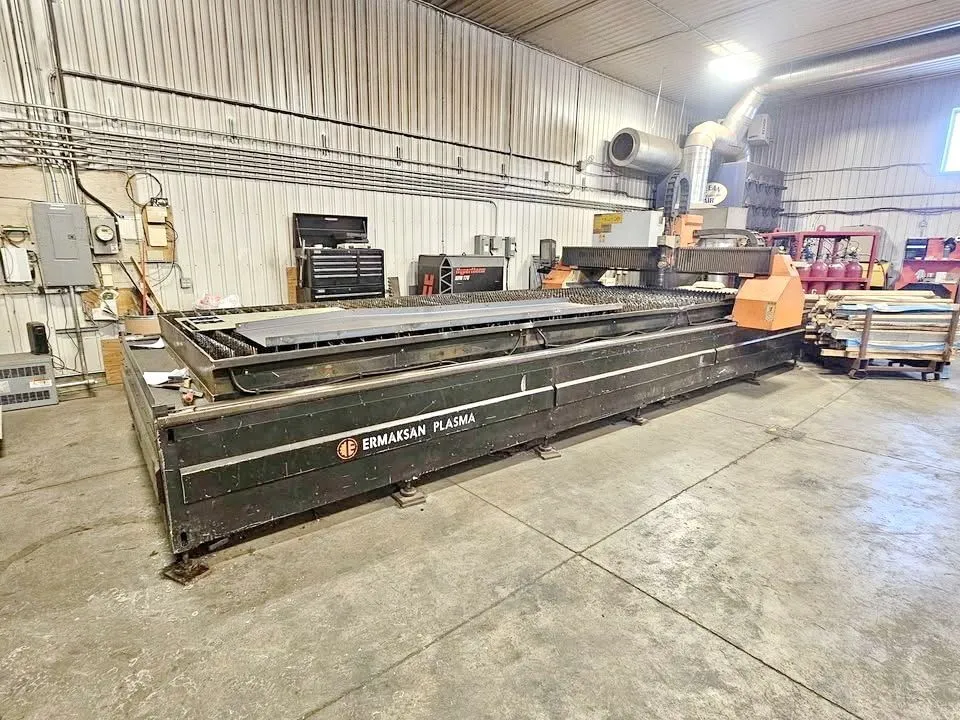

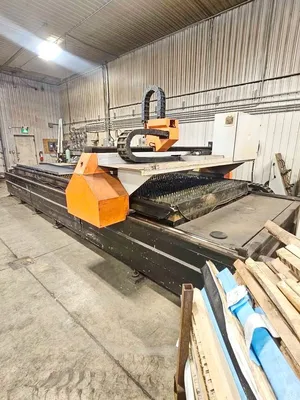

S2019 Ermaksan EPL 6.5' X 19.5' CNC Plasma Cutter, Hypertherm XPR170 Plasma Cutting System, Sectional Downdraft Cutting Table, 24-Filter Dust Collector, Torch Height Control, Gas Mixing Console, Miscellaneous Consumables Included

Specs
Plasma Power
170 a
170 A
Cut-Width
6.5'
1,981.2 mm
Cut-Length
19.5'
5,943.6 mm
Table Height
29.5"
749.3 mm
Max Sheet Thickness (Steel)
1.375"
34.925 mm
Max Sheet Thickness (Stainless)
0.875"
22.225 mm
Max Sheet Thickness (Aluminum)
1"
25.4 mm
# Plasma Torches
1
1
Cutting Speed
1378 ipm
Repeatability
0.002"
0.0508 mm
Made In
Turkey
Turkey
Control
CNC (Hypertherm Edge Pro)
CNC (Hypertherm Edge Pro)
Dimensions
236.2" X 146" X 90" (Approx.)
236.2" X 146" X 90" (Approx.)
Weight
14,881 lb
14,881 lb
Equipped With

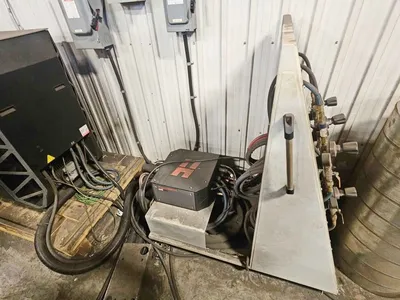

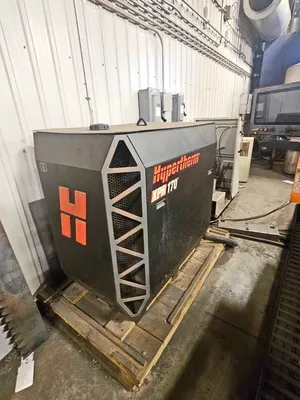

Hypertherm XPR170 plasma cutting system
6.5' X 19.5' cutting table
Sectional downdraft cutting table
24-filter dust collector

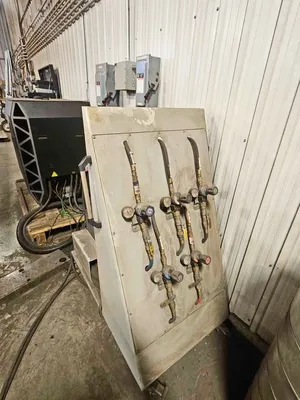

Gas mixing console
Hypertherm torch height control
High-accuracy linear rails
Rack-and-pinion drive system
Miscellaneous consumables included
