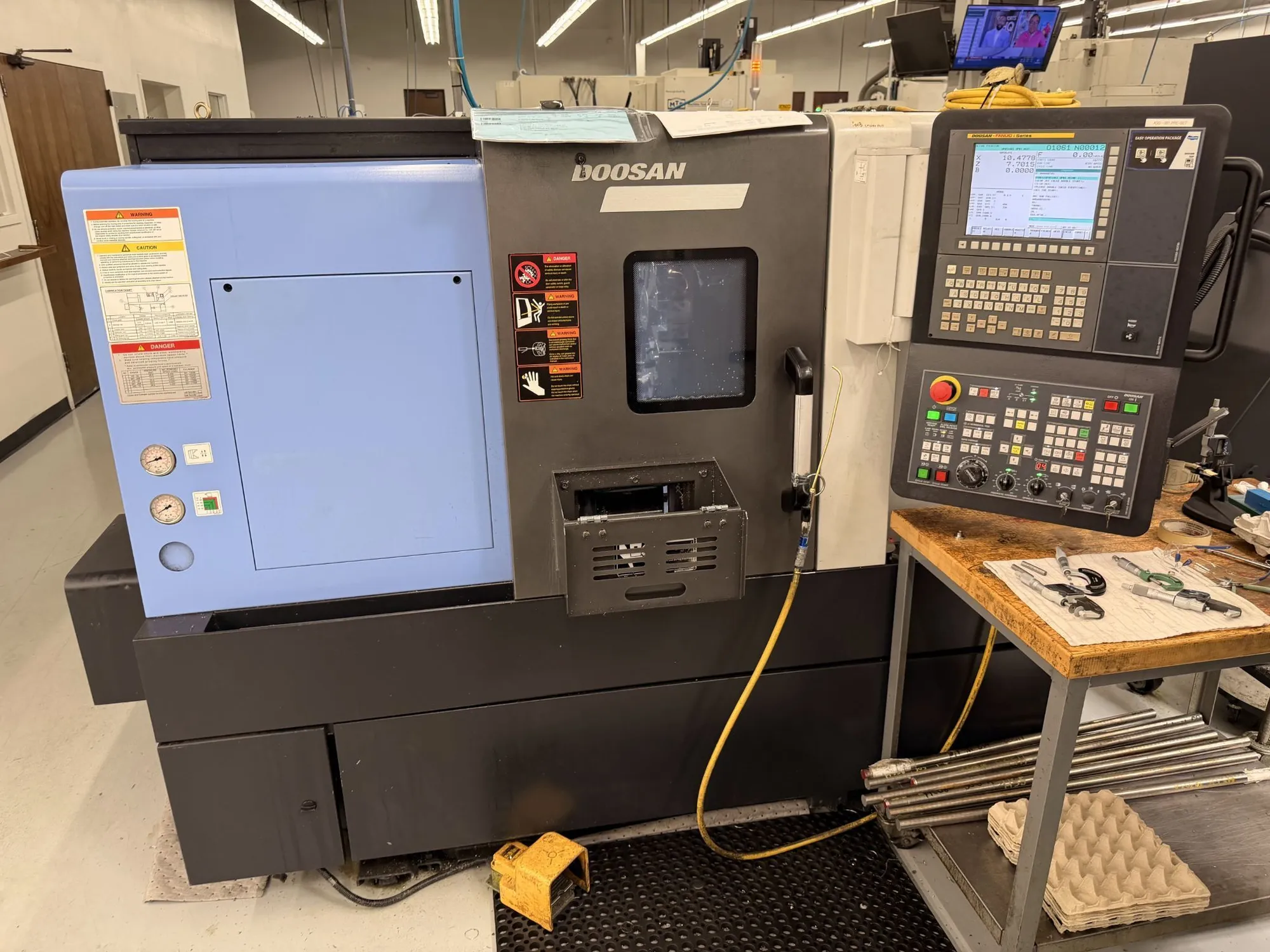

Doosan Lynx 2100A CNC Turning Center, New in 2016
| Swing | 23" | 584.2 mm |
| Machining Length | 13" | 330.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 13.8" | 350.52 mm |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc 0i-Plus) | CNC (Fanuc 0i-Plus) |
| Dimensions | 91.3" x 63" x 66.6" | 91.3" x 63" x 66.6" |
| Weight | 6,850 lbs | 6,850 lbs |
General Specifications:
X-Axis Travel: 8.1"
Z-Axis Travel: 13.4"
Rapid Traverse Rate (X/Z): 1181 / 1417 IPM
Turning Diameter: 13.8"
Turning Length: 13"
Bar Capacity: 2"
Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
Torque: 93.6 ft-lbs
Boring Bar Diameter: 1.5"
Shank: BMT-Key
Turret Positions: 12
Machine Dimensions: 91.3" x 63" x 66.6"
Machine Weight: 6,850 lbs
Fanuc 0i-Plus CNC Control
Programmable Tailstock
Hennig Chip Conveyor
Tool Setter
Parts Catcher
All Available Manuals and Tooling
