Machine is in Excellent Condition & Ready For Inspection.
| Swing | 25.5" | 647.7 mm |
| Machining Length | 35" | 889 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4.1" | 104.14 mm |
| Power | 40 kW | 53.6 hp |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 21.6" | 548.64 mm |
| Tailstock | 'Yes' | 'Yes' |
| Control | CNC (Fanuc Series O-T) | CNC (Fanuc Series O-T) |
| Dimensions | 190”L x 82”W x 88”H | 190”L x 82”W x 88”H |
| Weight | 20,000 Lbs | 20,000 Lbs |
Specifications:

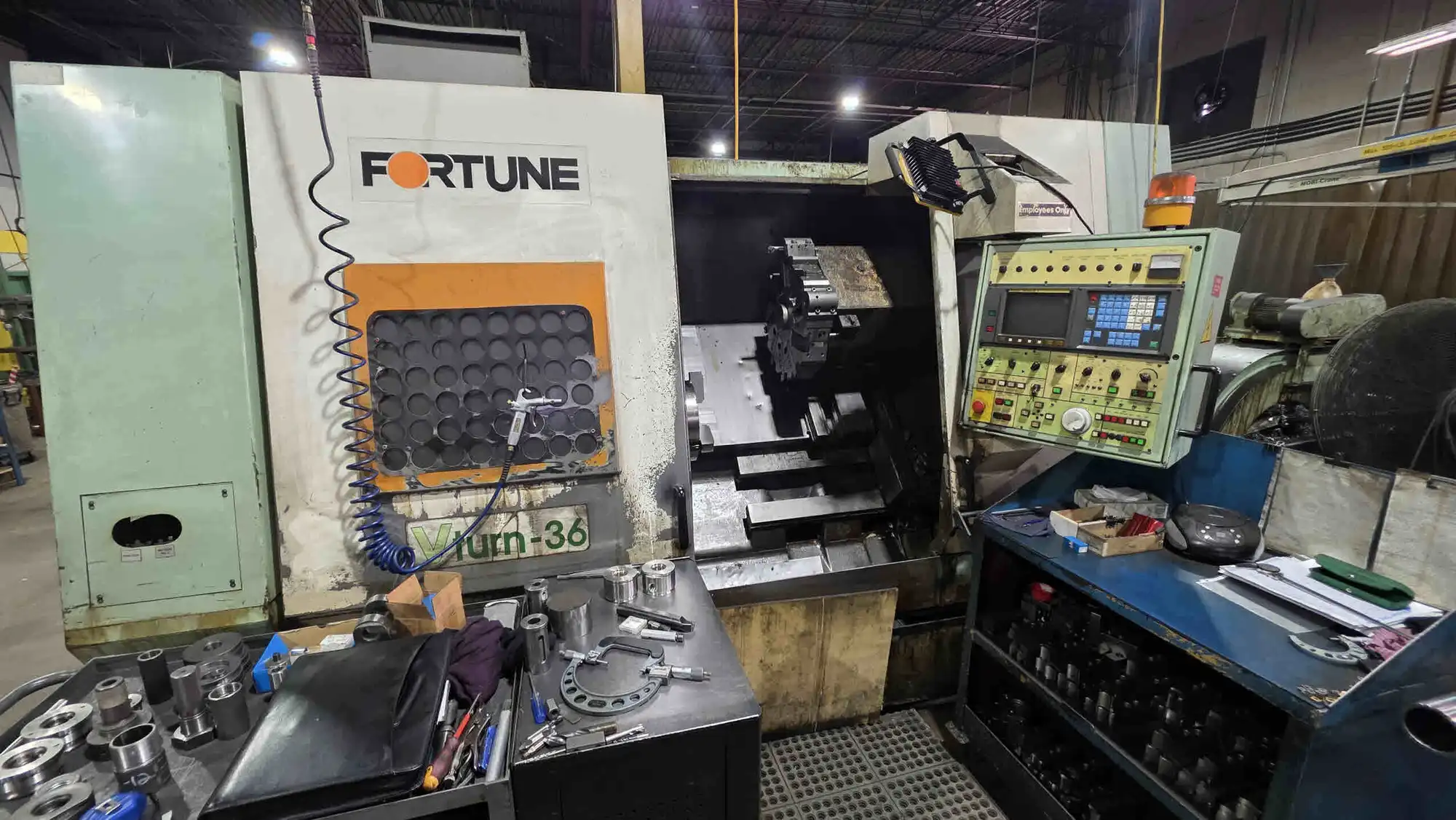

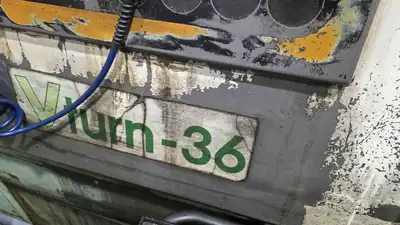

Model - Vturn-36
Year - 1997
Swing Over Bed - 25.5”
Maximum Turning Diameter - 21.6”
Swing Over Carriage - 19.6”
Center Distance - 35”
Z Axis Travel - 34”
X Axis Travel - 10.8”
Chuck Diameter (3 Jaw) - 12”
Spindle Bore - 4.13”
Number Of Tool Positions - 10
Max Spindle Speed - 2500 RPM
Control - Fanuc
Main Spindle Motor - 40 KW

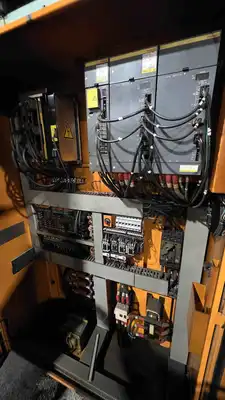

Electrics - 240V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 20,000 LBS
Approximate Overall Dimension - 190”L x 82”W x 88”H
Equipped With:

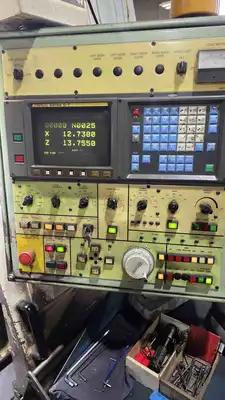

Fanuc Series O-T CNC Control
12” Three Jaw Pneumatic Chuck

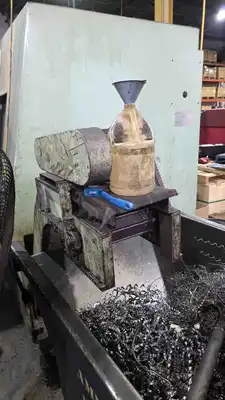

Chip Conveyor
Coolant System

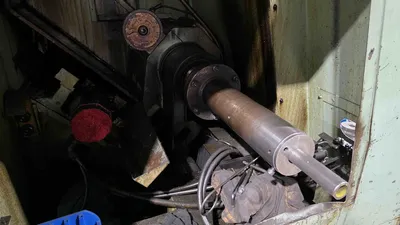

Tailstock
Foot Pedal
Transformer
Manual Books
