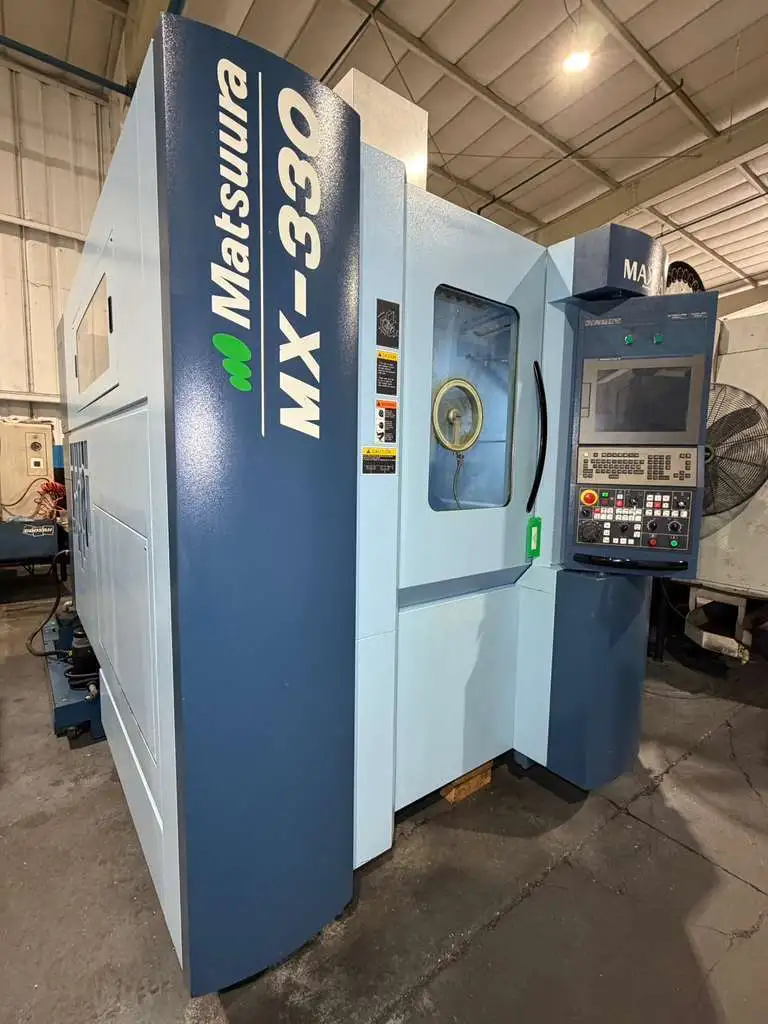

USED 2016 MATSUURA MX-330-5X
Overview
Specifications
| X-Axis | 17.13" | 435.1 mm |
|---|---|---|
| Y-Axis | 18.31" | 465.07 mm |
| Z-Axis | 22.05" | 560.07 mm |
| Table Dia. | 11.81" | 299.97 mm |
| A-axis | -125° to +10° | -125° to +10° |
| C-axis | 360° Continuous | 360° Continuous |
| Max Work Size | 12.99" dia. & 12.59" ht | 12.99" dia. & 12.59" ht |
| # Axis | 5 | 5 |
| Spindle Motor | 25 hp | 18.6 kW |
| Spindle Speed | 15,000 RPM | 15,000 RPM |
| ATC Capacity | 60 | 60 |
| Taper | CAT40 | CAT40 |
| Max Work Weight | 176 Lbs | 176 Lbs |
| Dimensions | 205″ x 183″ x 126″ | 205″ x 183″ x 126″ |
| Weight | 13,860 Lbs | 13,860 Lbs |
Equipped With
Matsuura G-Tech 31i Fanuc CNC Control
5-Axis Simultaneous Machining
9.84" Diameter Rotary Table
15,000 RPM High Speed Spindle
60 Station Automatic Tool Changer
Renishaw Receiver Installed
Renishaw Tool Probe
Through Spindle Coolant
Cool Jet Coolant Unit
Rigid Tapping
Spindle Orientation
LNS Chip Conveyor
