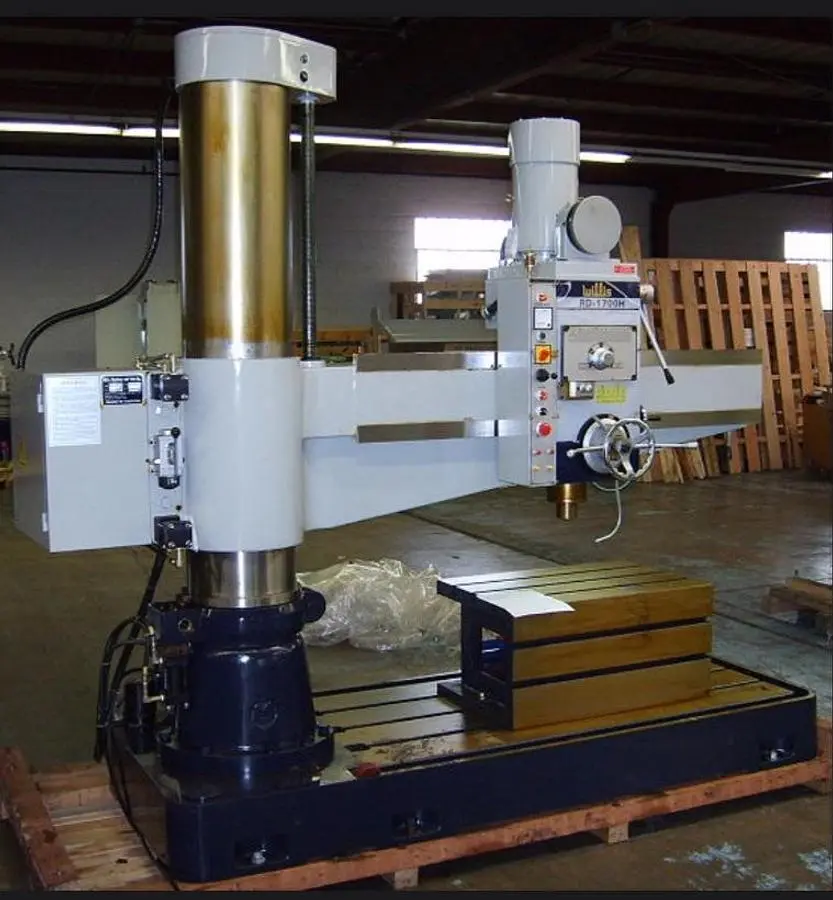

NEW 2026 WILLIS RD1700H

7.5HP
65” arm
“C” box table
flood coolant,
hydraulic clamping,
and work light std

Drilling capacity, maximum (steel / cast iron): 2-3/8” / 2 3/4”
Column diameter: 13.2''
Max. distance spindle center to column: 65”
Min. distance spindle center to column: 14''
Horizontal head travel: 51''
Max distance spindle nose to base: 55''
Base dimensions: 92” x 36” x 9”
Shipping dimensions: 110” x 45” x 101”H
Spindle stroke: 10''
Spindle Taper: 5MT
Spindle RPM (12): 30-1500
Spindle feeds (6) “/rev: 0.004 - 0.024
Spindle HP: 7.5
Net weight: 7,100 lbs
