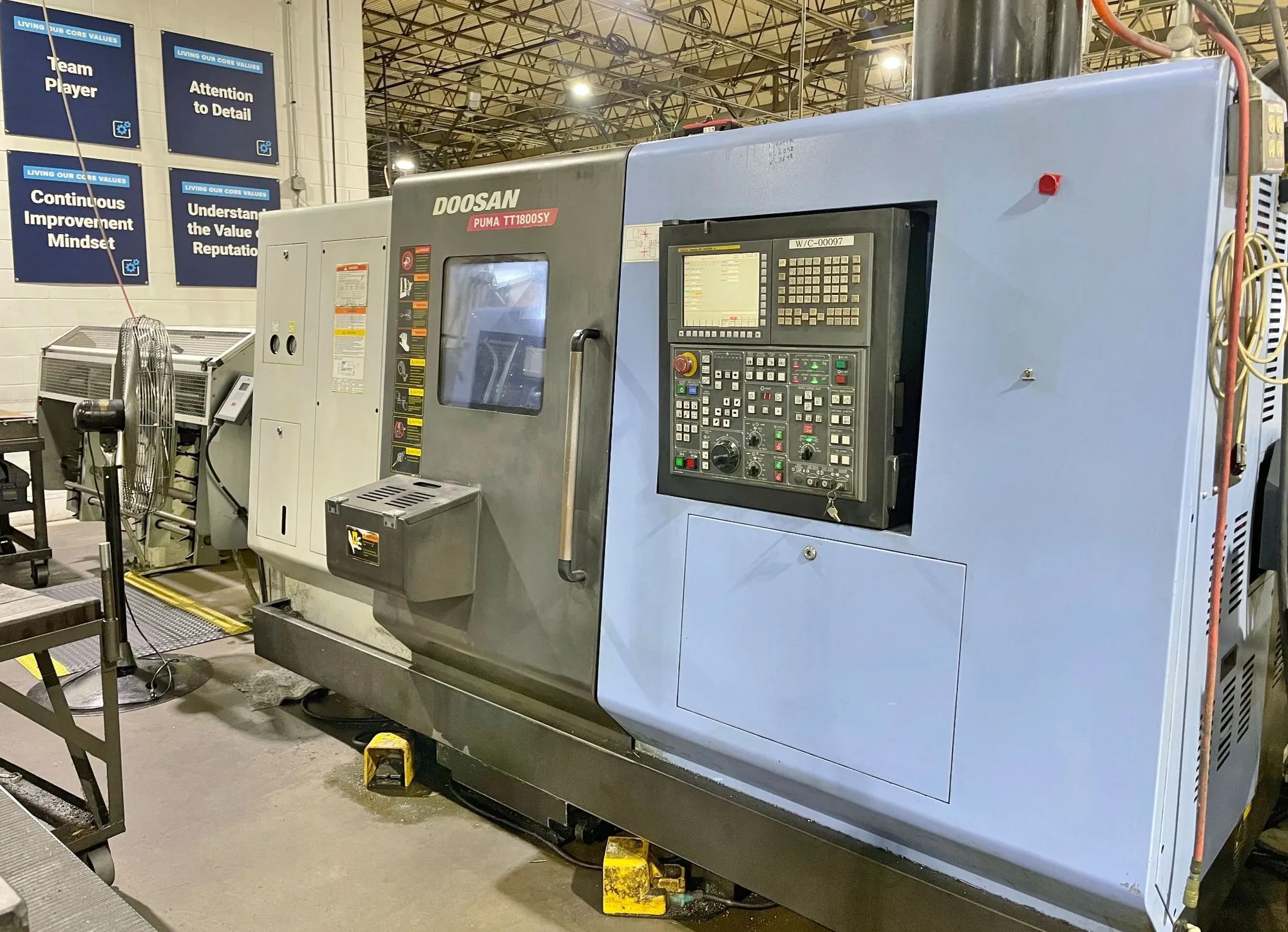

USED 2012 DOOSAN PUMA TT1800SY
Overview
Description
Fanuc 31i-MA Control, LNS Bar Feeder, LNS Blaze Air Unloader, Twin Turrets, Twin Spindles, Y-Axis, Live Milling, Royal QG-65 Collet Chucks, Chip Conveyor, ChipBlaster High-Pressure Coolant. This 2012 Doosan Puma TT1800SY is in plant, under power & available immediately. (2) identical machines available in the same shop.
Specifications
| SWING OVER BED | 9.1" | 231.14 mm |
|---|---|---|
| MAX CUTTING DIAMETER | 9.1" | 231.14 mm |
| MAX CUTTING LENGTH | 9.1" | 231.14 mm |
| DISTANCE BETWEEN CENTERS | 38.5" | 977.9 mm |
| X-AXIS TRAVEL | 6.5" | 165.1 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 3.93" (+/- 1.96") | 3.93" (+/- 1.96") |
| Z-AXIS TRAVEL | 27.5" | 698.5 mm |
| C-AXIS INDEXING | FULL C-AXIS (BOTH SPINDLES) | FULL C-AXIS (BOTH SPINDLES) |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.6" | 66.04 mm |
| SPINDLE BORE | 2.9" | 73.66 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 8" | 203.2 mm |
| SUB SPINDLE - BAR CAPACITY | 2.6" | 66.04 mm |
| SUB SPINDLE - SPINDLE BORE | 2.9" | 73.66 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-6 | A2-6 |
| SUB SPINDLE - SPINDLE MOTOR | 30 hp | 22.4 kW |
| SUB SPINDLE - SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| TURRET CAPACITY | 12 STATIONS (24 INDEX POSITIONS) | 12 STATIONS (24 INDEX POSITIONS) |
| TURRET TYPE | BMT55 | BMT55 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
| TURRET 2 CAPACITY | 12 STATIONS (24 INDEX POSITIONS) | 12 STATIONS (24 INDEX POSITIONS) |
| TURRET 2 TYPE | BMT55 | BMT55 |
Equipped With
FANUC 31i-MA CONTROL
LNS MOVE QUICK SIX S2 MAGAZINE BAR FEEDER (6’)
LNS BLAZE AIR UNLOADER
TWIN TURRETS (24 POSITIONS ON EACH)
TWIN SPINDLES
Y-AXIS (UPPER TURRET)
LIVE MILLING
ROYAL QG-65 COLLET CHUCKS (BOTH SPINDLES)
TOOL PRESETTER
PARTS CATCHER
REAR DISCHARGE CHIP CONVEYOR (LNS TURBO HB)
CHIPBLASTER HIGH-PRESSURE COOLANT UNIT (J2-60)
ROYAL MIST COLLECTOR (FX1200)
ASSORTMENT OF STATIC HOLDERS, LIVE HOLDERS & MORE ACCESSORIES (SEE PHOTOS & NOTES BELOW)
** MACHINE CUT PRIMARILY ALLOY STEEL (8620)
** FULL REPLACEMENT COST, AS EQUIPPED - $400,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** (2) IDENTICAL MACHINES AVAILABLE IN THE SAME SHOP
** TOOLING SHOWN IN THE TURRET WILL BE INCLUDED WITH THIS MACHINE
** TOOLING SHOWN ON TABLE OUTSIDE THE MACHINE WILL BE DIVIDED BETWEEN BOTH MACHINES
