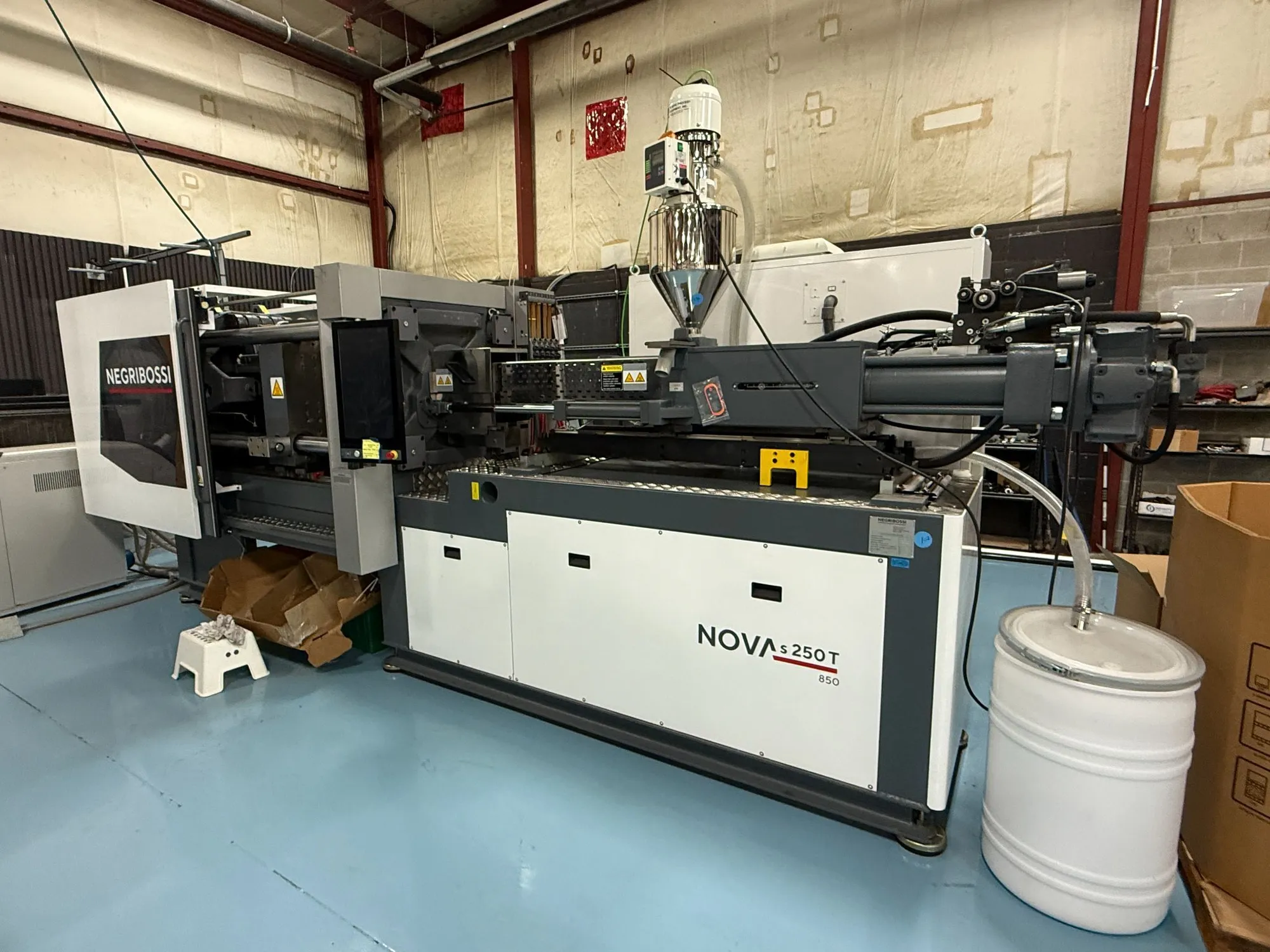

USED 2022 NEGRI BOSSI M 371
Overview
Specifications
| Type | Servo Hydraulic | Servo Hydraulic |
|---|---|---|
| Clamping Force Tonnage | 250 T | 226.796 t |
| Barrel Code | B | B |
| Shot Volume (PS) | 28.2 oz | 799.5 g |
| Screw Diameter | 2.36" | 59.944 mm |
| Maximum Injection Pressure | 26700 psi | |
| Maximum Holding Pressure | 26700 psi | |
| Screw Speed STD | 250 rpm | 250 RPM |
| Screw Torque STD | ft-LBS | ft-LBS |
| Tie Bar Distance H | 35.4" | 899.16 mm |
| Tie Bar Distance V | 31.1" | 789.94 mm |
| Platen Dimension H | 24.8" | 629.92 mm |
| Platen Dimension V | 20.9" | 530.86 mm |
| Clamp Stroke | 7.9" | 200.66 mm |
| Mold Height Min | 7.9" | 200.66 mm |
| Mold Height Max | 25.5" | 647.7 mm |
| Ejector Force | 7.1 T | 6.441 t |
| Ejector Stroke | 8.86" | 225.04 mm |
| Hours | 750 hr. | 750 hr. |
