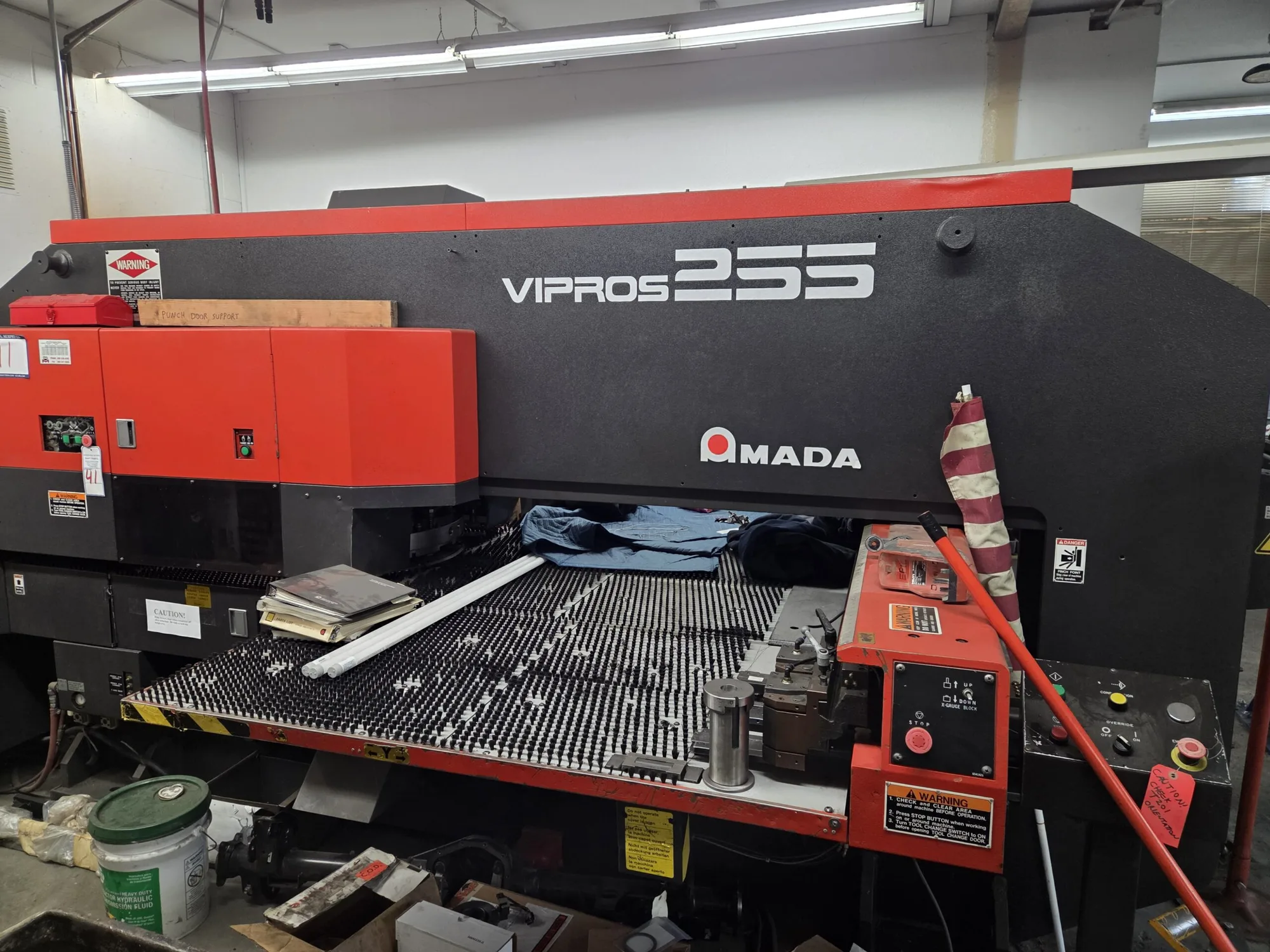

USED 1998 AMADA VIPROS 255

Amada CNC Turret Punch Press
Model Vipros 255

Specifications:
Tonnage: 20 Tons
Number of Turret Stations: 31
Control: CNC (FANUC 18P)
Maximum Traverse: 50” x 50”
Maximum Sheet Size (With Repositioning): 50” x 100”
Maximum Hits Per Minute On 1” Centers: 340
Maximum Sheet Weight: 110 lbs
Maximum Positioning Speed: 2559 Inches Per Minute
Total Tool Stations in Turret: 31
Turret Speed: 30 RPM
Air Requirement: 80 PSI
Main Motor Horsepower: 5.5 KW
Approximate Overall Dimensions: 100” W x 81’ H x 198’ L
Approximate Overall Weight: 17,000 lbs
