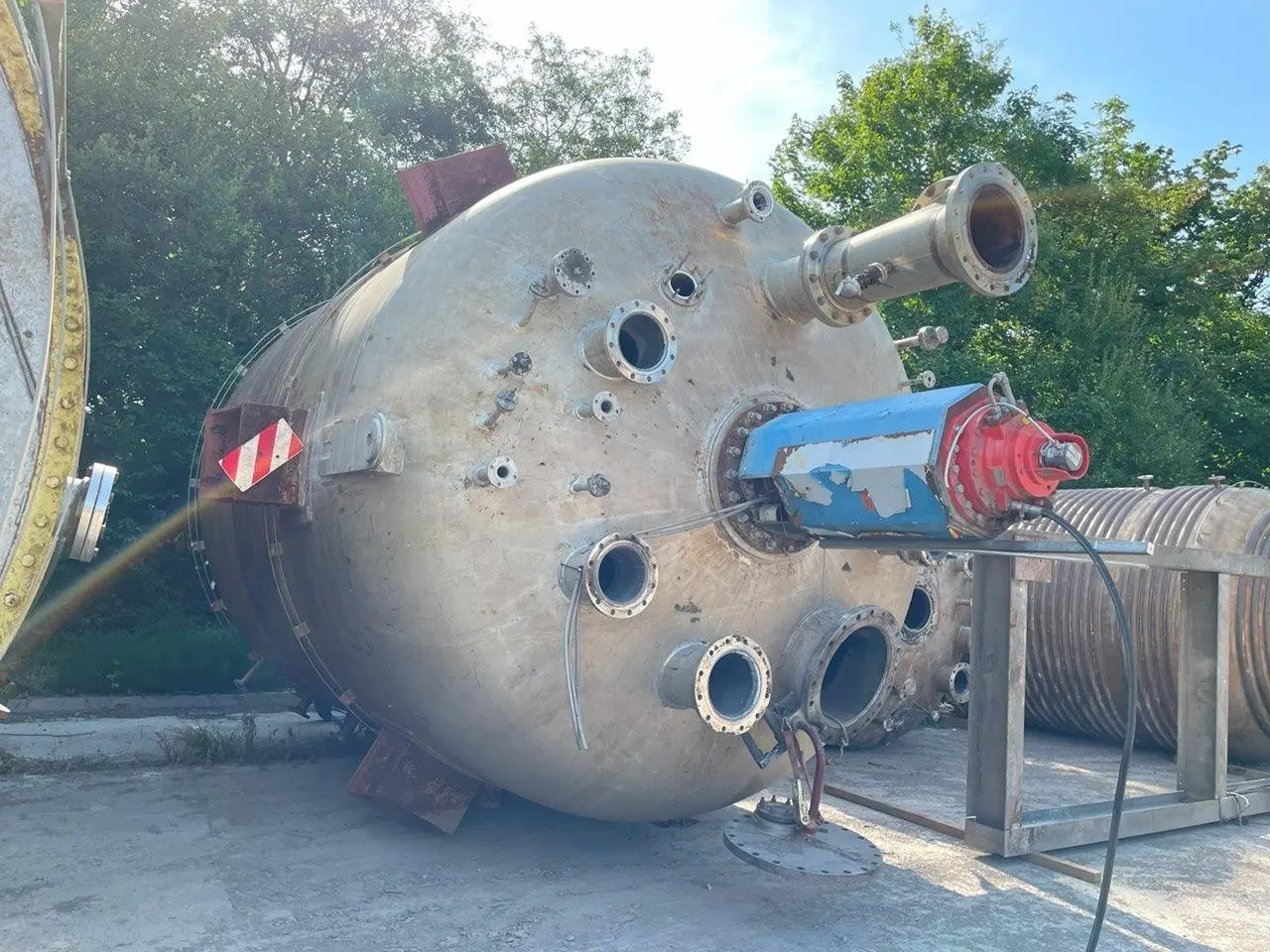

Used Ardeth Engineering approximately 70,524 litre total capacity (approximately 50,000 litre working capacity product dependent) stainless steel vertical reactor vessel. Unit has welded dished top and bottom heads. Internal rated 8 bar/full vacuum design pressure at 350 deg.c. External limpet coil jacket rated 8 bar/full vacuum at 350 deg.c. Internal coil rated 8 bar/full vacuum at 350 deg.c. Unit includes top entry stainless steel 2-tier, 4-blade agitator with bottom mounted steady bearing. Agitator driven by Hagglunds type SM CB 2000 hydraulic drive. Reactor is mounted on (4) mild steel side support lugs.
| Capacity | 70,000 L | 18,492 gal |
| Internal Pressure | 8 bar | 116 PSI |
| Internal Temperature | 350°C | 662°F |
| Jacket Pressure | 8 bar | 116 PSI |
| Jacket Temperature | 350°C | 662°F |
| Type Of Heads | Welded Dished | Welded Dished |
| Legs/Lugs | Lugs | Lugs |
