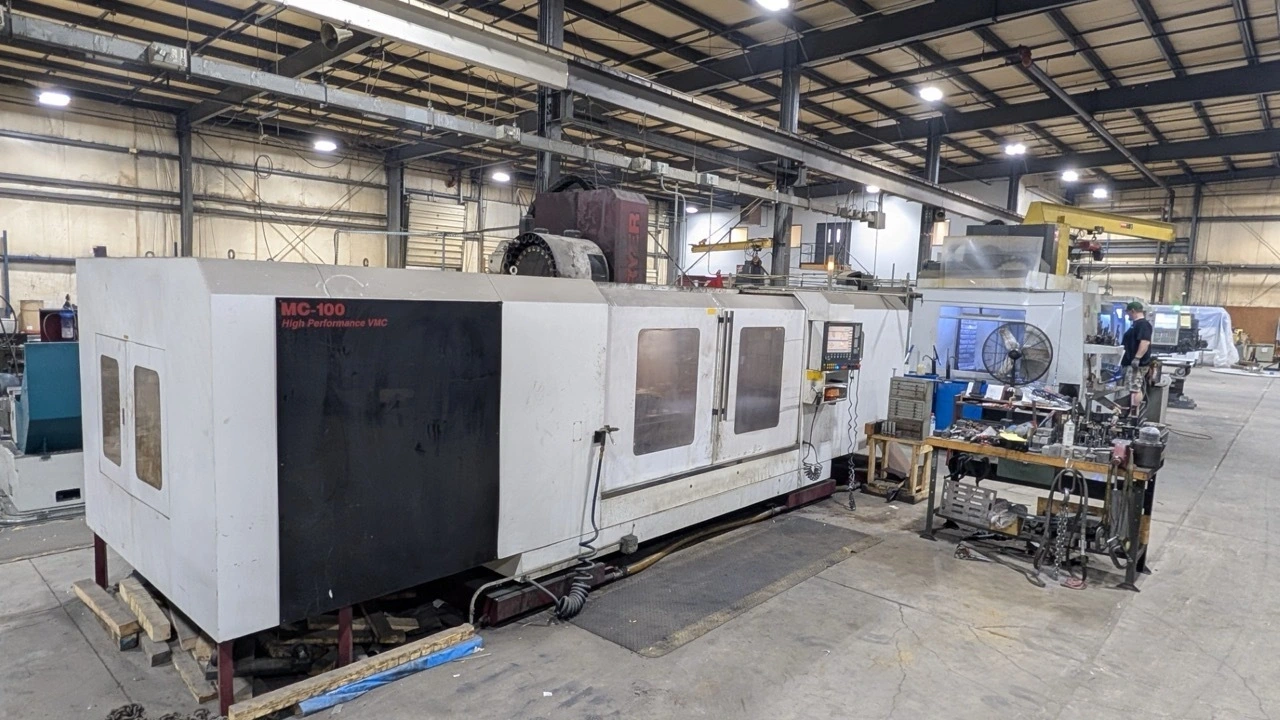

Used Vertical Machining Center, equipped with Siemens Fryer Touch 2200 Control, chip auger, 24 station tool changer, and coolant pump. With X/Y/Z travels of 100"/35"/30" and a 30 HP spindle.
| X | 100" | 2,540 mm |
| Y | 35" | 889 mm |
| Z | 30" | 762 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 8,500 RPM | 8,500 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 30" | 762 mm |
| Table-L | 112" | 2,844.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (Siemens) | CNC (Siemens) |
| Dimensions | 240″ x 94″ x 96″ | 240″ x 94″ x 96″ |
| Weight | 26,000 LBS | 26,000 LBS |
Table Size: 30″ x 112″
Table Load (Evenly Distributed): 5,500 lbs
Table Top to Floor: 35″
X Axis Travel: 100″
Y Axis Travel: 35″
Z Axis Travel: 30″
Spindle Motor: 30 HP
Spindle Speed: 60–8,500 RPM
Spindle Taper: CAT 40
Spindle Center to Column: 36″
ATC: 24
Machine Weight: 26,000 LBS
Machine Dimensions: 240″ x 94″ x 96″
Siemens Fryer Touch 2200 Control
Chip Auger
24 Station Tool Changer
Coolant Pump
TSC Ready
