NEW PERRYMIX HVP 100

Brand new PERRYmix model HVP 100 stainless steel conical mixer for gentle powder mixing:

- Maximum working volume of 100 litres.
- 1 pc half-circle top cover bolted to the vessel with feeding inlet equipped with safety mesh and the lid.
- 1 pc half-circle top cover bolted to the vessel
- Non-supported screw agitator
- Inner surface polished Ra ≥ 3.2 / outer surface bead blasted.
- Manually operated rotary slide outlet valve with conical discharge.
- Mounted on 3 legs.
- Standard non-ATEX atmospheres

Drive:
- Screw agitator driven by 0.75 kW electric motor via NORD gearbox.
- Swing arm driven by 0.25 kW electric motor via NORD gearbox.

Material design:
- Product contact parts manufactured of AISI 304 / DIN 1.4301 stainless steel (beam, conical vessel, mixing screw, vessel lid, product outlet and hopper).
- Stainless steel arm manufactured of AISI 304 / DIN 1.4301 stainless steel.

Options:
- Product contact parts made of AISI 316 stainless steel
- Custom designed top lid (hinged covers, various filling connections etc.).
- Drives and gearboxes for potentially explosive atmospheres.

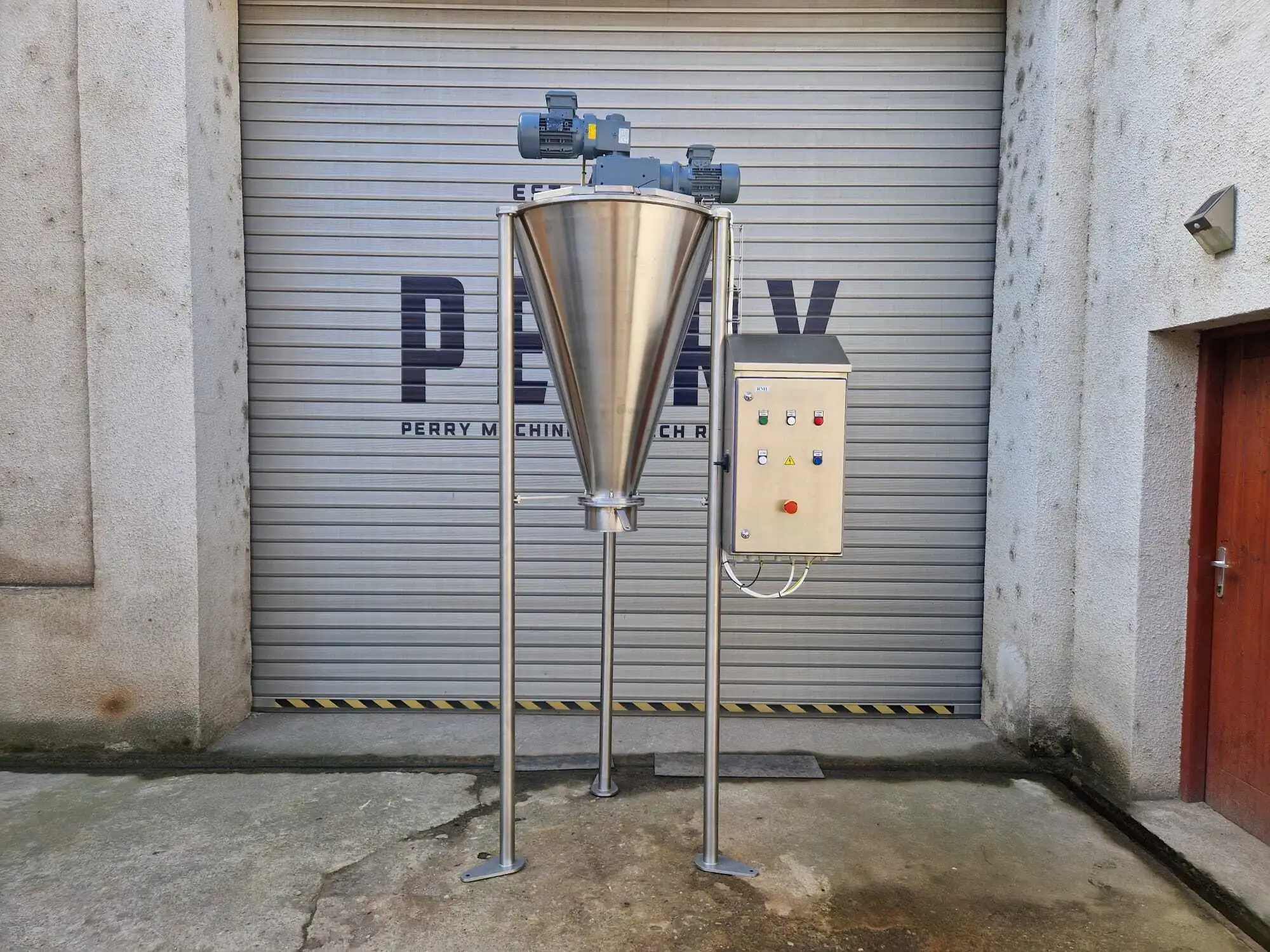

(Disclaimer: Attached photos shows improved design of HVP 100 with stainless steel arm, tilting half-circle top cover and control panel)
