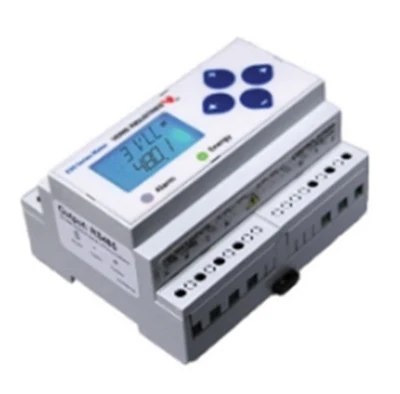

Veris E50H2A 1-Pulse Input Compact Power and Energy Meter with BACnet MS/TP [Refurbished]

Veris E50H2A Advanced Power Meter Alarm Output 1-Pulse Input Compact Power and Energy Meter with BACnet MS/TP Support

The E50H2A DIN rail power meters provide a solution for measuring energy data with a single device. Inputs include control power, CT and 3-phase voltage. Models support BACnet MS/TP protocol. The E50H2A has one pulse contact input and a phase loss alarm output. The LCD screen on the faceplate allows instant output viewing. These meters include built-in CT integrators and CT power supplies. The E50H2A work only with Veris E683 series rope style CTs. The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN 50022. It can be mounted with any orientation over the entire ambient temperature range, either on a DIN rail or in a panel. The meters are not sensitive to CT orientation, reducing installation errors.

Alarm output (normally close)
Full data set output
1 pulse input: solid-state or mechanical contacts (current less than 1 mA)
Mounting location - not suitable for wet locations, for indoor use only. Veris. Veris Industries. E50H2A.
