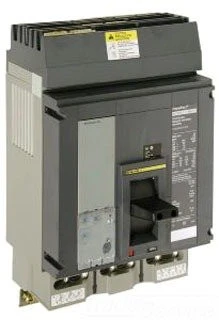

Square D PJA36120U33A PJA36120 I-Line Circuit Breaker, MCCB, 3P 600V 1200A, U33 [New]

Series: Powerpact. Ampere Rating: 1200A. For Use With: I-Line Panelboards and Switchboards. Frame Type: P-Frame. Trip Unit Option: U33 Micrologic 5.0 Interchangeable Standard Trip Unit. PowerPact M-, P- and R-Frame, and Compact NS630b?é-NS3200 Circuit Breakers - UL/IEC Rated, I-Line, Manually-Operated, Standard-Rated Electronic Trip Circuit Breakers with Basic Electronic Trip and Micrologic?é?äó Electronic Trip Units - SPECIFICATIONS: Ampere Rating: 1200A. Approvals: UL Listed - CSA Certified - IEC Rated. Circuit Breaker Type: Standard. Electronic Trip Unit: Basic (ET1.0I). For Use With: I-Line Panelboards and Switchboards. Frame Type: P-Frame. General Application: Provides overload and short circuit protection. Marketing Trade Name: Powerpact. Mounting Type: Plug-On. Number of Poles: 3-Pole. Phase Connection: ABC. Short Circuit Current Rating: 100kA@240VAC - 65kA@480VAC - 25kA@600VAC. Terminal Type: I-Line Connection (ON end) - Lugs (OFF end). Type: PJ. Voltage Rating: 600VAC. Weight: 32 Pounds. Height: 16.20 Inches. Width: 8.27 Inches. Depth: 8.10 Inches. Wire Size: #3/0-500 AWG/kcmil(Al/Cu).. Square D. Schneider Electric. PJA36120U33A.
