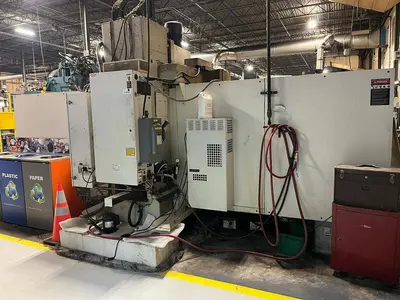

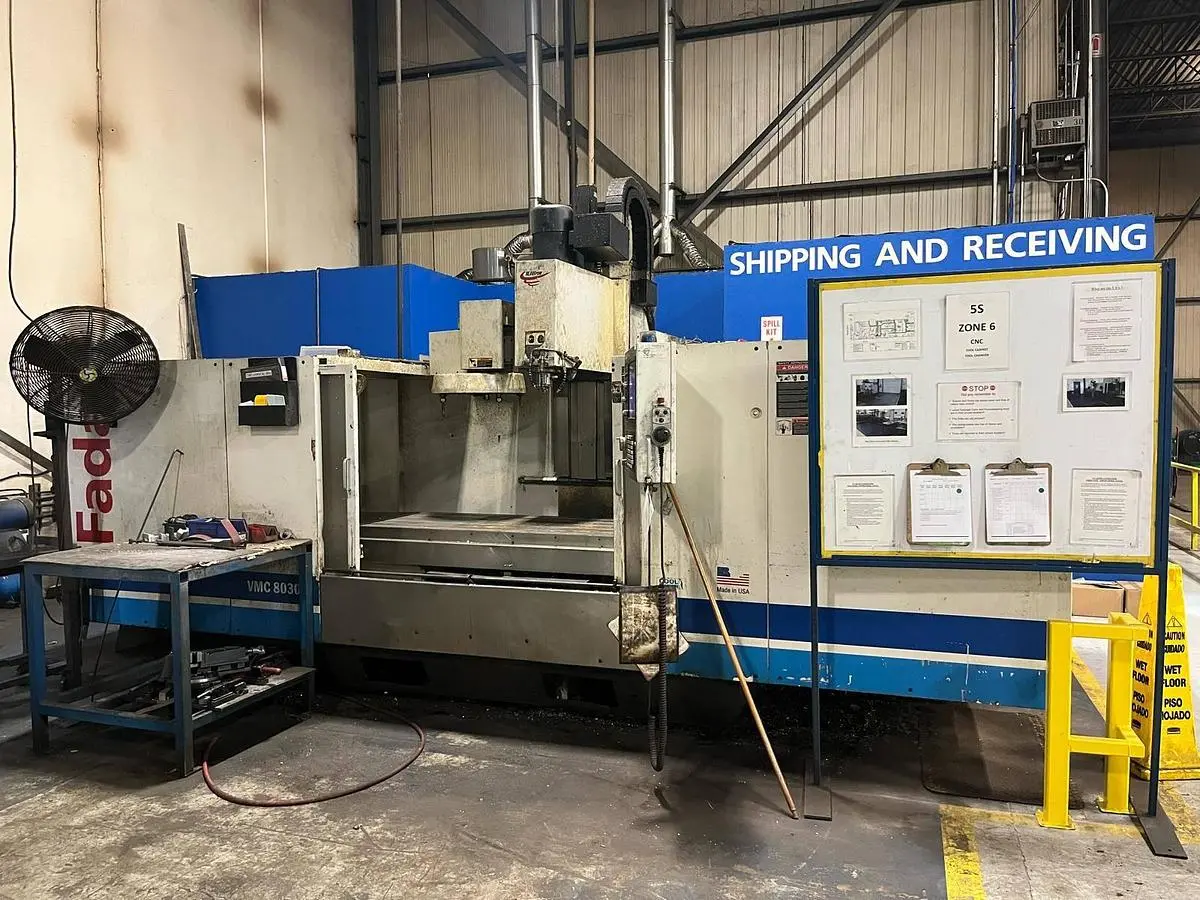

USED 2006 FADAL VMC-8030HT

The 2006 Fadal VMC-8030HT is a used vertical machining center offering significant capabilities for industrial machining tasks. It features an expansive table measuring 82.5 inches in length and 30 inches in width, suited for accommodating large workpieces. The travel ranges on the X, Y, and Z axes are 80 inches, 30 inches, and 30 inches respectively, providing flexibility for various machining operations.

Equipped with a robust 30 HP spindle motor, the machine can achieve speeds of up to 10,000 RPM, ensuring high-performance operations. The spindle uses a CAT 40 taper, widely recognized for its compatibility with numerous tooling options, thus enhancing the machine's versatility. The VMC-8030HT is outfitted with a 21-tool capacity, promoting efficient tool management and operational agility.

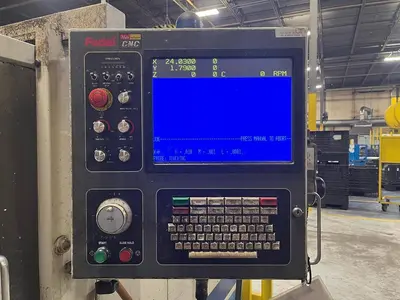

This model operates with the Fadal CNC multi-processor control system, known for its precision and reliability in machining processes. Overall, the Fadal VMC-8030HT is a powerful and adaptable machine, designed to meet a variety of manufacturing requirements in an industrial context.

FADAL VERTICAL MACHINING CENTER 8030 HT, 2005 Reman 2006

SERIAL NUMBER
032005108326

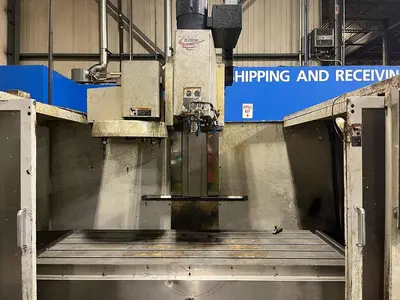

TABLE LENGTH: 82.5"
TABLE WIDTH: 30"
X-AXIS TRAVEL: 80"
Y-AXIS TRAVEL: 30"
Z-AXIS TRAVEL: 30"
SPINDLE SPEED:10,000 RPM
SPINDLE MOTOR: 30 HP
SPINDLE TAPER: CAT 40
TOOL CAPACITY: 21

EQUIPPED WITH:
4TH AXIS ROTARY TABLE FADALVM 225 WITH TAIL STOCK........
VERY HIGH TORQUE MODEL
COOLANT THROUGH THE SPINDLE........
RMPG.........
CHIP CONVEYER.......
