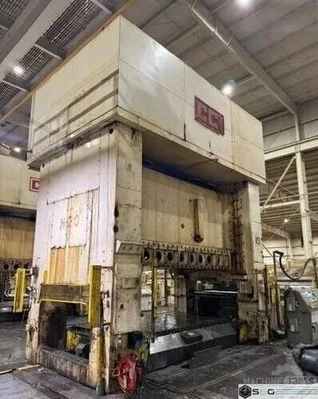

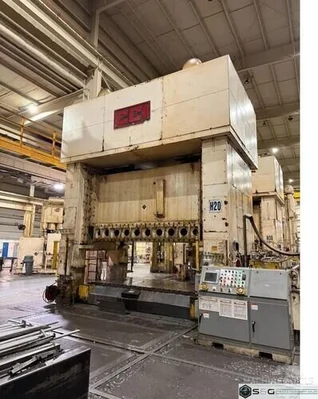

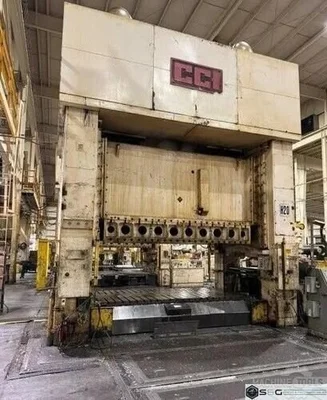

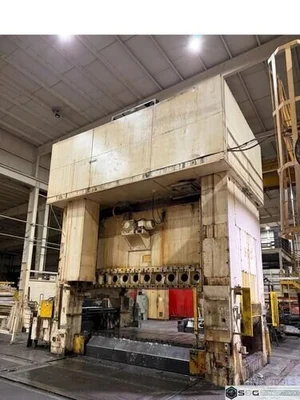

USED 1989 CCI SE4-600-144-72

600-ton CCI Straight Side Press For Sale - Recently Rebuilt

Tonnage: 600
Stroke: 14 inches
Shut Height: 37 inches
Adjustment: 6 inches
Bed Size: 144" x 72"
Ram Area: 144" x 72"
SPM: 20-40 VSPM

Preliminary Specifications
600-ton CCI Straight Side Double Crank Press
Press Model SE4-600-144-72Fully Rebuilt in 2023
2 Available - Year 1989600-ton Capacity14" Stroke37" Shut Height on Top of Bolster6" Motorized Adjustment144" LR x 72" FB Bed Area144" LR x 72" FB Slide Area20-40 Variable Strokes Per MinuteEquipment and FeaturesPneumatic Wet Clutch and BrakeAir CounterbalancesRecirculating Lube SystemT-Slotted Ram and BolsterDual Rolling Bolsters8-Point GibbingUpdated Allen Bradley Press Controls in 2020Light Curtains Front and Back76" Wide WindowsCan be seen under power in a plant upon request! This 600-ton CCI Straight Side Double Crank Press (Model SE4-600-144-72) offers a premier solution for heavy-duty metal stamping. Fully rebuilt in 2023, these 1989 vintage machines feature a massive 144" x 72" bed area and a 14" stroke, making them ideal for large-scale automotive and industrial components. Each straight side press is equipped with a pneumatic wet clutch and brake, dual rolling bolsters for rapid die changes, and 8-point gibbing for superior precision. Performance is enhanced by updated Allen Bradley controls and a variable speed drive reaching up to 40 SPM. With a 37" shut height, motorized adjustment, and 76" wide windows, these units provide the flexibility and safety modern manufacturers require. We currently have two of these used CCI presses available, both featuring front and back light curtains and recirculating lube systems. Contact us today to see these high-capacity mechanical presses under power in-plant.
