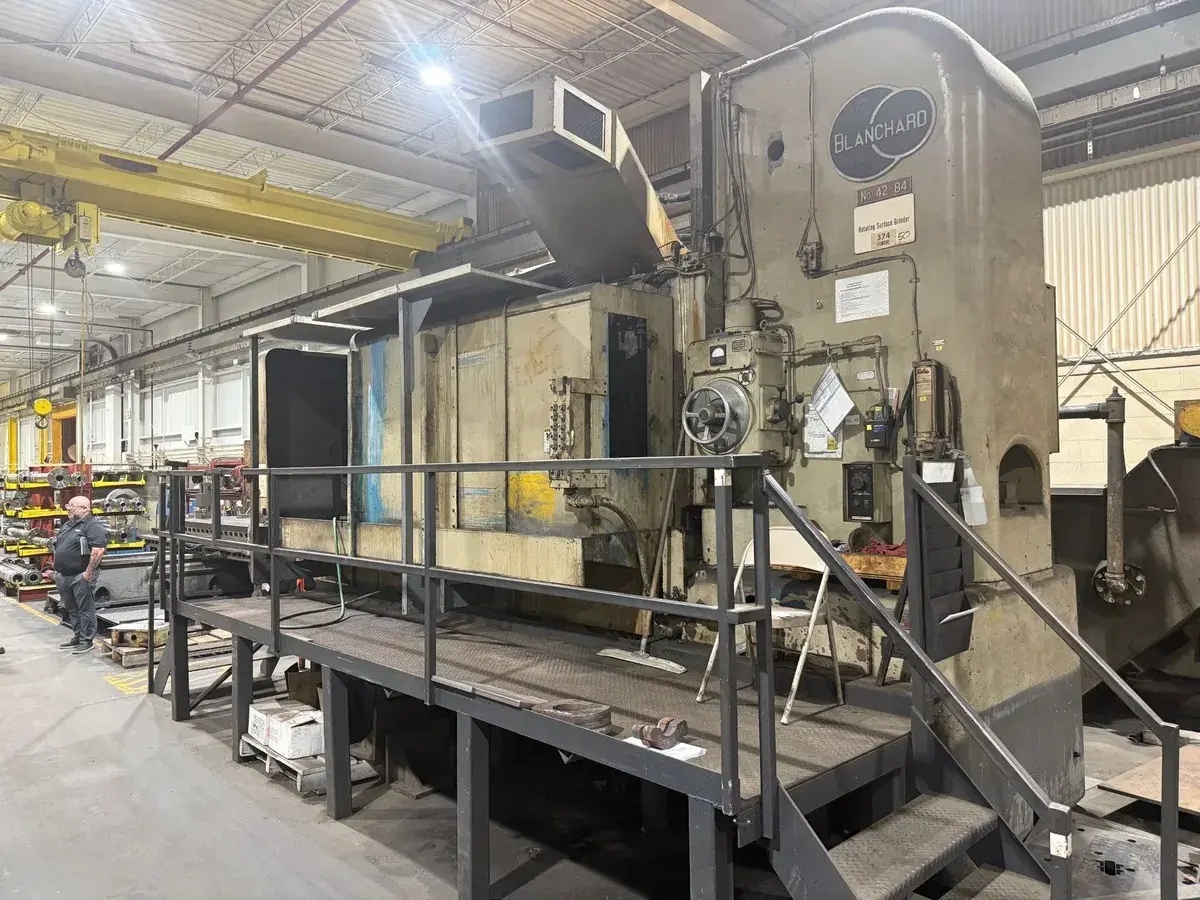

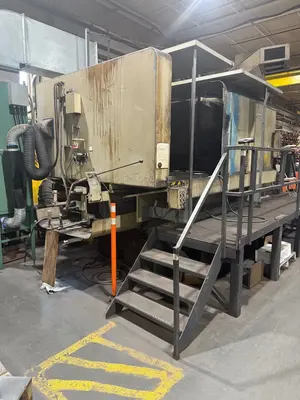

84" BLANCHARD EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER

Equipped With
84" BLANCHARD EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER
New: 1968
Specifications:
Chuck Diameter:  84 in
Grinding Type:  Vertical Spindle Rotary Surface Grinder
Swing Inside Coolant Guards:  96 in
Extended Vertical Range:  40 in
Grinding Wheel Diameter:  42 in
Maximum Table Load Capacity:  22,000 lbs
Table Speed Range:  3 to 11.9 RPM
Power Down Feed Range:  0.004 to 0.080 IPM
Spindle Motor:  100 HP
Head Elevation Motor:  7.5 HP
Table Rotation Motor:  5 HP
Table Traverse Motor:  7.5 HP
Overall Dimensions:  20 ft 9 in × 9 ft 5 in
Overall Height:  15 ft
Approximate Weight:  79,000 lbs
Equipped with:
Vertical Spindle Design

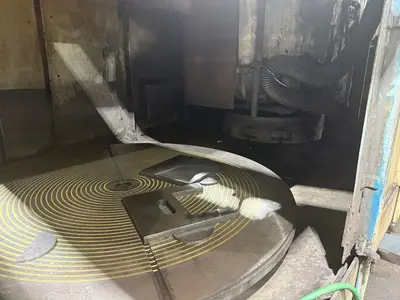

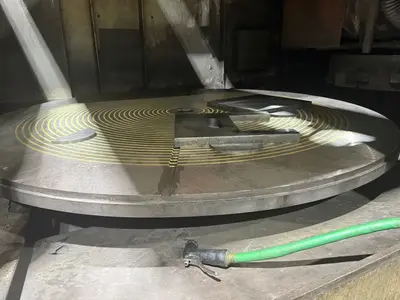

84 in Electro-Magnetic Chuck with Neutrofier & Rectifier
42 in Cortland Segmented Grinding Wheel
40 in Extended Column Height
Rapid Rise & Lower Wheel Head
Bijur Lubrication System
Hoffman Heavy-Duty Stand-Alone Coolant System
(Model 20591-3 & SCT-120, S/N 126710)
VMCS 3000 AER Stand-Alone Dust Collector (3 HP)
