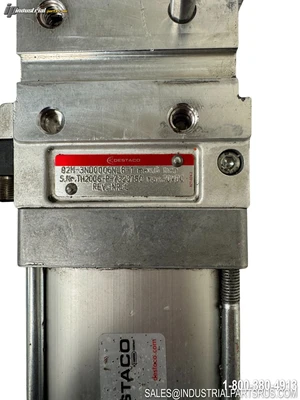

USED DESTACO 82M-3ND0006NL8-1
Overview
Description

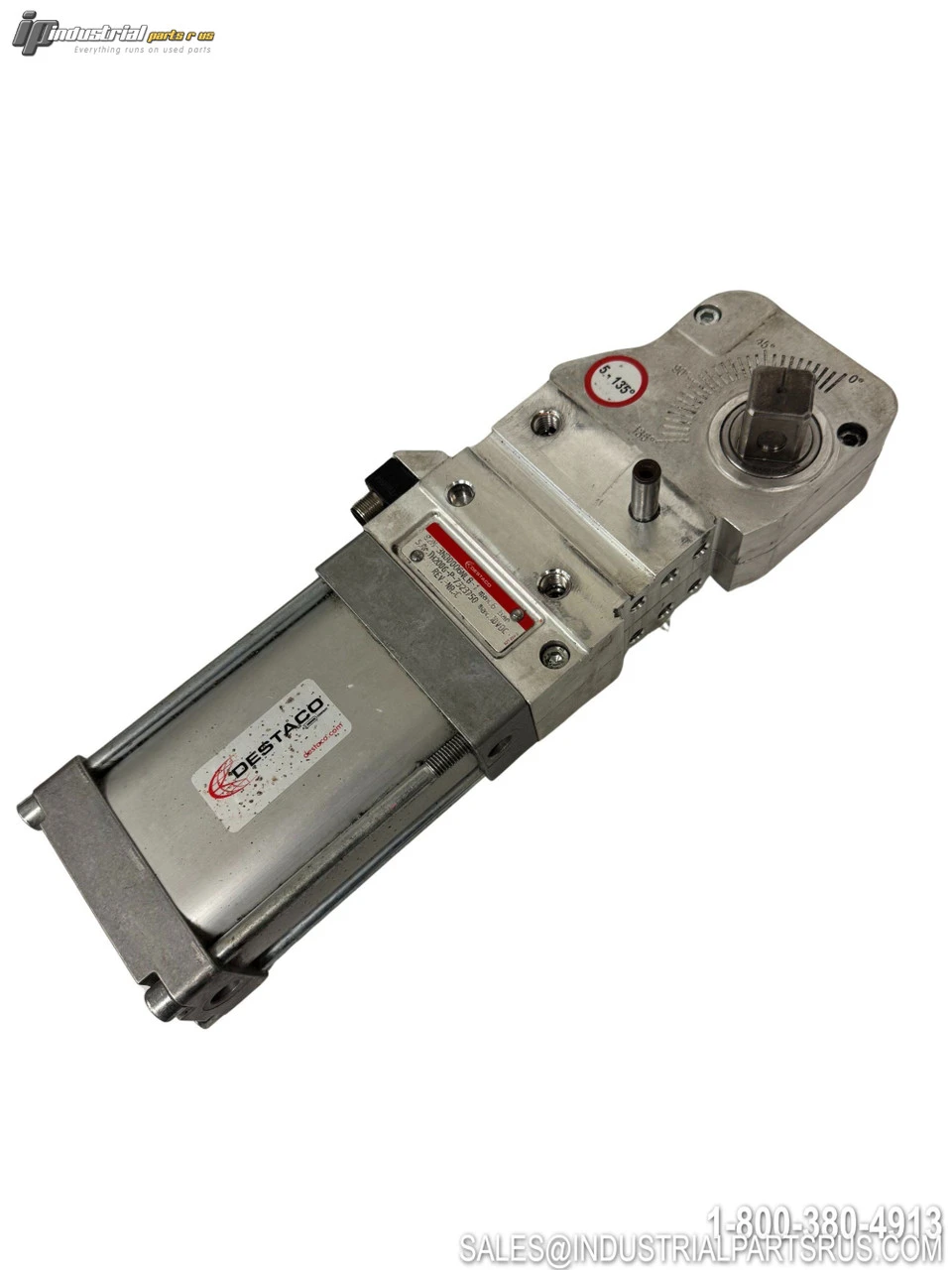

The Destaco 82M-3ND0006NL8-1 is an enclosed pneumatic power clamp from the 82M-3E series, designed for heavy-duty clamping applications in automotive and sheet metal processing environments. This pneumatic clamp features a 63mm cylinder bore with U-arm configuration and field adjustable opening angles, providing superior holding power and versatility for manual and automated fixture welding, positioning and locating applications.
Specification
Value
Brand
Destaco
Model/Part Number
82M-3ND0006NL8-1
Product Series
82M-3E
Product Type
Pneumatic Power Clamp
Weight
8.36 lb
Cylinder Bore
2.48 in (63 mm)
Shaft Size
26 mm
Max Holding Torque
1325 ft-lb (1300 Nm)
Clamping Arm Torque (5 Bar)
310 ft-lb (270 Nm)
Opening Angle
5° - 135°
Port Size
G 1/4 | 1/4-18 NPT
Clamp Arm Style
U-Arm (Center)
Hand Lever
Yes
Air Consumption (Double Stroke at 72 psi)
0.07 ft³
Product Function
Clamping
Configuration
Enclosed Power Clamp
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI1585
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 10.00
(in)
Height: 5.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Destaco
Part Number: 82M-3ND0006NL8-1
Shelf: K-67
Model: 82M-3ND0006NL8-1
MPN: 82M-3ND0006NL8-1
Type: Pneumatic Clamp
