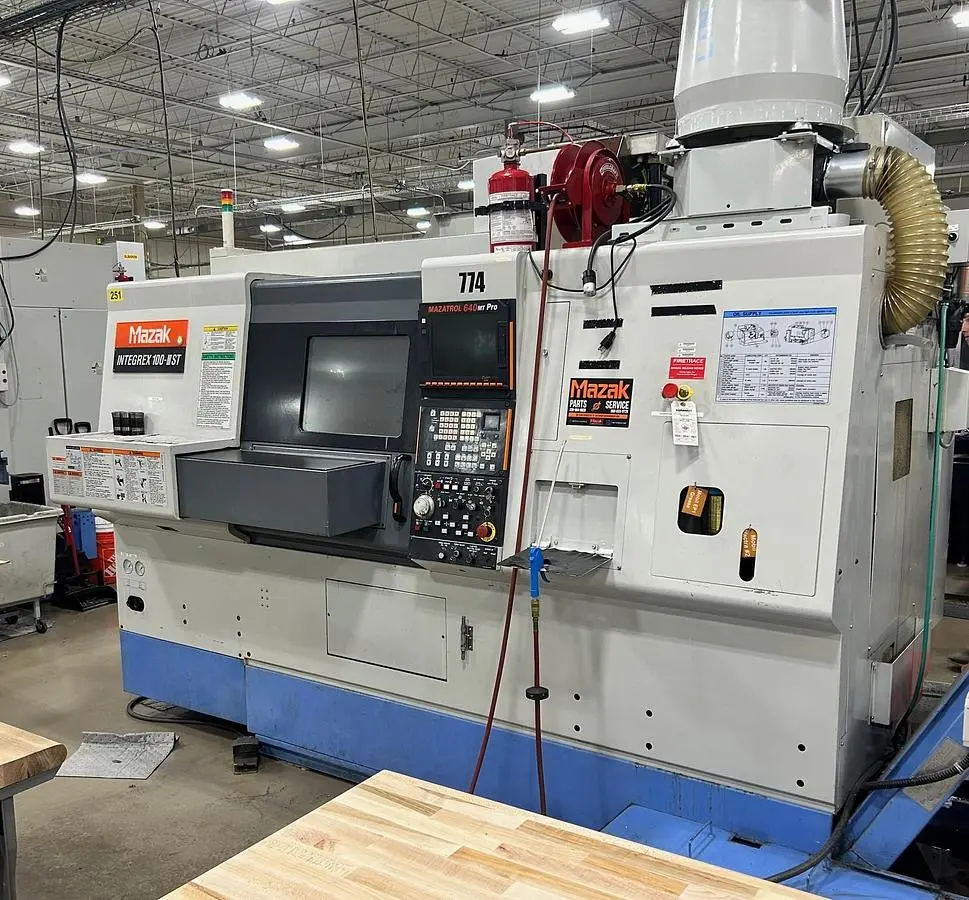

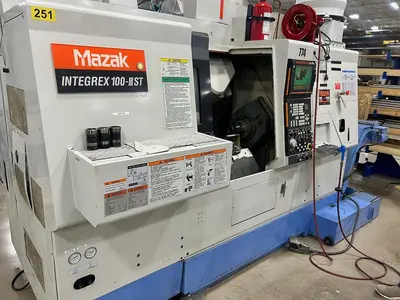

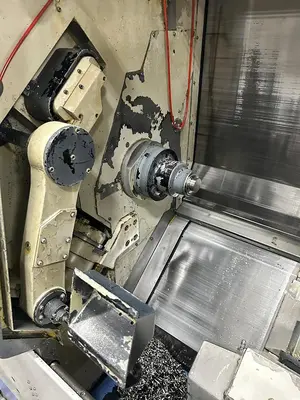

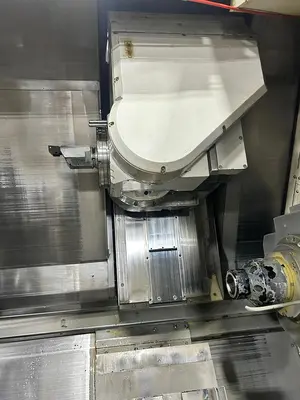

USED 2007 MAZAK INTEGREX 100-IIIST, PARTS CATCHER, CHIP CONVEYOR, FIRE SUPPRESSION SYSTEM

Y-axis Capabiliity

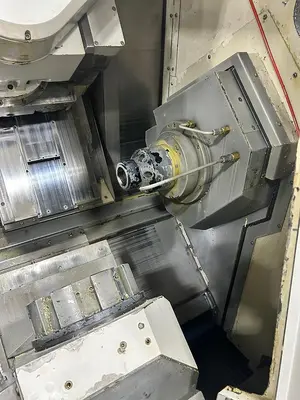

Subspindle
Fire Suppression System

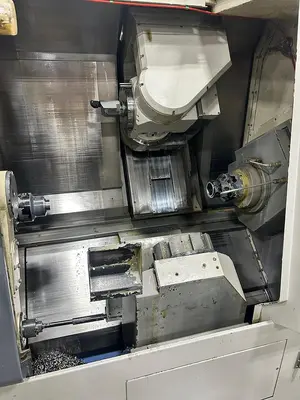

9 Station Lower Turret
C Axis 0.0001 Degree Increment - Main
Live Milling/Drilling Capability
40 Station Tool Magazine
Automatic Tool Eye
Automatic Parts Catcher w/ Eject
Chip Conveyor
EIA/ISO Input Function
Milling Spindle Synchronous Tapping
Cardbus I/F (2 slots)
USB Port Interface
Coolant Through Milling Head
2nd Spindle Position 0.001 deg.
B Axis Head Index 5 degree by Clamp
Auto Chuck Jaws Open and Close
Windows XP Operating System for Mazak
Auto Power Off
15” Color LCD Monitor
Inch/Metric Conversion
LAN Port Interface
**New Spindle installed in 2023**

The 2006 Mazak Integrex 100-IIIST is a versatile CNC lathe designed for complex machining tasks, equipped with a Mazatrol Matrix control system featuring a Voice Advisor. It features both a main and subspindle, each with hydraulic chucks measuring 6 inches, capable of speeds up to 6,000 RPM. The machine boasts a maximum swing of 21.46 inches, with a machining length capacity of 29.65 inches, providing ample space for a variety of workpieces.

This model offers comprehensive axis travels, including a 225-degree B-axis tilt and fine C-axis spindle rotation at 0.0001-degree increments, enhancing precision in intricate operations. The X-axis travels are 16.14 inches for the upper turret and 8.66 inches for the lower, while the Y-axis upper turret travel is +/- 2.75 inches, enabling detailed machining from various angles. The rotary tool and spindle motors provide robust power, with maximum rotary tool speeds of 12,000 RPM powered by a 7.5 HP motor.

With a 40-station tool changer and a 9-station lower turret, the Integrex 100-IIIST efficiently handles a comprehensive range of tools, thereby maximizing productivity in a compact space. Its dimensions are 121.06 x 97.73 x 88.3 inches, and it weighs approximately 18,078 pounds, making it a durable yet manageable installation for diverse industrial environments.

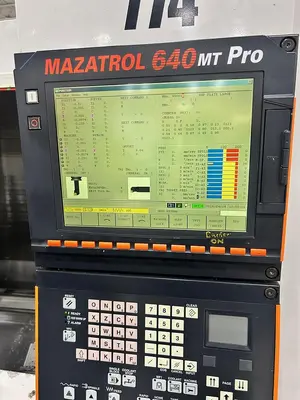

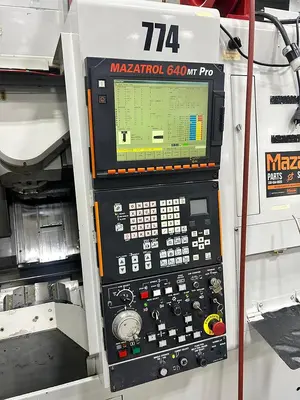

Control: Mazatrol 640MT Pro
Chuck Sizes Main / Subspindle: Collet Chuck / Collet Chuck
Maximum Swing: 21.46"
Maximum Swing Using Y Axis: 16.22" - 21.46"
Maximum Swing Over Cross Slide: 13.86"
Maximum Swing Over Lower Turret: 15.75"
Maximum Cutting Diameter - Chucking: 21.46" Upper Turret
Maximum Machining Length: 29.65"
Maximum Distance Between Chuck Faces: 28.9"
B-Axis Tilt Movement: 225 Degrees
C-Axis Spindle Rotation - Both Spindles: 0.0001 Degrees
X-Axis Travel Upper Turret / Lower Turret: 16.14" / 8.66"
Y-Axis Travel Upper Turret ONLY: +/- 2.75"
Z-Axis Travel Upper Turret / Lower Turret: 31.69": / 30.71"
W-Axis Subspindle Travel: 31.3"
Main & Subspindle Nose / Bore: A2-5" / 2.4"
Main & Subspindle Speeds: 6,000 RPM
Main & Subspindle Motor: 15 HP / 10 HP
Number of Tool Positions: 40 Station Tool Changer
Number of Turret Positions: 1 Position Turret
Turret Spindle Type: KM63
Rotary Tool Speed / Rotary Motor: 12,000 RPM / 7.5 HP
Number of Lower Turret Positions: 9 Station Turret
Machine Dimensions: 121.06" x 97.73" x 88.3"
Machine Weight: 18,078 lbs.
