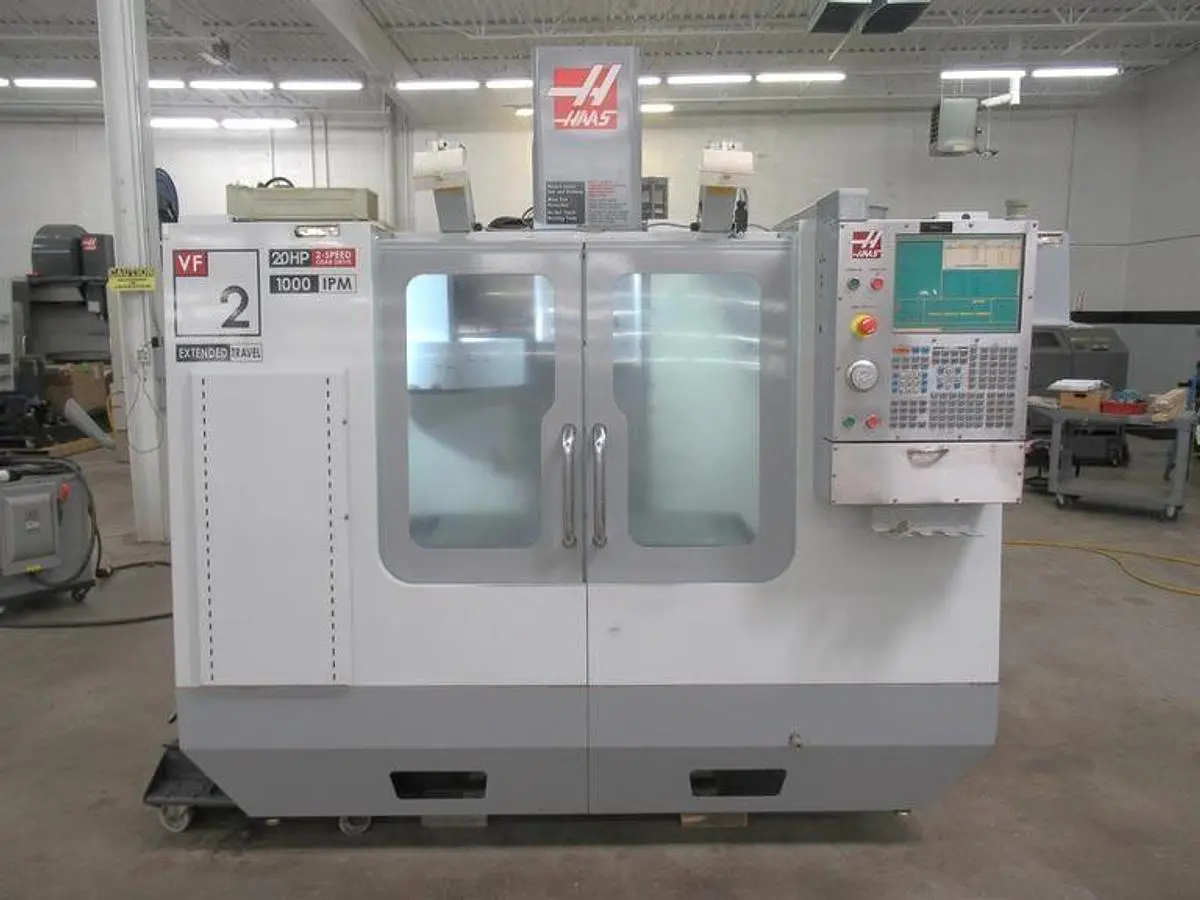

USED 2009 HAAS VF2YT

Extended Y-Axis Travel
Auger Style Chip Conveyor
20 Station Umbrella Style Tool Changer
Visual Quick Code Programming
Rigid Tapping
2 Speed Gearbox
Coolant System with Tank & Pump
High Intensity Lighting
USB Port Interface
RS 232 Port Interface
Wired 360-480V Electrics

**Machine Motion Hours 11,319**
**Spindle Run Hours 8,129**

Machine Control: Haas Control with Coldfire 2 Processor
Table size: 36" x 18"
Maximum Table Load: 3,000 lbs
X-axis travel: 30"
Y-axis travel: 20"
Z-axis travel: 20"
Spindle taper: CAT 40
Spindle speed: 7,500 RPM
Spindle motor: 20 HP
Distance Spindle Nose to Table Top: 4"-24"
Tool magazine capacity: 20 Station Umbrella Style ATC
Rapid traverse rates: 1,000 IPM
Machine dimensions lxwxh: 93"x90"x94"
Machine weight: 7,800 lbs
