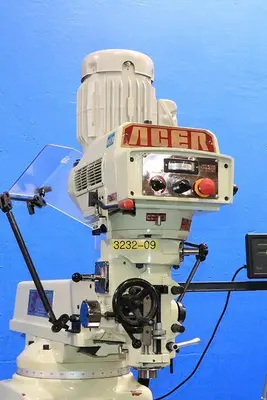

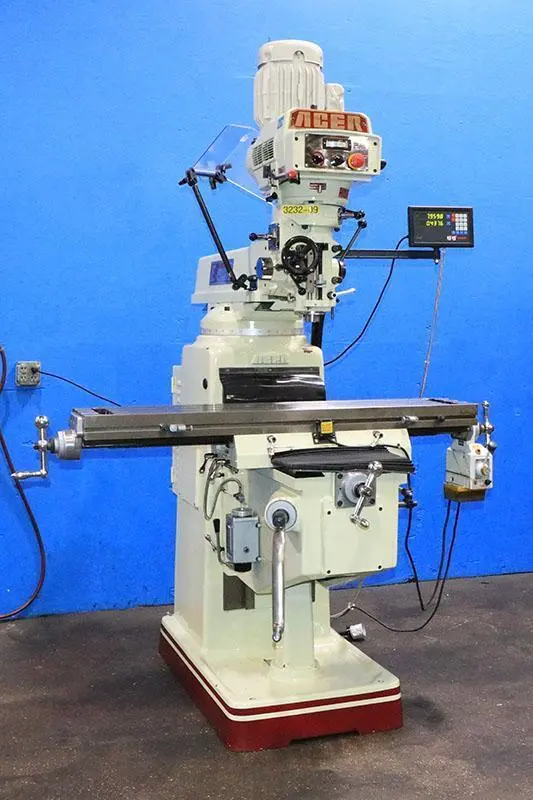

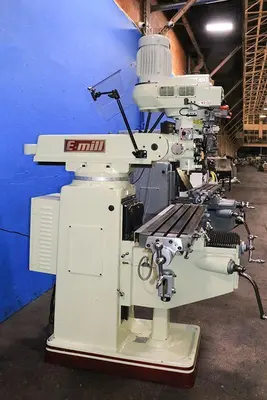

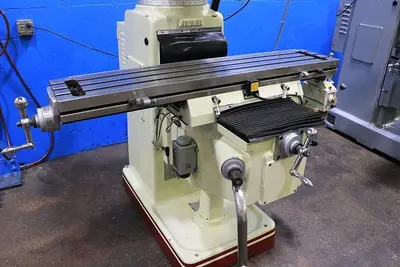

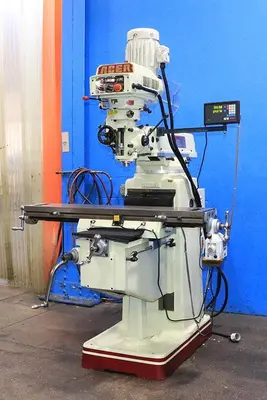

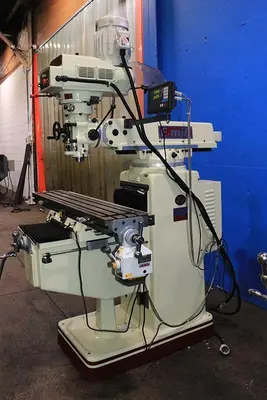

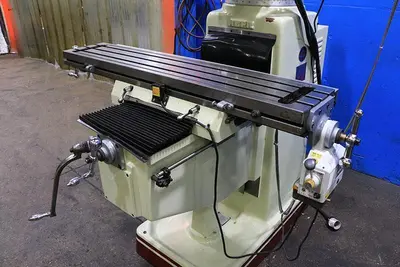

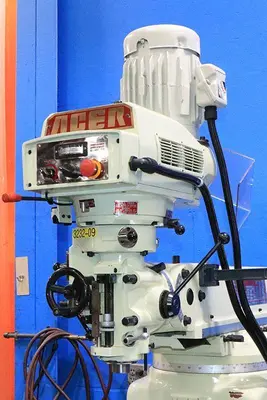

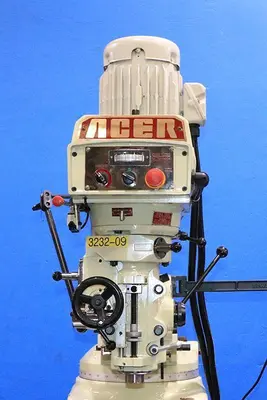

ACER VERTICAL MILLING MACHINE
MODEL: E-MILL 3VK
NEW: 2001
SPECIFICATIONS:
TABLE SIZE ........................ 10" X 50"
LONGITUDINAL TABLE TRAVEL ......... 34"
CROSS TRAVEL ...................... 16"
QUILL TRAVEL ...................... 5"
VERTICAL KNEE TRAVEL .............. 16"
RAM TRAVEL ........................ 20"
INFINITELY VARIABLE SPEED RANGE ... 60-4,500 RPM
SPINDLE TAPER ..................... R-8
QUILL TRAVEL ...................... 5"
QUILL FEEDS ....................... 0.0015", 0.003", 0.006"
MAXIMUM COLLET CAPACITY ........... 3/4"
APPRROXIMATE DIMENSIONS ........... 79" x 74" x 90"H
APPROXIMATE WEIGHT ................ 3,100 LBS.
TOSHIBA PC INVERTER FOR SPINDLE CONTROL
BALDOR SUPER "E" 3 HP SPINDLE MOTOR
ALLEN-BRADLEY ELECTRICAL COMPONENTS
NEWALL TOPAZ TWO AXIS DIGITAL READOUT
ALIGN POWER FEED FOR LONGITUDINAL TABLE TRAVEL
PRECISION & HARDENED DOVETAIL WAYS
ONE-SHOT LUBRICATION SYSTEM
FOB: ORIGIN
