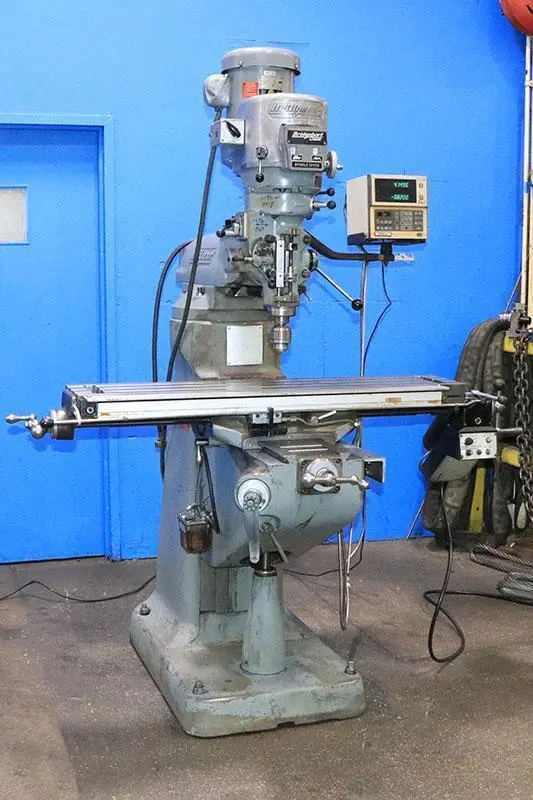

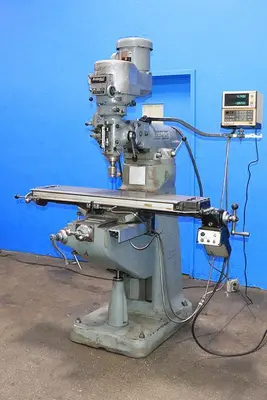

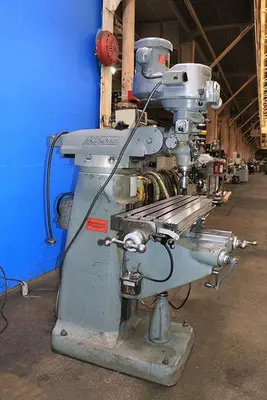

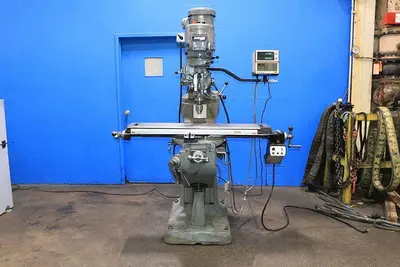

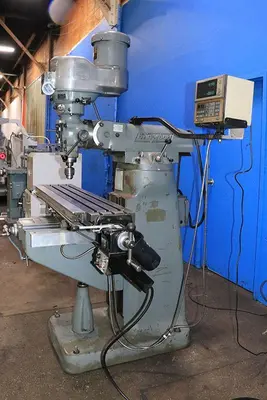

BRIDGEPORT VERTICAL MILLING MACHINE, MODEL: SERIES I

BRIDGEPORT VERTICAL MILLING MACHINE
MODEL: SERIES 1
SPECIFICATIONS:

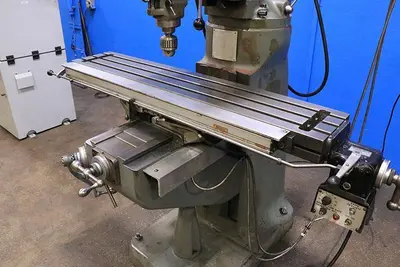

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE. 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
    TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... #30 QUICK CHANGE
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS


MITUTOYO TWO AXIS DIGITAL READOUT

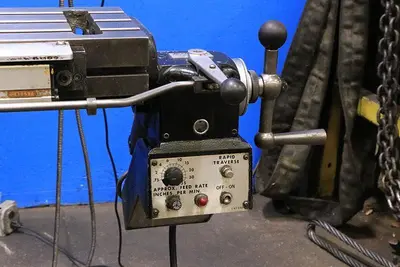

BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL

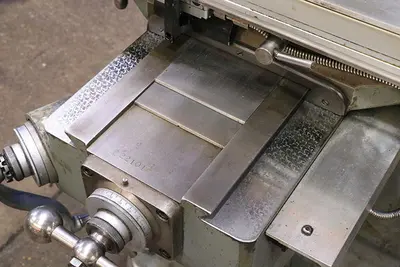

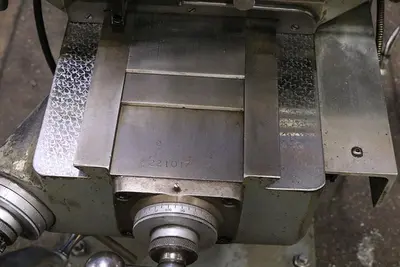

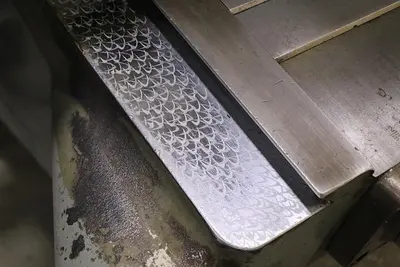

CHROME WAYS
JACOBS DRILL CHUCK
BIJUR AUTOMATIC LUBRICATION SYSTEM

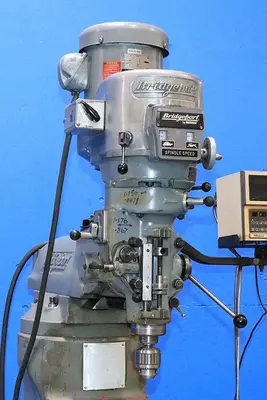

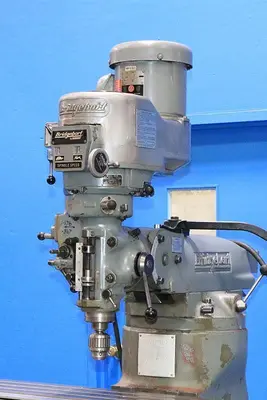

BRIDGEPORT SERIES I MILLING HEAD
2 HORSEPOWER SPINDLE MOTOR

FOB: ORIGIN
