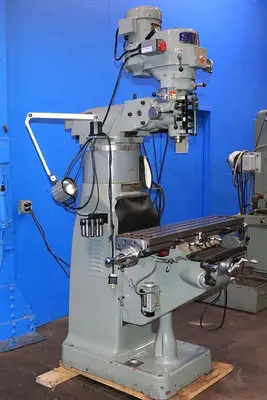

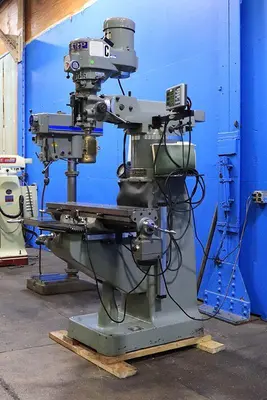

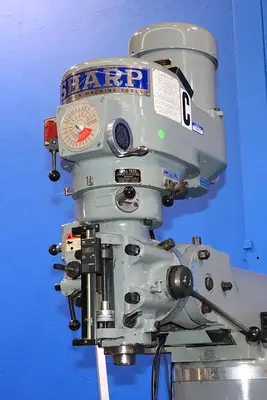

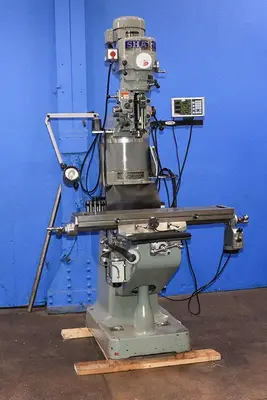

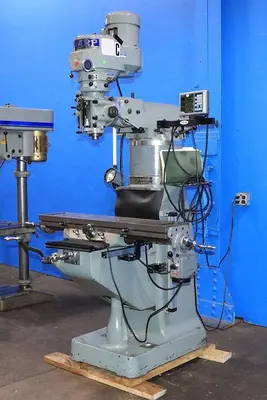

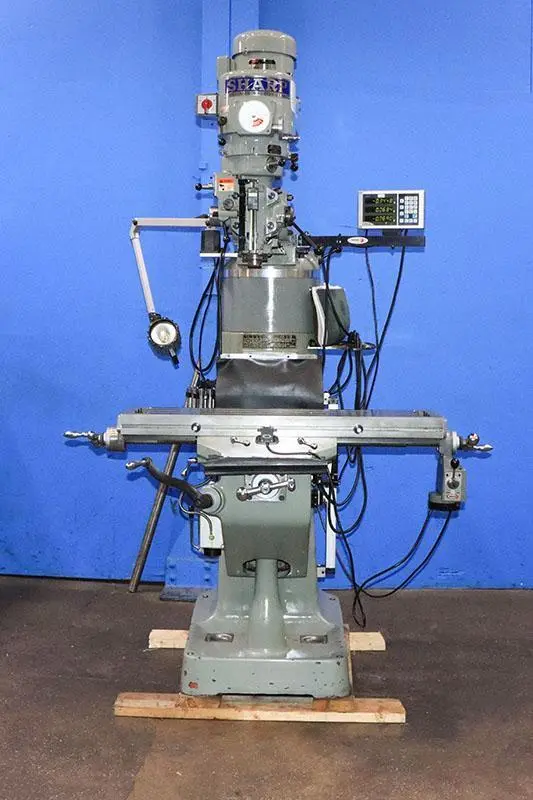

SHARP VARI-SPEED MILLING MACHINE
MODEL: LMV
NEW: 2007
SPECIFICATIONS:

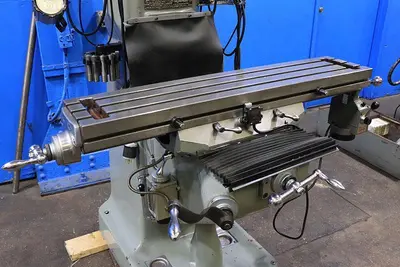

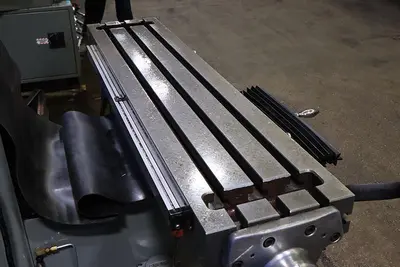

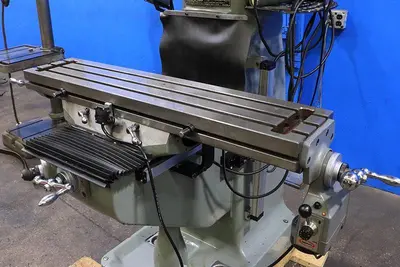

WORKING AREA OF TABLE ................ 9" x 42"
TABLE LONGITUDINAL TRAVEL ............ 30"
TABLE CROSS TRAVEL ................... 12"
VERTICAL KNEE TRAVEL ................. 16"
RAM TRAVEL ........................... 12"
SPINDLE QUILL TRAVEL ................. 5"
SPINDLE TAPER ........................ R-8
SPINDLE SPEED RANGE .................. 60 - 4500 RPM
SPINDLE FEEDS (31 PER REV OF SPINDLE). .0015, .003, .006

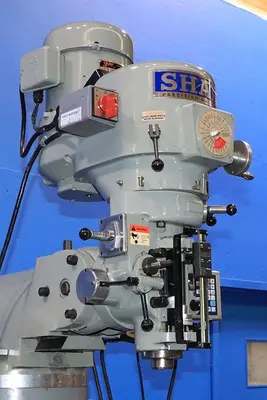

HEAD SWIVEL .......................... 360 DEGREES
HEAD TILT (RIGHT TO LEFT) ............ 45 DEGREES
HEAD TILT (UP AND DOWN) .............. 45 DEGREES
APPROX WEIGHT ........................ 2,400 LBS
FAGOR THREE AXIS DIGITAL READOUT
FOR TABLE LONGITUDINAL, CROSS & KNEE TRAVELS

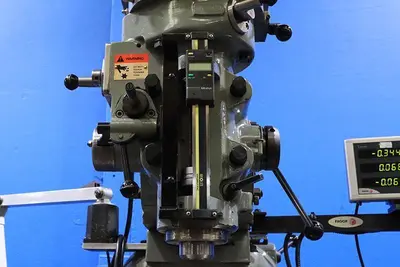

MITUTOYO DIGITAL READOUT FOR QUILL TRAVEL
SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL
8" RISER BLOCK

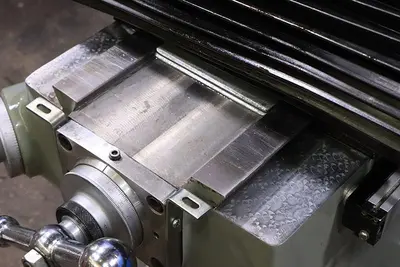

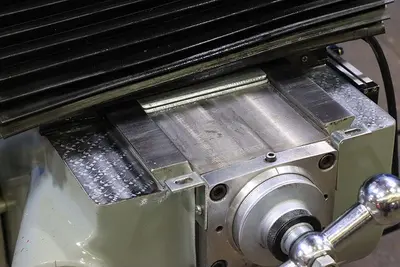

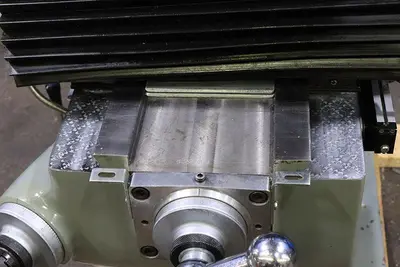

CHROME WAYS
HALOGEN WORK LIGHT
ONE SHOT LUBRICATION
3 HORSEPOWER SPINDLE MOTOR
FOB: ORIGIN
