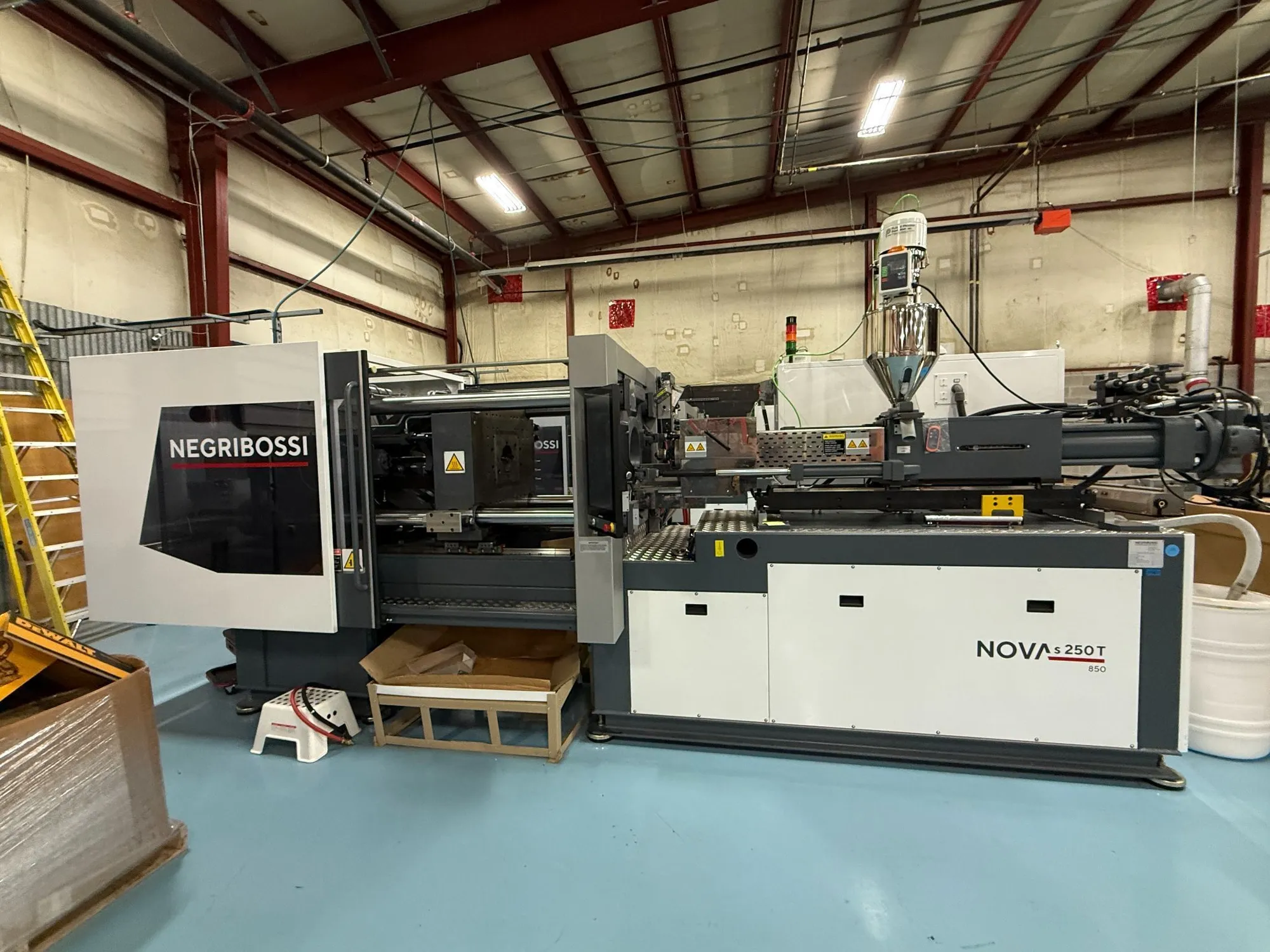

USED 2022 NEGRI BOSSI M 371
Overview
Specifications
| Type | Servo Hydraulic | Servo Hydraulic |
|---|---|---|
| Clamping Force Tonnage | 250 T | 226.796 t |
| Barrel Code | B | B |
| Shot Volume (PS) | 28.2 oz | 799.5 g |
| Screw Diameter | 2.36" | 59.944 mm |
| Maximum Injection Pressure | 26700 psi | |
| Maximum Holding Pressure | 26700 psi | |
| Screw Speed STD | 250 rpm | 250 RPM |
| Nozzle Touch Force | 7.1 T | 6.441 t |
| Tie Bar Distance H | 35.4" | 899.16 mm |
| Tie Bar Distance V | 31.1" | 789.94 mm |
| Platen Dimension H | 24.8" | 629.92 mm |
| Platen Dimension V | 20.9" | 530.86 mm |
| Clamp Stroke | 21.65" | 549.91 mm |
| Mold Height Min | 7.87" | 199.9 mm |
| Mold Height Max | 25.6" | 650.24 mm |
| Injection Orientation | Horz | Horz |
| Hours | 3,030 hr. | 3,030 hr. |
| Machine under power | Under Power no Mould in Machine | Under Power no Mould in Machine |
| Dimensions | 23.17 ft. X. 5.28 ft. X. 7.22 ft | 23.17 ft. X. 5.28 ft. X. 7.22 ft |
| Weight | 21,300 | 21,300 |
