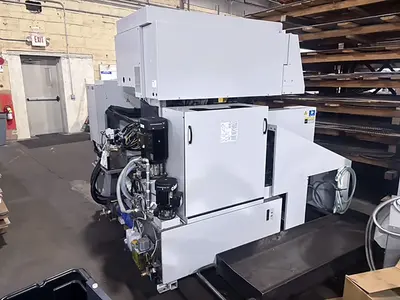

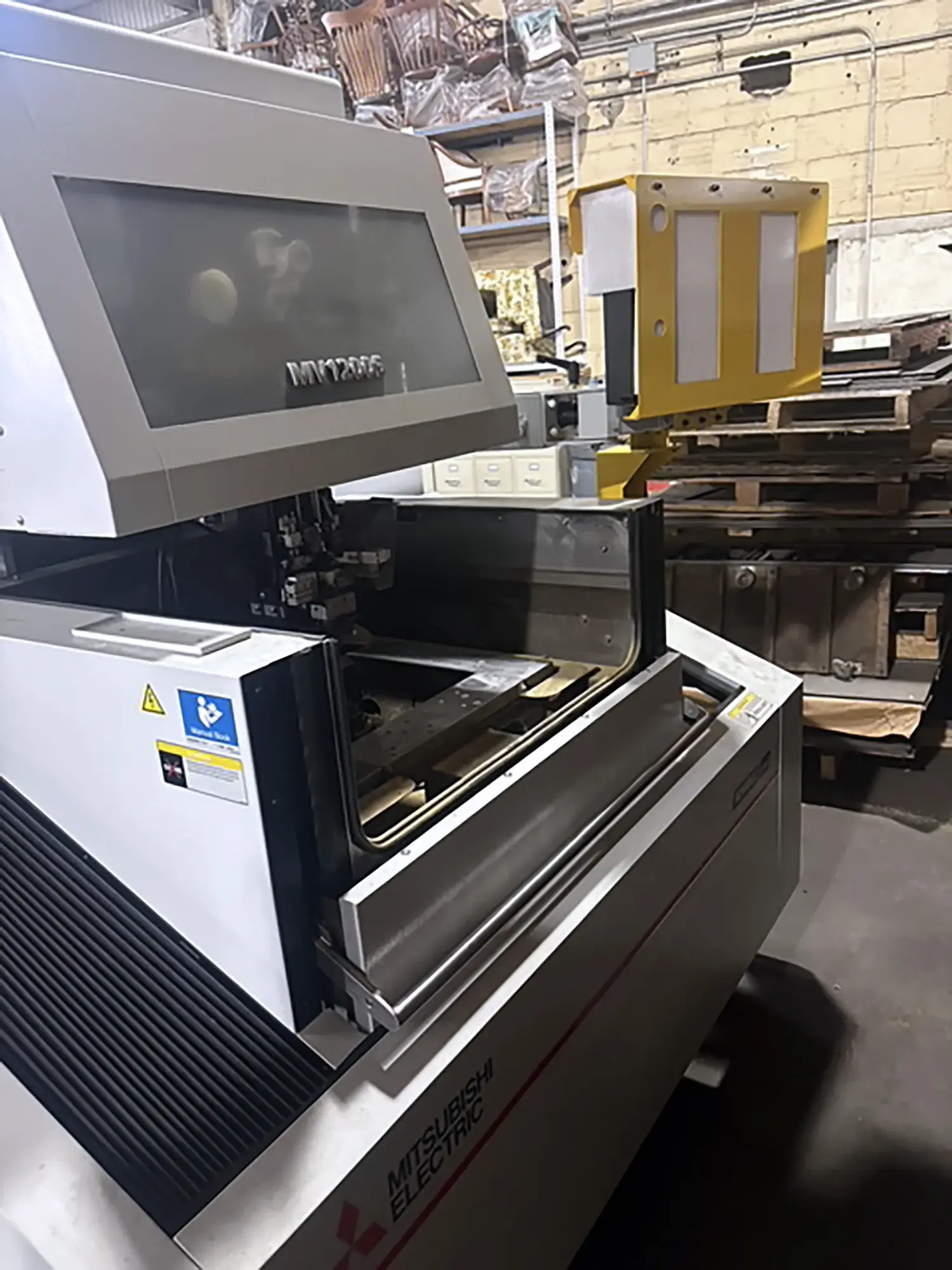

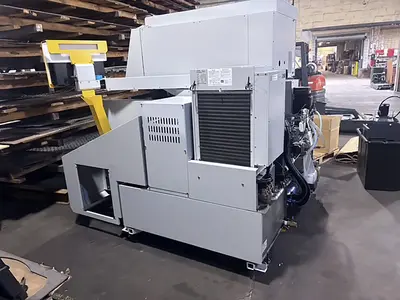

USED 2022 Mitsubishi MV-1200-S

The Mitsubishi MV1200-S Wire EDM (2022) with Mitsubishi M800 Control is a high-precision CNC wire cutting machine engineered for intricate, burr-free machining of hardened tool steel, titanium, carbide, and other conductive materials. Ideal for tool & die, aerospace, medical, electronics, and automotive industries, it delivers exceptional accuracy, deep-profile cutting, and stress-free machining for complex, tight-tolerance components.

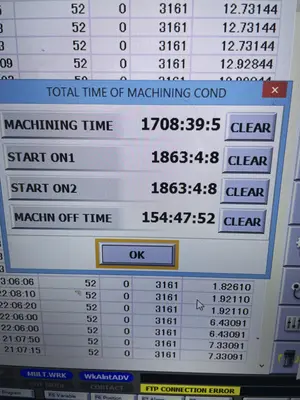

Total Cutting Hours: 1708
Max. workpiece dimensions: 31.9 x 27.6 x 8.5 (in)
Workpiece Weight: 1,100 (lbs)
Table Dimensions: 25.2 x 17.7 (in) (3-sided)
Machining Range: 15.7 x 11.8 x 8.7 (in)
U/V Travel: ±2.4 x ±2.4 (in)
Resolution (in) (Absolute Scales): .00002 (2 Millionths)
Taper Angle: 15° @ 8.0"
Table Rapid Feed: 51.2 (in/min)
Wire Diameter: .004-.012 (.010 Std.) (in)
Minimum Wire Thread Start Hole: .020 (in)
Maximum Workpiece AT Height: 8.7 (in)
Wire Tension: 50 ~ 2500 (g)
WIRE SPOOLING SPEED: 0 ~ 11.8 (in/sec)
Filter System: Paper cartridge (2x)
Filter Precision: 5 micron
Ion-Exchange Resin: 1 ft³ (6.4 gal. dry)
FILTER TANK CAPACITY: 145 (gallons)
Overall Machine Unit Dimensions: 79.7 x 106.4 x 79.3 (in)

Mitsubishi M800 Series Control
19" Touch Panel Operator Control

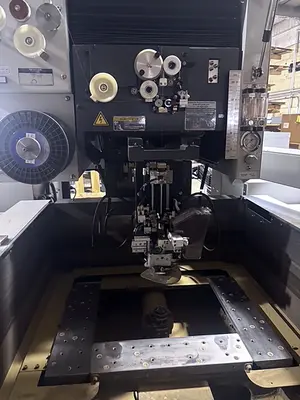

3-Sided Hardened Stainless Steel Work Table
Fine Finish Option (PF Circuit 6.04 Micron Ra Possible)

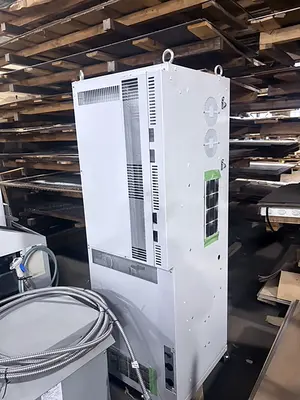

Powergy Line Filter (Incoming Power Conditioner)
Integrated D/I Water Coolant System
Integrated Two Cartridge Filtration System

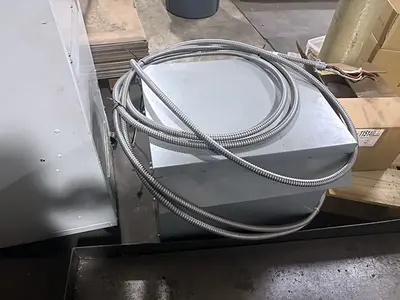

15kVA Low Voltage Distribution Transformer - Three Phase - 240Δ - 208Y/120V

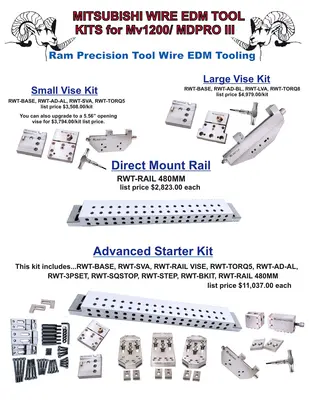

Included Tooling Mitsubishi Advanced Starter Kit - Includes RWT-BASE / RWT-SVA / RWT-RAIL VISE / RWT-TORQ5 / RWT-AD-AL / RWT-3PSET / RWT-SQSTOP / RWT-STEP / RWT-BKIT / RWT-RAIL 480MM
Mitsubishi Large Vise Kit - Includes RWT-BASE / RWT-AD-BL / RWT-LVA / RWT-TORQ8
