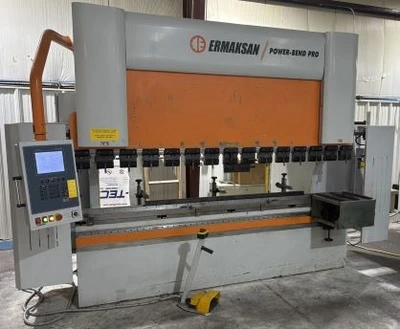

USED ERMAKSAN CNC POWERBEND PRO 3100-135

ERMAK (USED) MODEL CNC POWERBEND PRO 3100-135 HYDRAULIC PRESS BRAKE

149 US TONNAGE
122" BENDING LENGTH
102.4" DISTANCE BETWEEN HOUSINGS
10.8" STROKE
21.7" DAYLIGHT(OPEN HEIGHT)
16.1" THROAT DEPTH
35.4" TABLE HEIGHT
3.54" TABLE WIDTH
472.2"/MIN APPROACH SPEED
23.4"/MIN BENDING SPEED
283.3"/MIN RETURN SPEED
31.5" BACK GAUGE TRAVEL (X-AXIS)
14.8 HP MAIN MOTOR
2 HP BACK GAUGE MOTORS (X, R)
52.8 US GALLONS OIL CAPACITY

FEATURES

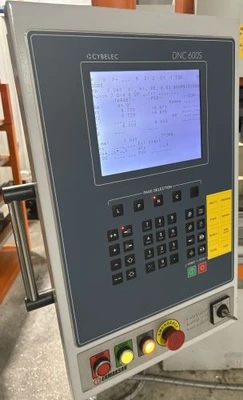

- CYBELEC DNC600S CONTROLER
- 4 AXIS (Y1, Y2, X, MANUAL R)
-- MANUAL R
-- CNC X-AXIS BACK GUAGE
-- SYNCRONIZATION OF Y1+Y2 AXIS WITH OPTIC
LINEAR SCALES ARE SENSATIVE UP TO .001MM
- MANUAL ANTI DEFLECTION CROWNING SYSTEM
- AKAS POINT OF OPERATION LASER GUARDING

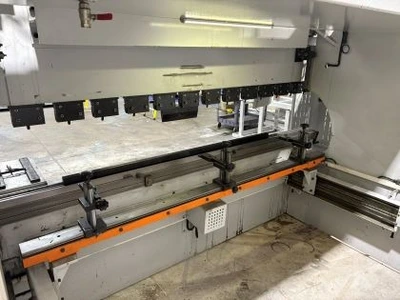

- UNIVERSAL DIE RAIL
- PROMECAM STYLE QUICK RELEASE TOOL CLAMPS

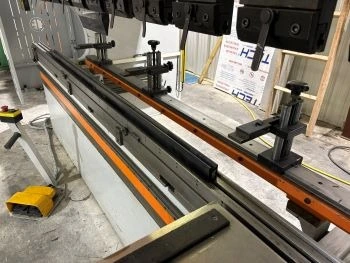

- 31.5" SERVO-DRIVEN BALLSCREW BACKGAUGE
- PHOTOCELL (CAT.04) REAR GUARD FIESSLER/W2000 SICK
- SIDE GUARDS WITH SAFETY SWITCH

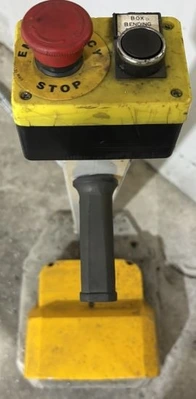

- DOUBLE FOOT PEDAL
- SIEMENS ELECTRIC SYSTEM
- 240/480 VOLT ELECTRICAL
- FRONT SLIDING SUPPORT ARMS
Power: (3-Phase)
