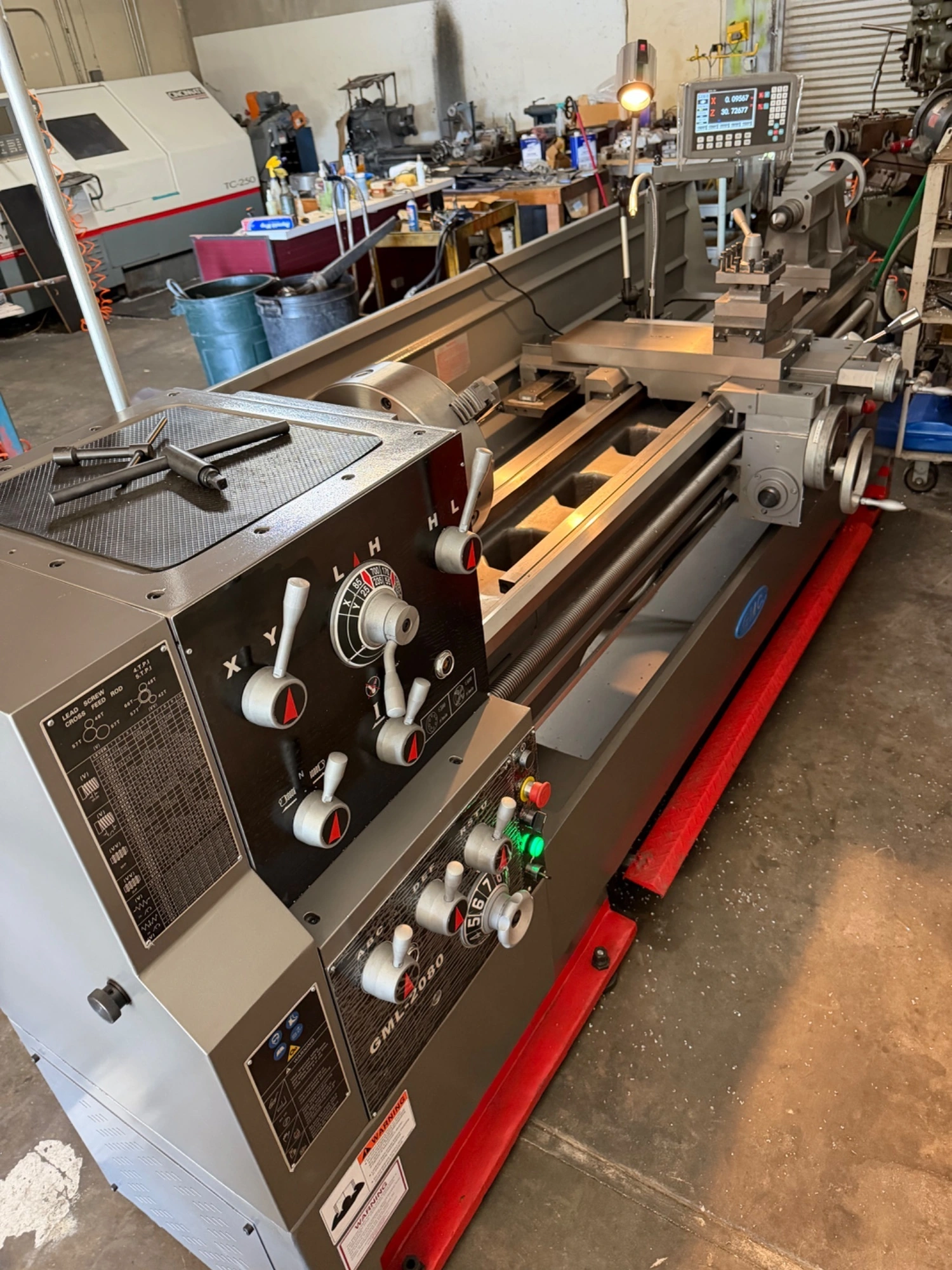

USED 2025 GMC GML-2080

2025 GMC GML-2080 GAP BED ENGINE LATHE AS NEW #8201

DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

SPECIFICATIONS:
Max. swing over bed 20"
Max. length of workpiece 80"
Max. swing over cross slide 12 1/2"
Max. Swing in gap 29-1/8"
Width of Bed 12"
Effective length in gap to spindle 6"
Effective length in gap to chuck jaws 3 1/2"
Spindle bore 3 1/8" | D1-8
Taper of spindle center M.T. #7w/ reducing sleeve MT7/MT5
Spindle speeds 25-1,800 rpm / 12 steps
Longitudinal feeds 0.0011-0.063 IPR, 42 kinds
Cross feeds 0.0003-0.018 IPR, 42 kinds
Inch threads 2-112 TPI, 60 kinds
Metric threads 0.1-14 mm , 41 kinds
Diametral Pitch threads 4-112DP , 50 kinds
Module threads 0.1-7mm, 34 kinds
Max. travel of top slide 5"
Max. travel of cross slide 11 1/4"
Spindle length w/o chuck

Leadscrew length X TPI
17-1/2"
1 1/4" x 4 TPI
Diameter of tailstock quill 2-3/8”
Max. travel of tailstock quill
5-1/8”

Taper of tailstock quill center MT4
Main motor
10 HP 3 Ph.
Prewired: 220VAC / 35A
Optional: 440VAC / 20A
Coolant pump
1/8 HP 3 Ph.

Prewired: 220VAC
Optional: 440VAC

Net weight 6,350 lbs.
Overall dimensions, LxWxH 128" x 43" x 59"

Customer lost contract. Machine has not run one part. Please inquire for more information.
