USED 2014 MATSUURA LX-160
Overview
Description
– Brand New Spindle 2025 –
46k RPM – 42 Pallet changer – 338 Tool Changer

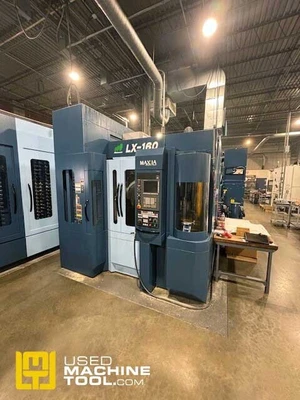

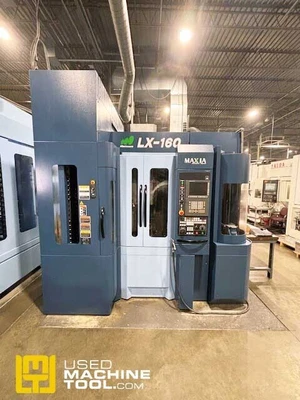

The Matsuura LX-160 is a high-speed, 5-axis vertical machining center engineered for shops that need micron-level accuracy, long unattended runs, and the flexibility to switch jobs without operator intervention. With a 46,000 RPM HSK-E40 spindle, a 338-tool matrix magazine, and a 42-pallet linear pallet system (LPS), the LX-160 is purpose-built for medical, aerospace, electronics, and precision die/mold work.
Specifications
| Control | CNC (L-TECH 30iB control) | CNC (L-TECH 30iB control) |
|---|
LX-160 MATSUURA L-TECH 30iB N/C
INPUT: INCH
HSK-40
46K RPM #30, HSK 40E, OIL AIR
10 TOOLS (HSK-E 40, DRUM TYPE)
FREQUENCY 60HZ
PLATE DISPLAY ENGLISH MATSUURA
SAFETY SPECIFICATION STD. MACHINE COLOUR
INTELLIGENT PROTECTION SYSTEM
CAMplete TRUE PATH SOFTWARE
MATSUURA INSTALLATION OF MACHINE

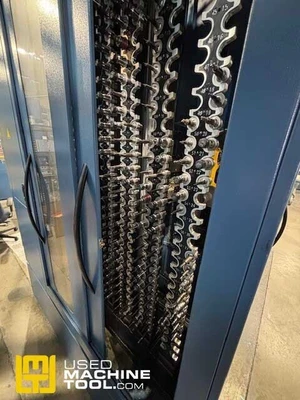

338 TOOLS (HSK-E 40, MATRIX TYPE, 338T BASE)
42 PALLET CHANGER (LINEAR PALLET SYSTEM)
SPIRAL CHIP CONVEYOR
AIR BLOW FOR CHIP SWARF REMOVAL
VACUUM TYPE COOLANT THRU
IN-PROCESS MEASURE (RENISHAW OMP400)
LASER B.T. DETECTION (BLUM LASER CONTROL NANO NT)
8 SETS OF EXTRA M FUNCTION
WEEKLY TIMER
3 COLOR PATROL LIGHT (RED, YELLOW, GREEN)
TOOL PRE-CHECK FUNCTION HIGH
SPEED/HIGH PRECISION & 5-AXIS PKG – Fanuc
30iB MMU VALUE PACKAGE_2013 – Fanuc 30iB
