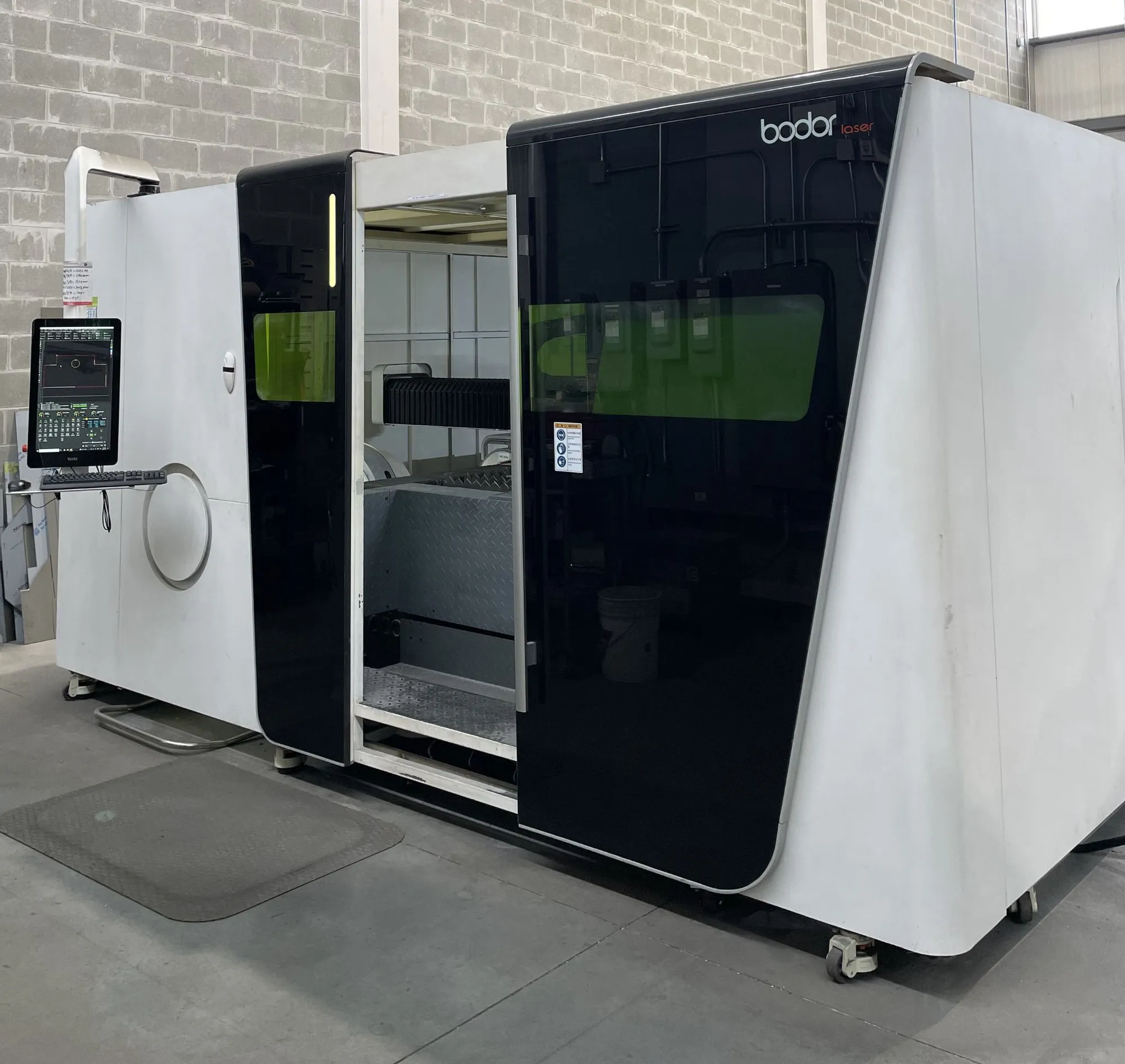

USED 2021 BODOR P3015

Boost throughput with the 2021 Bodor P3015. This dual-threat 3kW fiber laser handles both high-speed sheet metal and precision tube cutting via the integrated T6 system

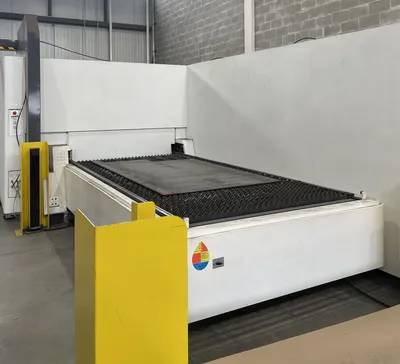

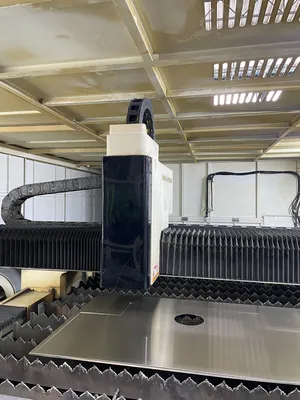

Bodor P3015 Sheet Laser
Work Area Travel (Max.) - X Axis (in.) 120.5
Work Area Travel (Max.) - Y Axis (in.) 60.25
Work Area Travel (Max.) - Z Axis (in.) 7.8

Resonator Type Fiber
Maximum Power Resonator (kW) 3.0
Maximum Postitioning Speed (IPM) - X Axis
Maximum Postitioning Speed (IPM) - Y Axis
Maximum Postitioning Speed (IPM) - Simultaneous 5,000

Table Max Loading Weight: 900 kg (1980 lbs)

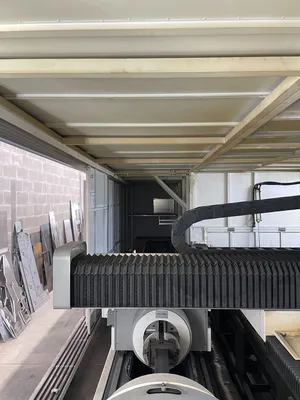

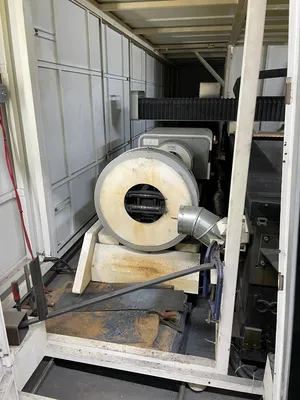

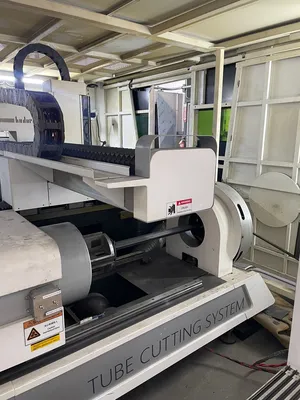

Bodor T6 Tube Laser
Max length: 6000 mm (20ft)
Max diameter: 200 mm (7-7/8in)
Max tube weight 100 kg (200 lbs)

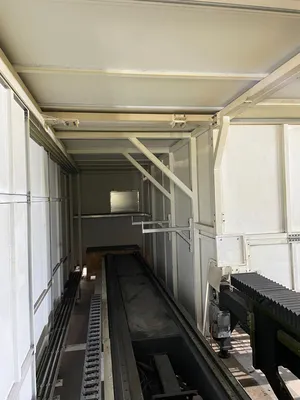

Wall support for storing material inside the machine

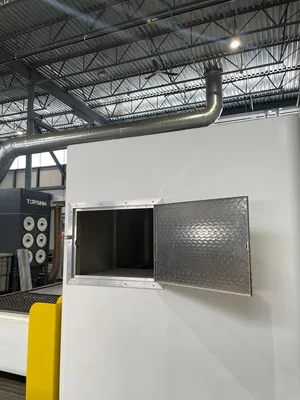

Rear access door to facilitate the loading of the material into the machine

Mild Steel: 3/4in
Stainless steel: 3/8in
Aluminum: 1/2in

Graphic Format Supported: DXF DWG AI PLT BMP DST LAS, etc
Dimension (L*W*H) mm : 15100*4100*2000mm (49.5*13.4*6.5ft)
Whole Machine Weight: 10500kg (23,100 lbs)
Power Requirements: 380V 3PHS 60Hz (includes transformer 575V)
Assist gas: oxygen, nitrogen, compressed air
Cooling Type: Water Cooling

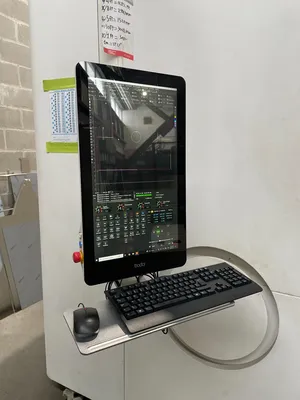

21.5" Touch Screen Display

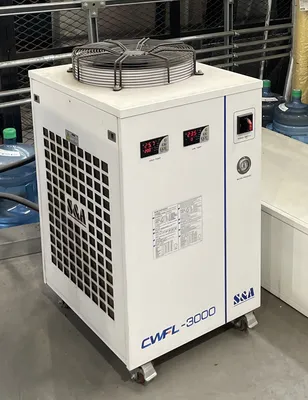

Water Chiller CWFL-3000BNS

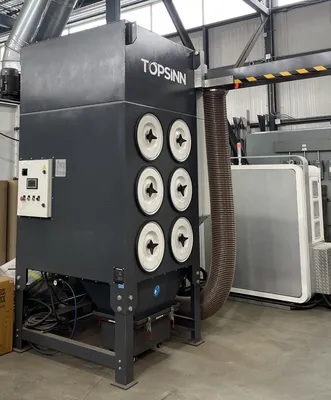

Dust Collector TODC-6L
IPG Resonator YLR-3000

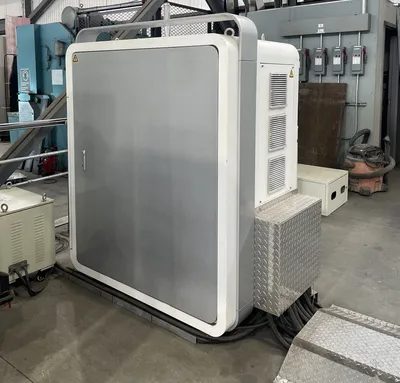

Electrical transformer MTH75A6 Marcus

*Specifications Subject to Buyer Verification.
