USED HYD-MECH S-20P SERIES III
Overview
Description

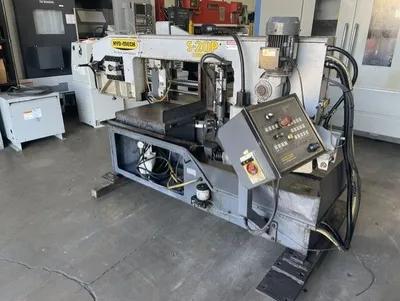

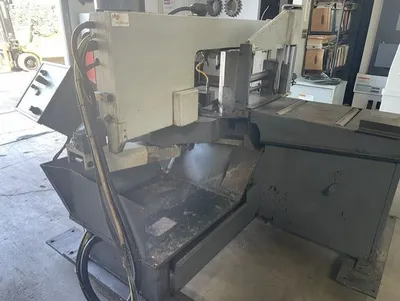

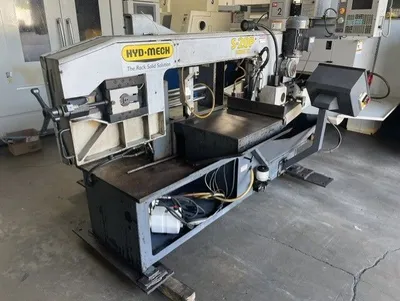

HYD-MECH S-20P Series III Horizontal Band Saw in used condition. Semi-automatic with 13"x18" rectangular and 13" round capacities. Powered by 3 hp, featuring a 1" wide, 0.035" thick, and 178" long blade. Ideal for precise cutting tasks.
Specifications
| Rect-Cap (H) | 13" | 330.2 mm |
|---|---|---|
| Rect-Cap (W) | 18" | 457.2 mm |
| Rounds-Cap | 13" | 330.2 mm |
| Power | 3 hp | 2.2 kW |
| Type (Auto, Manual, Semi) | Semi | Semi |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 178" | 4,521.2 mm |
HYD-MECH S-20P Series III Horizontal Band Saw #8197 #1
SPECIFICATIONS:
Capacity – Rectangle 13” x 18
Capacity – Round 13”
Capacity at 45 Degrees – Rectangle 13” x 10.75”
Capacity at 45 Degrees – Round 12”
Capacity at 60 Degrees – Rectangle 13” x 7.25”
Capacity at 60 Degrees – Round 8.5”
Blade Dimensions 13’6” x 1”
Blade Drive 3 HP
Blade Wheel Diameter 16”
Blades Speed 75-350 RPM
Hydraulic Drive Motor 1 HP
Coolant Tank Capacity 6 Gallons
Table Height 31”
Machine Weight 2,000 lbs.
Verified Dimensions 97” x 84”
Verified Height 55”
