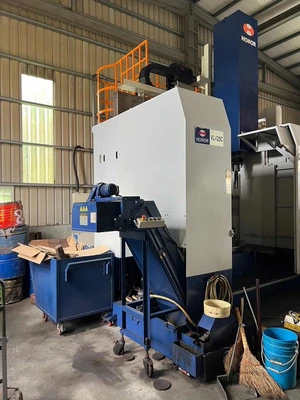

NEW 2019 HONOR SEIKI VL-125C
Overview
Description
2019 HONOR SEIKI VL-125C CNC VTL Table Dia. 49.2"; Swing 62.99", Live Tool, 12ATC FANUC 0I-TF

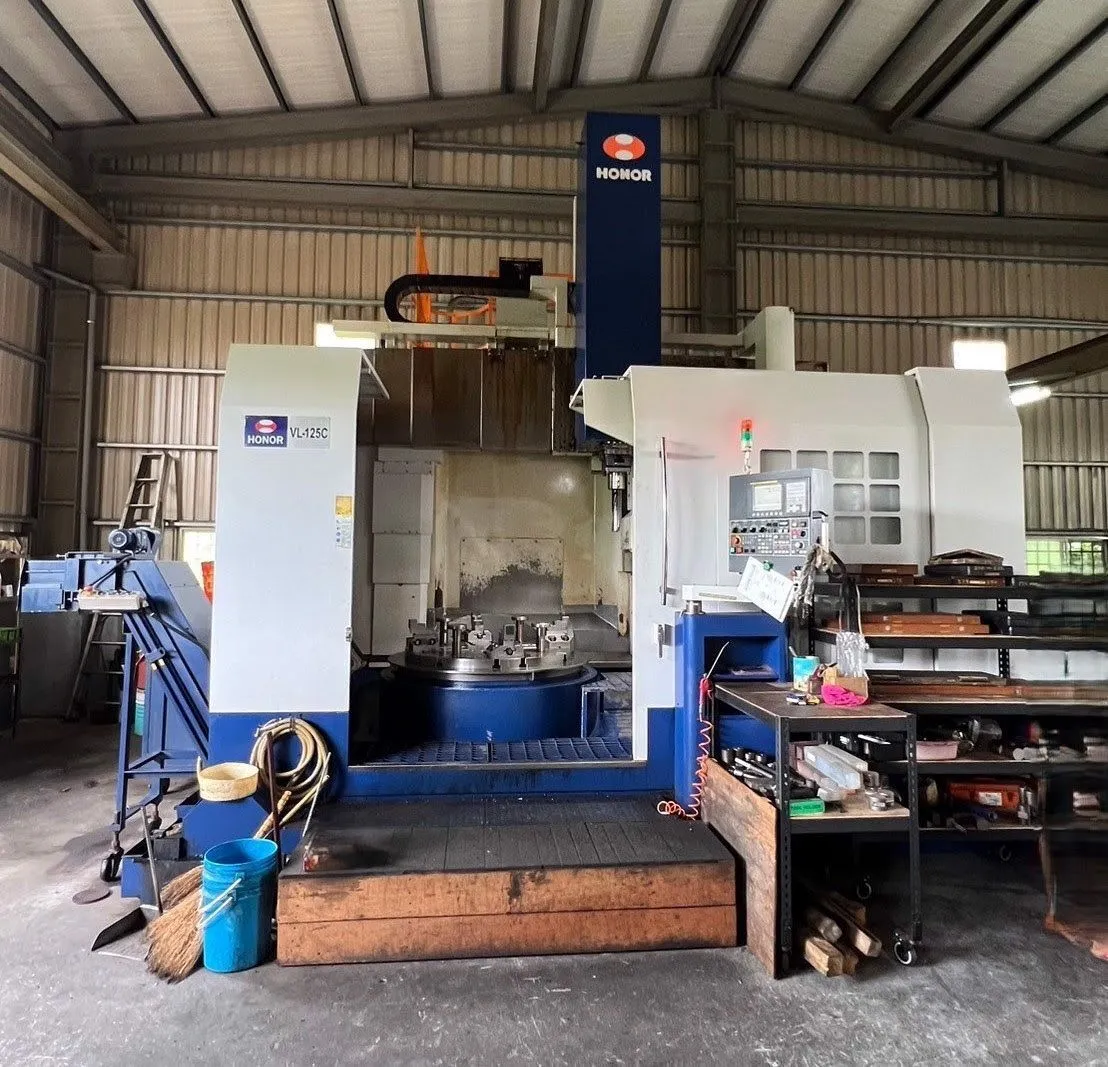

The Honor Seiki VL-125C is a heavy-duty CNC Vertical Turning Lathe (VTL) featuring a maximum swing and turning diameter of 1,600 mm (63") and a maximum turning height of 1,250 mm (49.2"). It is equipped with a 1,250 mm (49.2") table, a 12-position Automatic Tool Changer (ATC), and a 50 HP spindle motor for high-rigidity cutting, often utilizing a Fanuc 0i TF control.
Specifications
| Table Dia | 49.2" | 1,249.7 mm |
|---|---|---|
| Swing | 63" | 1,600.2 mm |
| Work Ht-U/R | 49.2" | 1,249.7 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 300 RPM | 300 RPM |

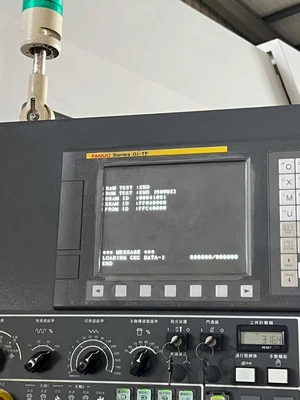

| Control | CNC (FANUC 0i TF) | CNC (FANUC 0i TF) |
Key Specifications (VL-125C)
Max Swing Diameter: 1,600 mm (63")
Max Turning Diameter: 1,600 mm (63")
Max Turning Height: 1,200 mm (47.2")

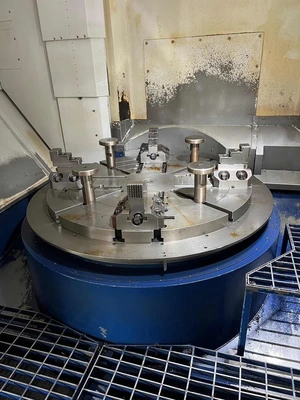

Table Diameter: 1,250 mm (49.21")
Max Workpiece Weight: 5,000 kg (approx. 11,000 lbs)
Table Speed: 3–300 RPM
Spindle Motor: 37/45 kW (approx. 50/60 HP)
X-Axis Travel: -200 to +950 mm
Z-Axis Travel (Ram): 900 mm (35.4")
ATC Capacity: 12 or 16 Positions
Tool Shank: BT50
Machine Weight: ~24,500 kg (54,000 lbs)
Equipped With
12ATC
Tool off set
Spindle oil cooler

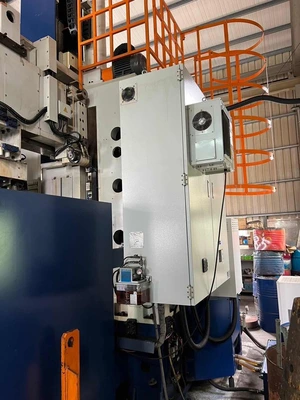

Air conditioner
Oil skimmer
Chip conveyor
Chip bucket
