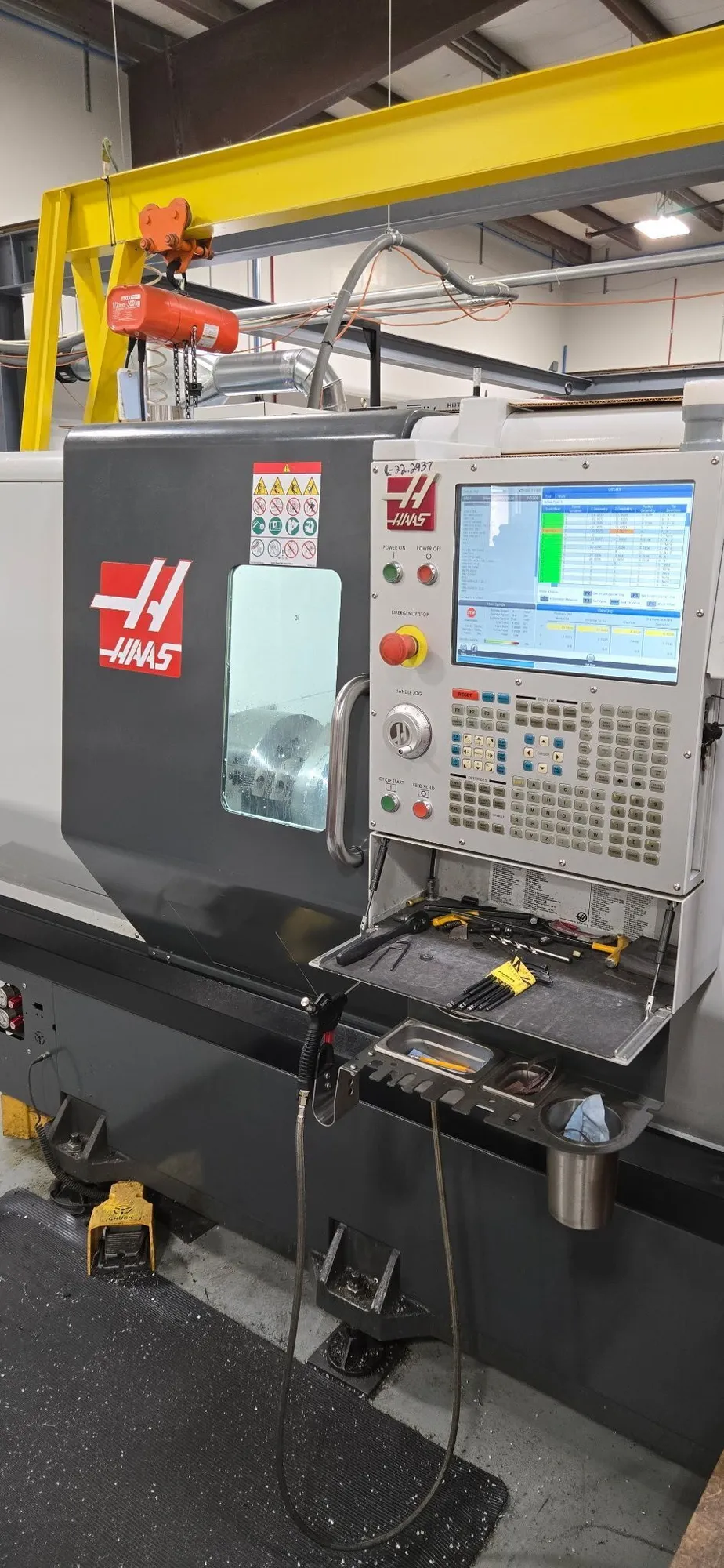

2019 Haas ST35 CNC Turning Center With Programmable Tailstock. Machine is in very good condition and can be inspected under power as needed. Machine has low hours
| Live Tooling | No | No |
| Y-Axis | No | No |
| Sub Spindle | No | No |
| Swing | 31.75" | 806.45 mm |
| Machining Length | 26" | 660.4 mm |
| # Axis | 2 | 2 |
| X Travel | 9.4" | 238.76 mm |
| Z Travel | 32.5" | 825.5 mm |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,200 RPM | 3,200 RPM |
| Turning Dia | 21" | 533.4 mm |
| Tailstock | No | No |
| Barfeed | No | No |
| Control | CNC (Haas) | CNC (Haas) |
| Weight | 14,300 Lbs | 14,300 Lbs |
Capacities S.A.E
Chuck Size 12.0 in
Max Part Swing 21.0 in
Max Cutting Length (varies with workholding) 32.5 in
Bar Capacity 4.00 in
Between Centers (max) 32.5
Travels S.A.E
X Axis 9.40 in
Z Axis 32.50 in
Feedrates S.A.E
Rapids on X 945 ipm
Rapids on Z 945 ipm
Axis Motors S.A.E
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle S.A.E METRIC
Spindle Nose A2-8
Max Rating 40.0 hp
Max Speed 3200 rpm
Max Torque 425.0 ft-lbf @ 325 rpm
Max Torque w/opt Gearbox 1400 ft-lbf @ 150 rpm
Spindle Bore ø 4.62 in
Programmable Tailstock
Chip Conveyor
Tool Presetter
